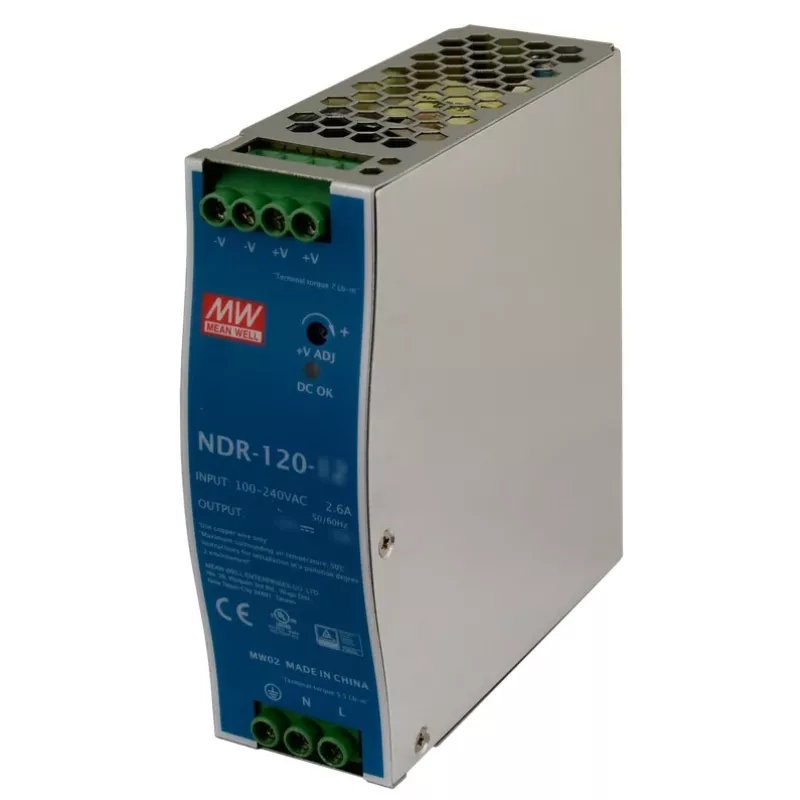

MEAN WELL DIN-kisko hakkuriteholähde NDR-120-48 48V/120W/2.5A

The MEAN WELL NDR-120-48 is a high-efficiency DIN rail switching power supply delivering 48V DC at 2.5A (120W). Designed for industrial control cabinets, it features a compact metal case, free air convection cooling, and a wide operating temperature range from -20 to +70°C. With protections against overload, over voltage, and short circuit, it ensures reliable power for automation systems, security equipment, and telecom devices.

Advantages

High efficiency up to 89% reduces energy loss and heat generation. Universal AC input (90-264VAC) allows global use. The slim 32mm width saves space on DIN rails. Built-in constant current limiting for overload protection and auto-recovery hiccup mode for short circuits enhance system safety.

Suitable for

• Industrial automation and control systems
• Security and surveillance equipment
• Telecommunication devices
• Building automation and HVAC controls

Key specifications

• Output: 48V DC, 2.5A, 120W
• Input: 90-264VAC / 127-370VDC
• Efficiency: 89%
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Operating Temperature: -20 to +70°C
• Protections: Overload, Over Voltage, Short Circuit
• Safety Standards: UL61010-1, TUV EN61010-1, EAC
• Dimensions: 32 x 124.5 x 102 mm (WxHxD)
• Weight: 0.35 kg

Recommendations

For optimal performance, ensure adequate ventilation and avoid mounting near heat sources. The output voltage can be adjusted between 48-55V via the built-in potentiometer. Use appropriate gauge wiring for the 2.5A output current.
