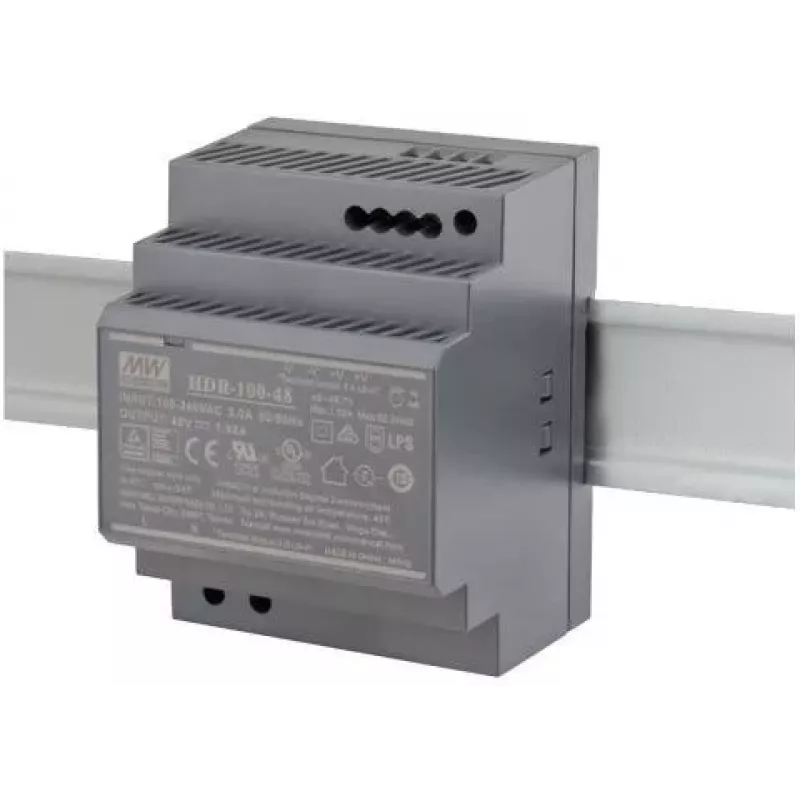

Mean Well HDR-100-48 DIN-kiskoon kytkentävirtalähde, 48 V 100 W 1,92 A

The Mean Well HDR-100-48 is a DIN rail switching power supply delivering 48 V and up to 1.92 A. It accepts a wide input range and is designed for mounting on TS35 / 7.5 or 15 DIN rails.

Key features

• Input voltage: 85-264 VAC or 120-370 VDC
• DIN rail mounting: TS35 / 7.5 or 15
• Operating temperature range: -30 to +70 °C
• No-load power consumption: <0.3 W
• Output voltage adjustable
• Protection: short circuit, overload, overvoltage
• Cooling by free air convection
• LPS compliant
• Class II insulation
• LED operation indicator
• Compliant with UL-60950-1/508/1310, EN60950-1/61558-2-16

Specifications

• Brand: Mean Well
• MPN: HDR-100-48
• Model: HDR-100-48
• Output: 48 V, 0~1.92 A
• Tolerance: ±1%
• Ripple and noise: 240 mV
• Efficiency: 0.91
• Dimensions: 70 x 90 x 54.5 mm
