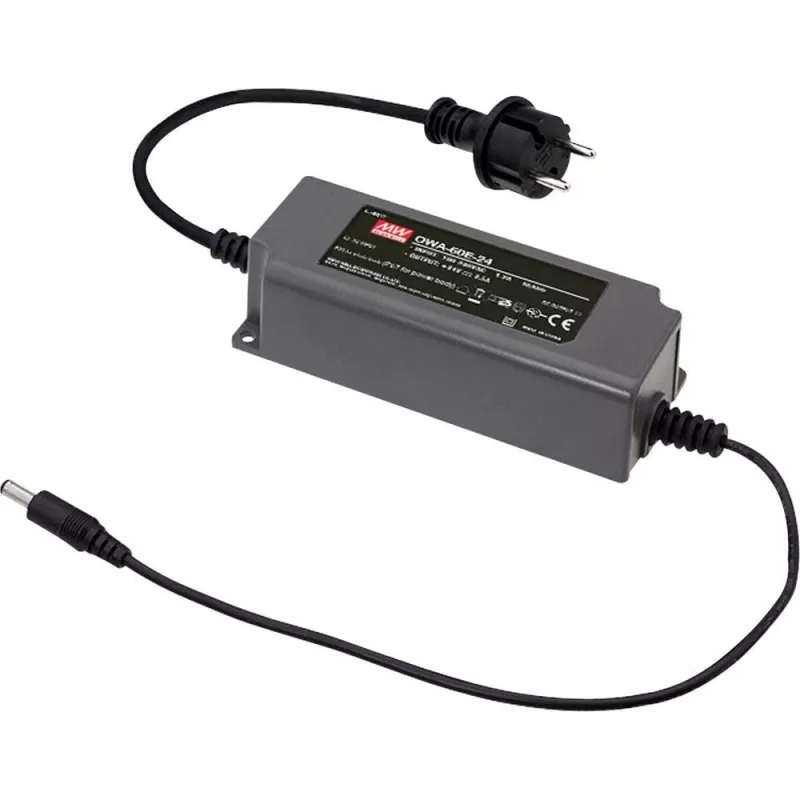

MEAN WELL OWA-60E-15 60W 15V 4A IP67 LED-ohjainvirtalähde EU-pistokkeella

Outdoor and industrial LED lighting projects often fail when power supplies lack weatherproofing or stable output. The MEAN WELL OWA-60E-15 solves this with a fully sealed IP67 enclosure and constant 15 V DC output, ensuring reliable performance even in rain, dust, or extreme temperatures.

Who is it for

This 60 W LED driver is ideal for electricians, lighting installers, and OEMs who need a durable, compact power source for LED strips, modules, or signage in outdoor or humid environments. It suits both professional and DIY projects requiring a safe, certified AC/DC adapter.

Main features

• 60 W constant voltage output at 15 V DC, 4 A
• Universal AC input: 90–264 V AC (127–370 V DC)
• IP67-rated plastic housing for dust and water immersion protection
• High efficiency up to 89% with free air convection cooling
• Comprehensive protections: short circuit, overload, over voltage, over temperature
• Wide operating temperature range: -35 °C to +70 °C
• European 2-pin AC plug (E-type) and 2-pin DC cable with bare wires
• Certified to EN61347-1, EN61347-2-13, UL8750; CE, UL, TUV, CB, EAC

Specifications

• Output power: 60 W
• Output voltage: 15 V DC
• Output current: 4 A
• Ripple & noise: 150 mVp-p
• Input voltage: 90–264 V AC / 127–370 V DC
• Efficiency: up to 89%
• IP rating: IP67
• Cooling: free air convection
• Housing: plastic
• Operating temperature: -35 °C to +70 °C
• Safety standards: EN61347-1, EN61347-2-13, UL8750
• EMC standards: EN55015, EN55032 Class B
• Dimensions: 150 x 53 x 35 mm (L x W x H)
• Weight: 0.45 kg

Tips

For best results, mount the driver in a well-ventilated area even though it is IP67 rated, and ensure the bare wire output connections are properly insulated or enclosed. Pair with 15 V LED strips or modules within the 60 W limit to avoid overload.
