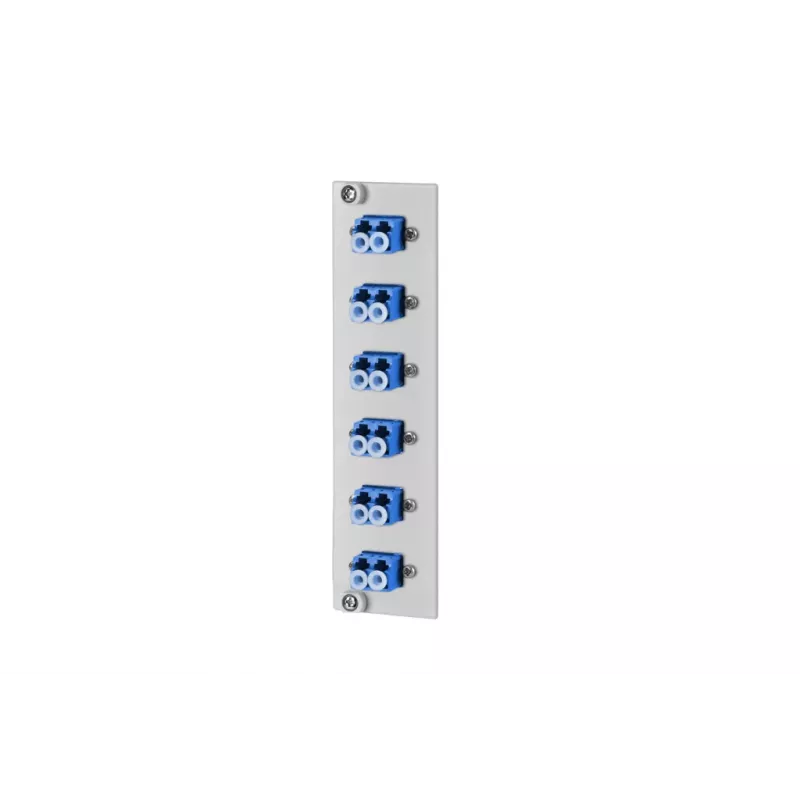

METZ BTR 15024A7406-E OpDAT REGpro etulevy 3HE 7TE 6xLC-D SM (keraaminen sininen)

In a structured cabling project for a corporate data center, the METZ OpDAT REGpro Front panel provides a clean and efficient fiber optic termination point. This 3U front panel occupies 7 rack units (TE) in a 19-inch rack and comes pre-loaded with 6 LC duplex single-mode adapters with ceramic blue sleeves, ensuring reliable connections for high-speed backbone links.

Key specifications

• Brand: METZ
• Model: BTR 15024A7406-E
• MPN: 15024A7406-E
• EAN: 4251122197550
• Type: Fiber optic patch panel front plate
• Rack units: 3U
• Width: 7 TE (rack units)
• Connectors: 6x LC-Duplex Single Mode (SM)
• Adapter sleeves: Ceramic, blue
• Product colour: Ceramic blue

Why choose it

The METZ OpDAT REGpro Front panel is engineered for high-density fiber management. Its ceramic blue adapter sleeves indicate single-mode APC (angled physical contact) performance, minimizing back reflections. The panel's compact 3U design saves rack space while providing easy access for patching and maintenance. It is compatible with standard 19-inch racks and integrates seamlessly with METZ OpDAT REGpro distribution systems.

Ideal use cases

• Data center backbone cabling
• Telecommunications rooms and server rooms
• Enterprise network fiber distribution
• FTTx (Fiber to the x) applications
• High-speed LAN/WAN connections

Good to know

The panel is part of the METZ OpDAT REGpro series, designed for professional network installations. It supports single-mode fiber with LC duplex connectors, which are widely used in modern high-bandwidth networks. The ceramic ferrules ensure precise alignment and durability over thousands of mating cycles. Installation is straightforward with standard rack mounting hardware.
