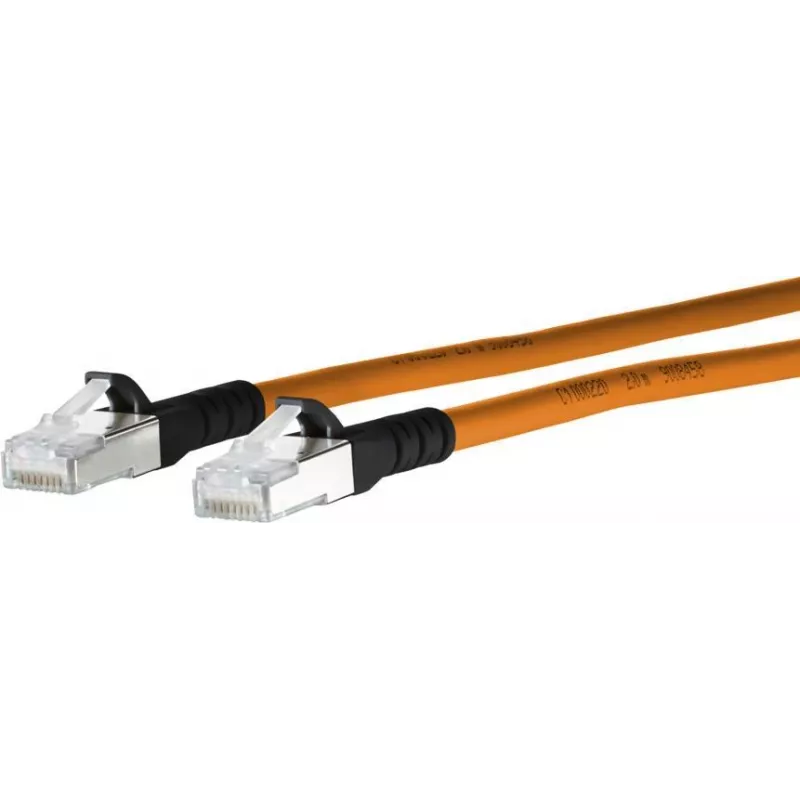

METZ CONNECT 130845A001-E verkkokaapeli 10 m Cat6a SF/UTP (S-FTP) RJ45 oranssi

The METZ CONNECT 130845A001-E is a high-performance Cat6a network patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 10 meters and SF/UTP (S-FTP) shielding, it provides excellent protection against electromagnetic interference, making it ideal for data centers, office networks, and demanding LAN environments.

Advantages

This cable supports data transfer rates up to 10 Gbps and a bandwidth of 500 MHz, ensuring fast and stable network performance. The SF/UTP shielding combines an overall braid screen with individual foil screens per pair, minimizing crosstalk and external noise. It is also Power over Ethernet (PoE) compatible, allowing power and data transmission over a single cable.

Suitable for

• Data centers and server rooms
• Office and enterprise networks
• 10GBASE-T Ethernet applications
• High-speed LAN connections

Key specifications

• Cable Type: Network Patch Cable
• Category: Cat6a (Category 6a)
• Length: 10 meters
• Shielding: SF/UTP (S-FTP)
• Connectors: RJ45 (8P8C) on both ends
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568-C.2
• Conductor Material: Copper (Stranded, AWG 26/7)
• Jacket Material: PVC
• Color: Orange
• PoE Support: Yes
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance in high-speed networks, pair this cable with Cat6a compatible switches and patch panels. Ensure proper cable management to maintain signal integrity.
