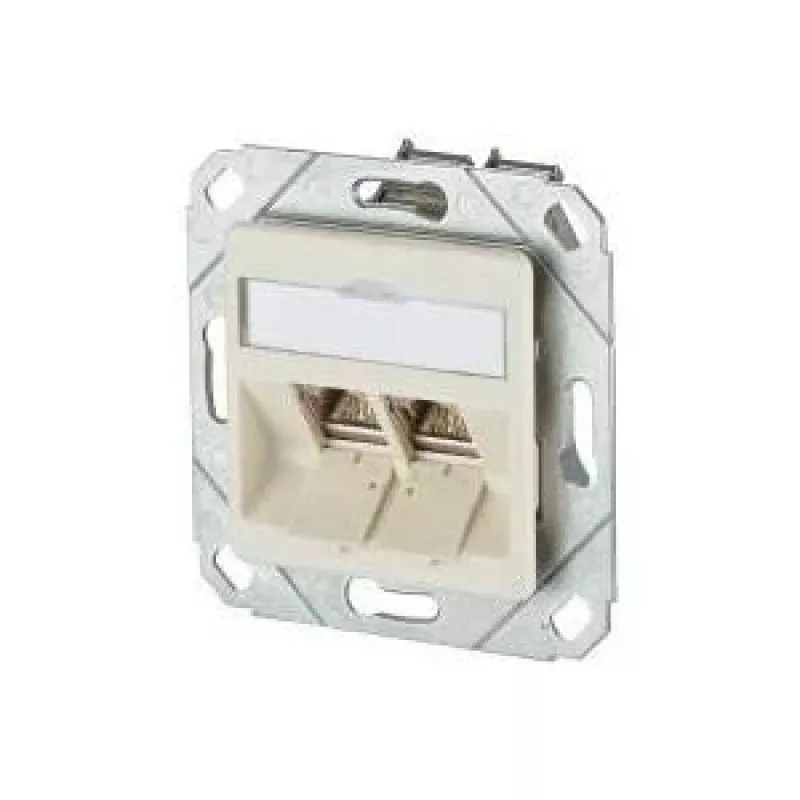

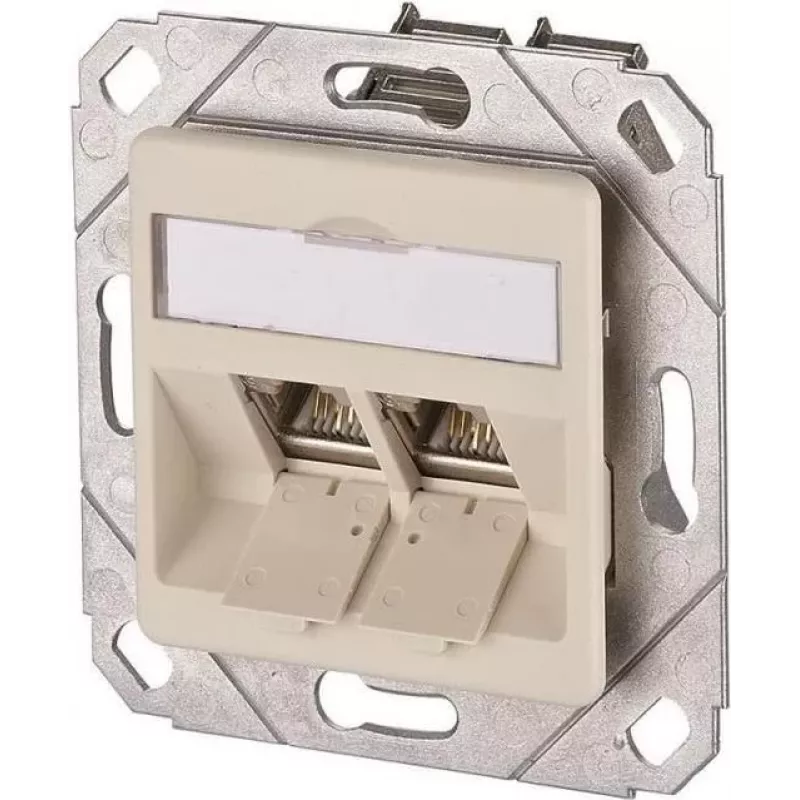

METZ CONNECT BTR E-DAT modul 8/8(8) UPk uppoasennettava datapistorasia, 2x RJ-45, CAT 6e, suojattu, helmenvalkoinen RAL 1013 1309121101-E

In office fit-outs and structured cabling projects, network installers often need a reliable flush-mounted outlet that supports high-speed data and Power over Ethernet without compromising on aesthetics. The METZ CONNECT BTR E-DAT modul 8/8(8) UPk answers that call with a complete, pre-assembled unit featuring two shielded RJ-45 jacks in a clean pearl white finish (RAL 1013).

Key specifications

• Two RJ-45 ports, 8P8C, Category 6e performance
• Shielded design for FTP/STP cabling systems
• Supports up to 10 Gigabit Ethernet (10GBASE-T)
• PoE ready: PoE, PoE+, and 4PPoE (PoE++)
• Flush-mounted (Unterputz) complete unit (UPk)
• Tool-less or LSA-Plus compatible IDC termination
• Gold-plated contacts for reliable connectivity
• Complies with ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

This outlet combines performance and convenience. The shielded metal frame and gold-plated contacts ensure signal integrity even in electrically noisy environments, while the tool-less termination option speeds up installation. Its pearl white front plate blends seamlessly into modern interiors, and the complete-unit design means no separate mounting frame is needed.

Ideal use cases

• Office workstations requiring dual network connections
• Conference rooms with high-bandwidth video conferencing
• Industrial control panels needing robust PoE devices
• Retail point-of-sale terminals with peripherals
• Educational facilities with dense network access points

Good to know

The outlet supports both TIA/EIA 568A and 568B wiring schemes, making it compatible with existing installations. Its flame-retardant housing (UL 94-V0) adds safety in commercial buildings. For PoE applications, the 4PPoE support ensures future-proofing for high-power devices like pan-tilt-zoom cameras and LED lighting.
