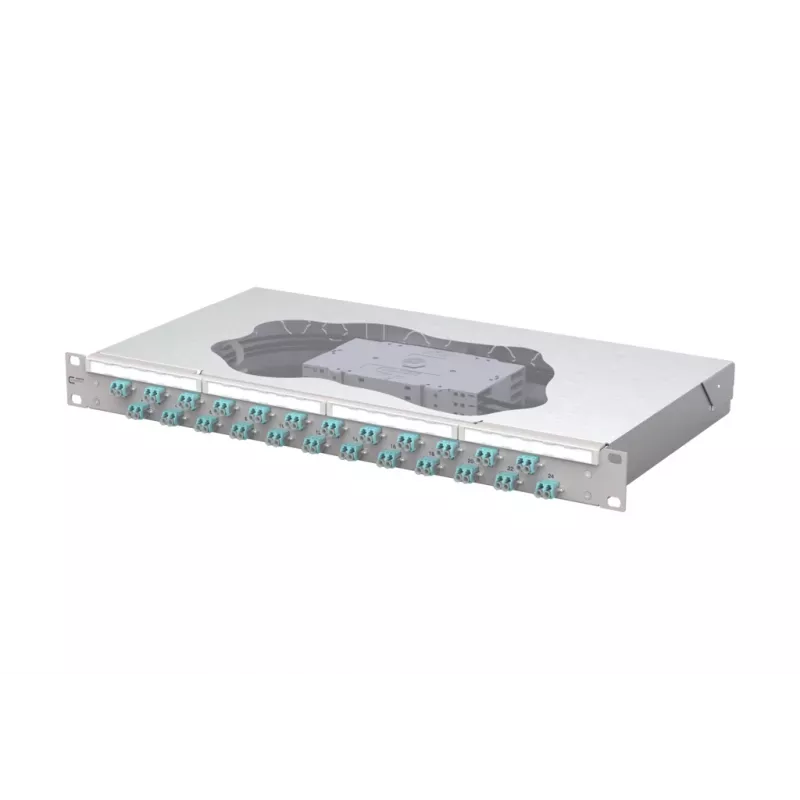

METZ CONNECT kuitujatko-patch-paneeli 24xLC-Duplex OM3 1U 19 tuuman 1504557724-E

Fiber optic splice patch panel with 24 LC-Duplex ports, pre-loaded with OM3 multimode adapters, for high-density 19-inch rack installations. The panel occupies 1U and provides a reliable termination point for splicing pigtails to incoming fiber cables.

Advantages

Integrated splice management supports two standard splice cassettes for organized fiber routing. The steel housing with light grey finish (RAL 7035) ensures durability, while ceramic adapter sleeves offer precise alignment and low insertion loss. Front panel ports are numbered 1-24 for easy identification, and rear cable entry with strain relief protects connections.

Suitable for

• Data centers and enterprise networks requiring OM3 multimode fiber distribution
• 19-inch rack or cabinet installations where space is limited
• Terminating pre-terminated trunk cables via splicing

Key specifications

• Connector type: LC-Duplex
• Number of ports: 24
• Fiber mode: Multimode OM3 (50/125 µm)
• Termination method: Splice
• Mounting: 19-inch rack, 1U height
• Housing material: Steel, light grey (RAL 7035)
• Splice tray capacity: 2 standard cassettes
• Adapter sleeve material: Ceramic
• Operating temperature: -10 to +60 °C

Recommendations

Pair with OM3-compatible LC pigtails and splice cassettes for a complete termination solution. Verify rack depth to accommodate splice trays and cable bend radius.
