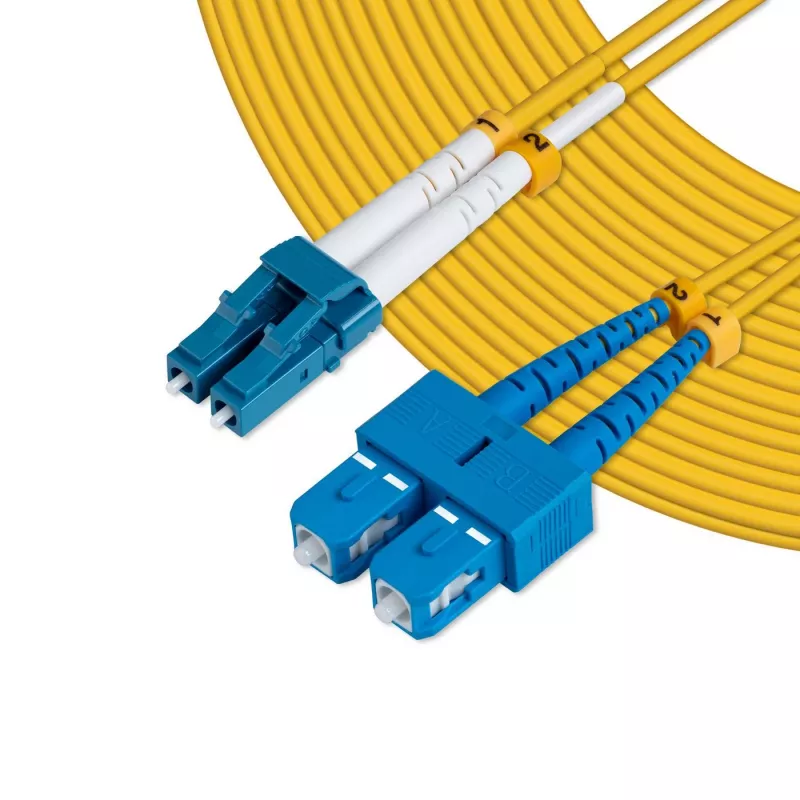

Microconnect FIB421001 InfiniBand/kuituoptinen kaapeli 1 m LC SC keltainen

The Microconnect FIB421001 is a 1 m single-mode (OS2) fibre optic patch cable with LC to SC connectors and a yellow LSZH jacket. Designed for enterprise networks, telecom rooms, server farms and cloud storage networks, this cable supports full-duplex transmission and is intended for connecting 1G/10G/40G/100G Ethernet links.

Advantages

The cable uses OS2 single-mode fibre with a 9 µm core diameter, enabling long-distance data transport — up to 10 km at 1310 nm and up to 40 km at 1550 nm. The LSZH jacket reduces smoke and toxic gas emission in case of fire and the LC–SC connector combination offers compatibility with common networking equipment. The product follows industry standards (IEC, EIA/TIA, Telcordia) for reliable performance.

Suitable for

• Data centres and server rooms
• Enterprise network backbones
• Telecom equipment racks and patch panels
• Cloud storage and high-bandwidth links (1G/10G/40G/100G)

Key specifications

• Length: 1 m
• Fibre type: Single-mode OS2
• Core diameter: 9 µm

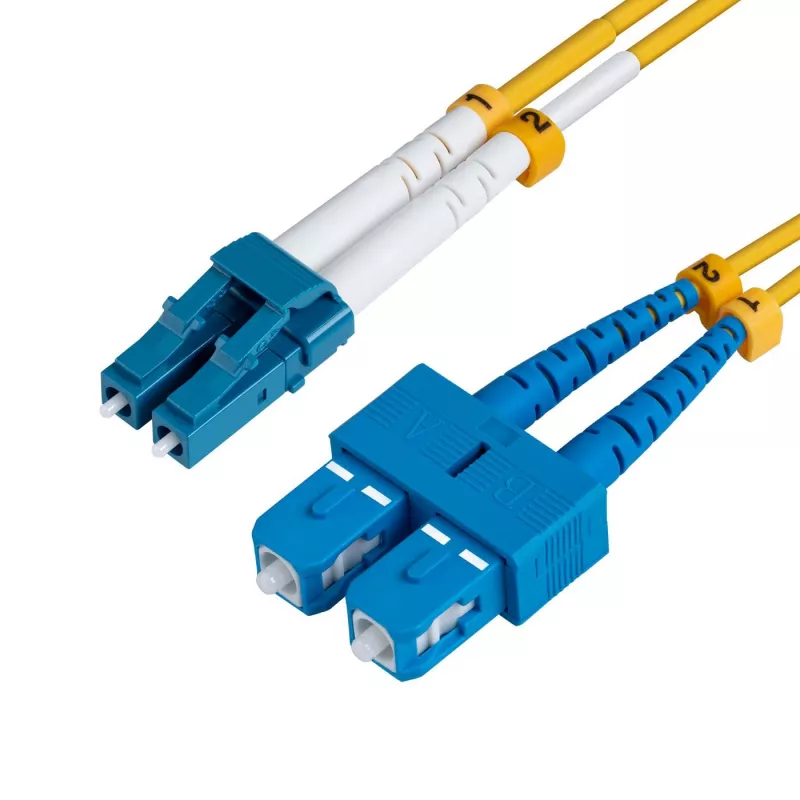

• Connectors: LC (one end) to SC (other end)
• Cable jacket: LSZH
• Colour: Yellow
• Weight: 0.02 kg

How to use

Inspect connectors and ports for dust before installation and clean with proper fibre cleaning tools if necessary. Insert the LC connector into the LC port and the SC connector into the SC port until they click or seat securely. Route the cable to avoid tight bends and mechanical stress; maintain bend radius recommendations for single-mode fibre. For long runs, verify link performance with appropriate optical test equipment.

Recommendations

Use this LC–SC OS2 patch cable for short interconnects within racks or between adjacent equipment and rely on its OS2 specification for longer span links within the stated wavelength and distance limits. Store coiled without sharp bends and handle connectors by the boot to avoid contamination or damage.
