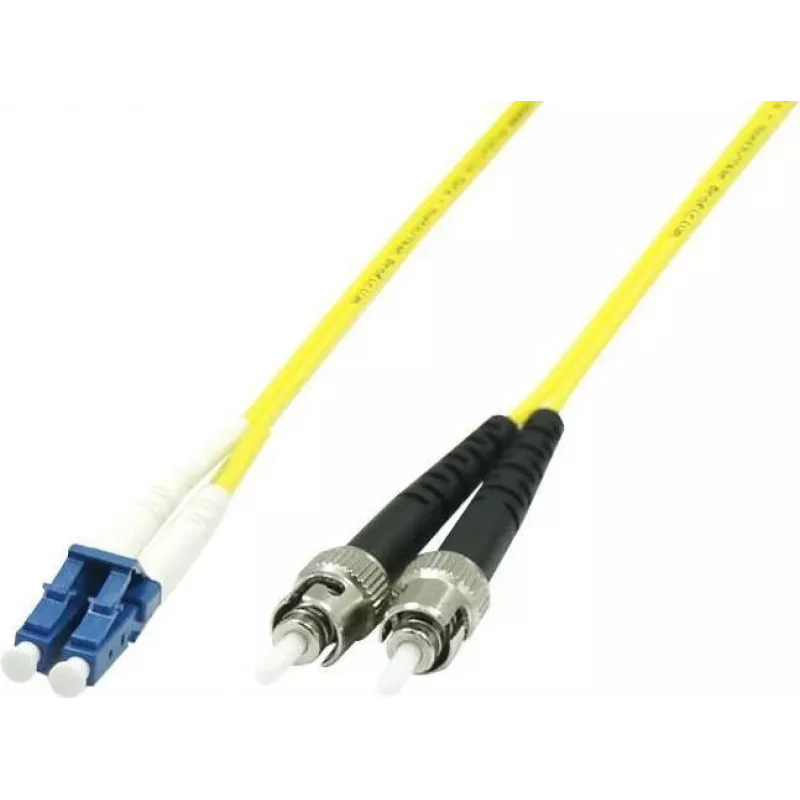

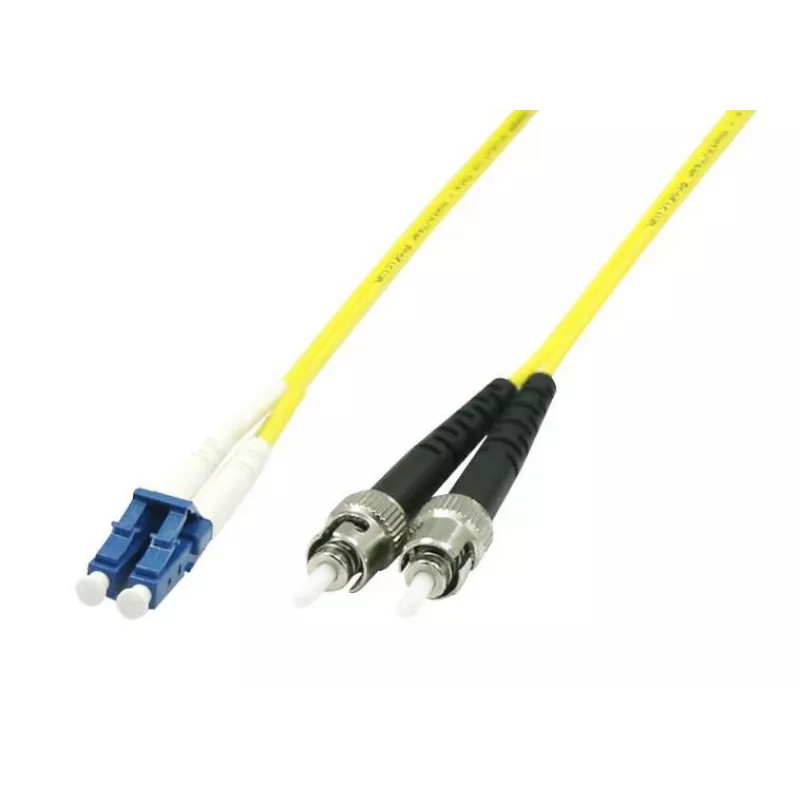

MicroConnect LC/PC - ST/PC 10m 9/125 yksimuoto duplex-verkkokaapeli

In a busy data center, a network engineer needs to connect a core switch with LC ports to a patch panel with ST ports. This 10-meter single-mode duplex fiber patch cable from MicroConnect makes that link instantly, ensuring a reliable, low-loss connection for long-distance data transmission.

Key specifications

• Connector A: LC/PC male
• Connector B: ST/PC male
• Fiber type: 9/125 µm single-mode (SM)
• Cable length: 10 m
• Number of fibers: 2 (duplex)
• Insertion loss: < 0.3 dB (typical)
• Return loss: > 50 dB (typical)
• Wavelengths: 1310 nm, 1550 nm
• Attenuation: < 0.35 dB/km @ 1310 nm, < 0.25 dB/km @ 1550 nm
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, CE

Why choose it

This cable delivers dependable performance for high-speed networks. The single-mode fiber supports long distances and high bandwidth, while the PC polish on both connectors minimizes back reflections. The duplex design provides two fibers for bidirectional communication, making it ideal for critical links.

Ideal use cases

• Data center interconnects between switches and patch panels
• Telecommunications backbone links
• Enterprise LAN and SAN connections
• Long-distance fiber runs up to several kilometers

Good to know

The cable is built with a standard 3.0mm outer diameter jacket for durability and easy routing. It comes with dust caps on connectors to protect them during storage. The 10-meter length offers flexibility for rack-to-rack or cross-connect applications.
