OMNITRONIC XNG-212A 2-tie aktiivi-DSP-kaiutin 12" 800W Peak 11038074

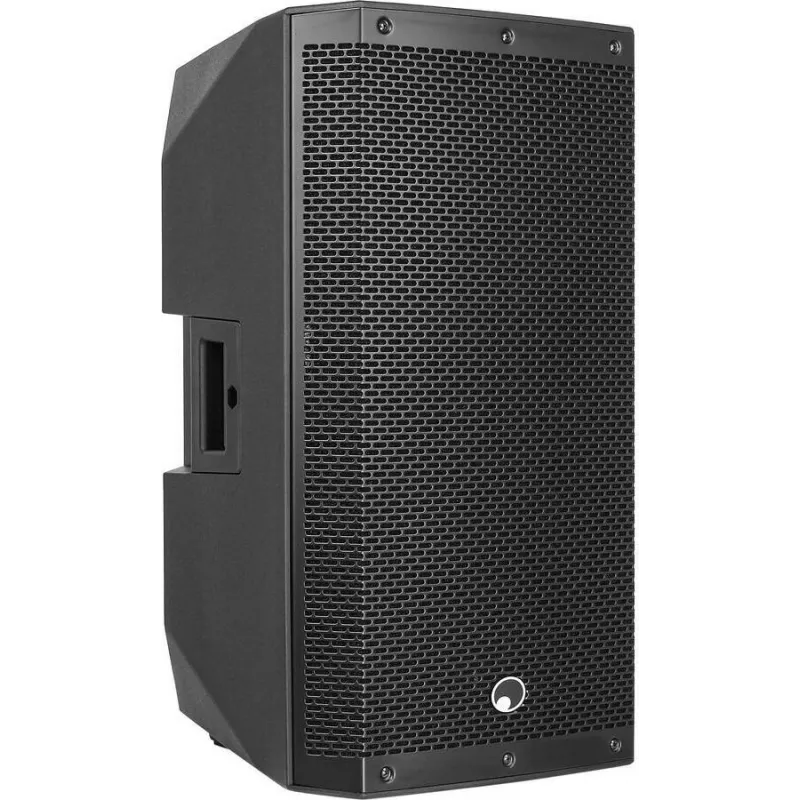

Getting clear, powerful sound into a live venue or event space often means wrestling with bulky passive speaker systems and external amplifiers. The OMNITRONIC XNG-212A solves that headache with a self-contained 2-way active loudspeaker that packs a 12" woofer, a 1.75" compression driver, and a bi-amped Class D amplifier into a rugged plywood cabinet. Built-in DSP with four presets lets you tune the speaker for music, live vocals, speech, or DJ use in seconds, so you spend less time on setup and more time on the performance.

Who is it for

This speaker is made for mobile DJs, small bands, event technicians, and houses of worship that need reliable full-range sound without a rack of extra gear. It works as a main PA on a speaker pole, a floor monitor, or a flown cabinet thanks to its 35 mm pole flange and M8 rigging points. If you need punchy lows, clear highs, and simple control, the XNG-212A fits the bill.

Main features

• 2-way active full-range design with 12" woofer and 1.75" compression driver
• Bi-amp Class D amplification: 400 W RMS, 800 W peak total output
• Onboard DSP with 4 presets (Music, Live, Speech, DJ), 3-band EQ, low-cut filter, and delay
• Maximum SPL of 128 dB for high-output applications
• Frequency response from 50 Hz to 20 kHz for full-range coverage
• 90° x 60° dispersion for wide, even coverage
• Two combo XLR/6.3 mm jack inputs (mic/line) plus stereo RCA input
• XLR parallel link output for daisy-chaining multiple speakers
• Rugged plywood enclosure with scratch-resistant lacquer finish
• 35 mm pole flange and M8 flying points for flexible mounting
• Protection circuits against overload, short circuit, and limiting

Specifications

• Speaker type: 2-way active full-range loudspeaker
• Woofer: 12" (30 cm)
• Tweeter: 1.75" (4.4 cm) compression driver
• Amplifier: Bi-amp, Class D
• RMS power: 400 W (350 W LF + 50 W HF)
• Peak power: 800 W (700 W LF + 100 W HF)
• Frequency response: 50 Hz - 20 kHz
• Max SPL: 128 dB
• Dispersion: 90° x 60° (H x V)
• Crossover frequency: 2.5 kHz
• Inputs: 2 x XLR/6.3 mm jack combo (Mic/Line), 1 x RCA stereo
• Outputs: 1 x XLR parallel (Link)
• Housing material: Plywood with scratch-resistant lacquer
• Mounting: 35 mm pole flange, M8 flying points
• Protection: Overload, short circuit, limiter
• Power supply: 230 V AC, 50 Hz
• Power consumption: 150 W
• Colour: Black

Tips

Use the DSP presets to quickly adapt the speaker to different content: switch to Speech for clear announcements, Live for acoustic sets, or DJ for bass-heavy playback. For larger events, link multiple XNG-212A units via the XLR output and adjust the delay to align sound across the venue. Always engage the low-cut filter when pairing with a subwoofer to reduce muddiness and protect the woofer from excessive excursion.
