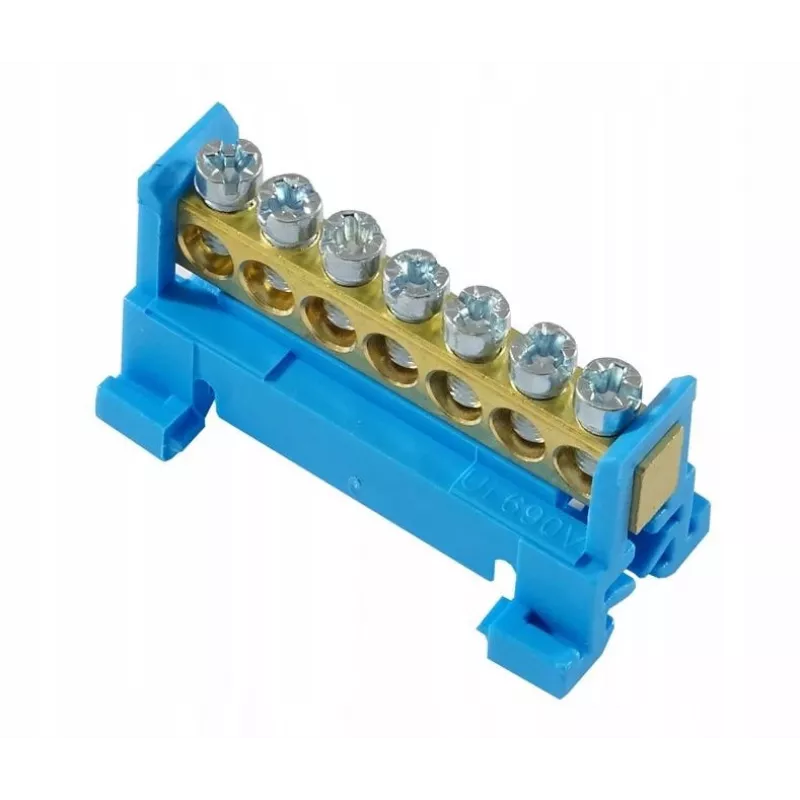

PAWBOL E.4023 matala riviliitin 7-napainen sininen 4mm² 24A 450V

In control cabinets and junction boxes, electricians need a reliable way to connect multiple wires safely. The PAWBOL E.4023 low-profile terminal strip offers seven screw terminals in a compact blue polyamide housing, making it a practical choice for distribution boards, industrial controls, and building installations.

Key specifications

• Number of poles: 7
• Colour: Blue
• Insulation material: Polyamide (PA6)
• Conductor material: Brass
• Rated voltage: 450 V
• Rated current: 24 A
• Max conductor cross-section: 4 mm² rigid, 2.5 mm² flexible
• Min conductor cross-section: 0.5 mm²
• Operating temperature: -25°C to +100°C
• Terminal type: Screw terminal
• Base profile: Low profile
• Certifications: CE

Why choose it

The low-profile design saves space in crowded enclosures, while the durable PA6 housing withstands temperatures up to 100°C continuously and 160°C for short periods. Brass conductors ensure low contact resistance and reliable current flow, and the screw terminals accept a wide range of wire sizes from 0.5 mm² to 4 mm².

Ideal use cases

• Connecting wires in distribution boards and control panels
• Industrial machinery and automation systems
• Building electrical installations
• Low-voltage signal and power distribution

Good to know

The terminal strip is CE certified and designed for professional use. Its blue colour aids identification in complex wiring setups. For best results, use a suitable screwdriver to tighten terminals to the recommended torque.
