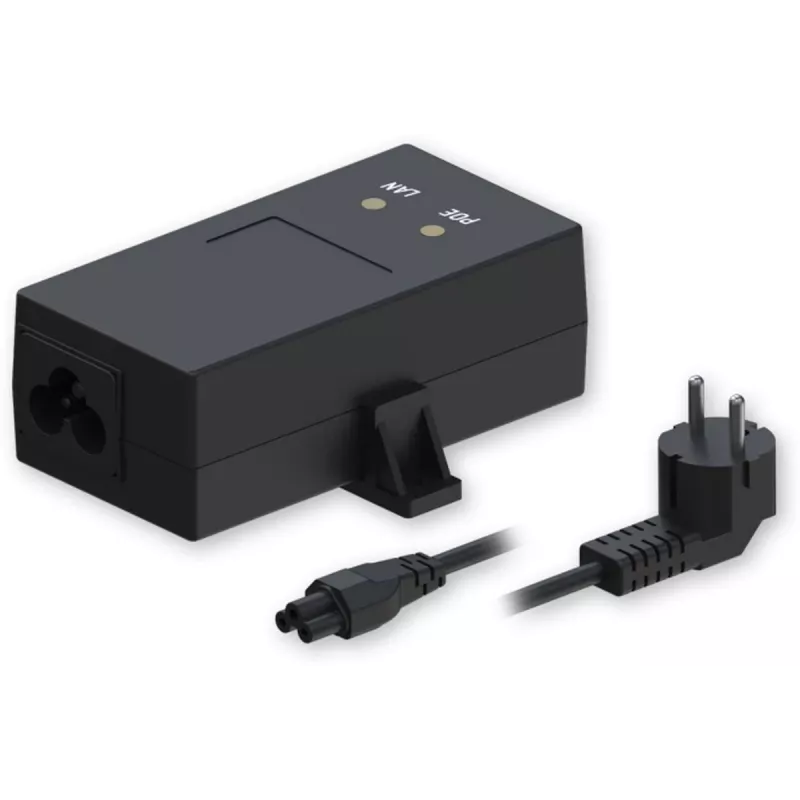

PoE-injektori TELTONIKA PR324EUB 24W PoE Power Injector yksittäiselle Ethernet-laitteelle

TELTONIKA PR324EUB is a single-port gigabit passive PoE injector that delivers up to 24 W of power over an Ethernet cable to a single network device. It provides separate power input and data input/output ports to add PoE capability where a network switch does not supply PoE, enabling devices to be installed without a nearby mains outlet.

Advantages

The injector supports gigabit Ethernet data rates while supplying up to 24 W of power, allowing high-speed connectivity and power delivery over a single cable. Its inline design with separate power and network connectors simplifies installation and reduces the need for additional cabling or local power sources. The device is compact and intended for easy integration into existing network setups.

Suitable for

• Wireless access points
• VoIP phones
• IP cameras and surveillance devices
• Other single-port network devices requiring PoE

Key specifications

• Power output: up to 24 W over Ethernet
• Ethernet speed: Gigabit (1000 Mbps)
• Ports: one data in (network) port and one PoE out port
• PoE type: passive PoE injector
• Form factor: compact inline injector for single-device use

How to use

Connect the network cable from your switch or router to the injector's data input port and connect the injector's PoE output to the powered device using a compatible Ethernet cable. Plug the injector into a suitable AC power source. Verify that the powered device receives both data and power; no configuration on the network device is required for basic operation.

Recommendations

Use appropriate Ethernet cables rated for gigabit speeds and within recommended cable length limits for PoE delivery. Ensure the powered device accepts passive PoE at the injector's voltage and power level. For permanent installations or outdoor deployments, follow local safety standards and consider using weatherproof enclosures and surge protection.
