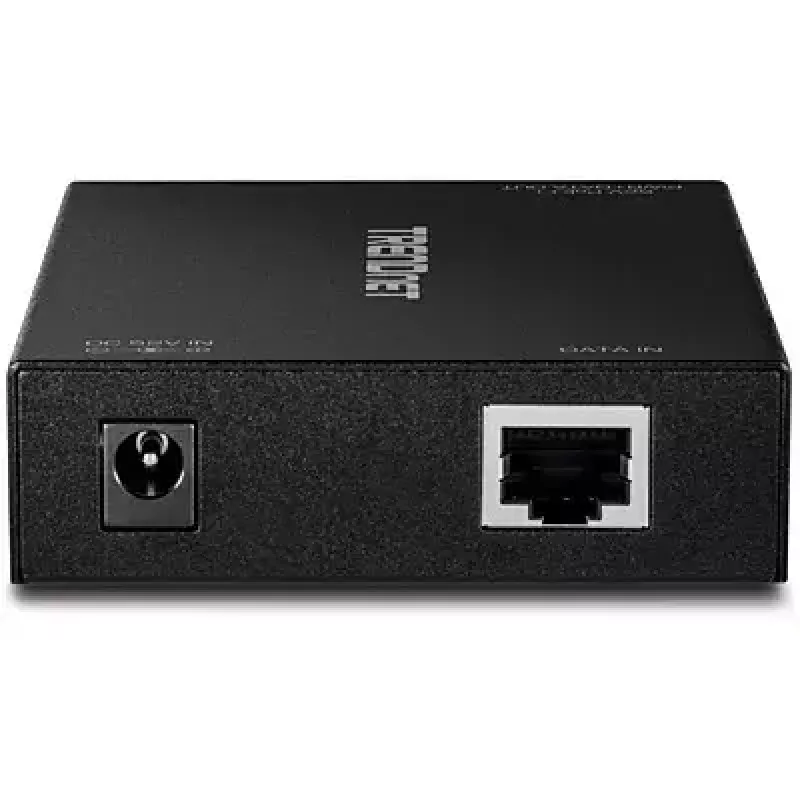

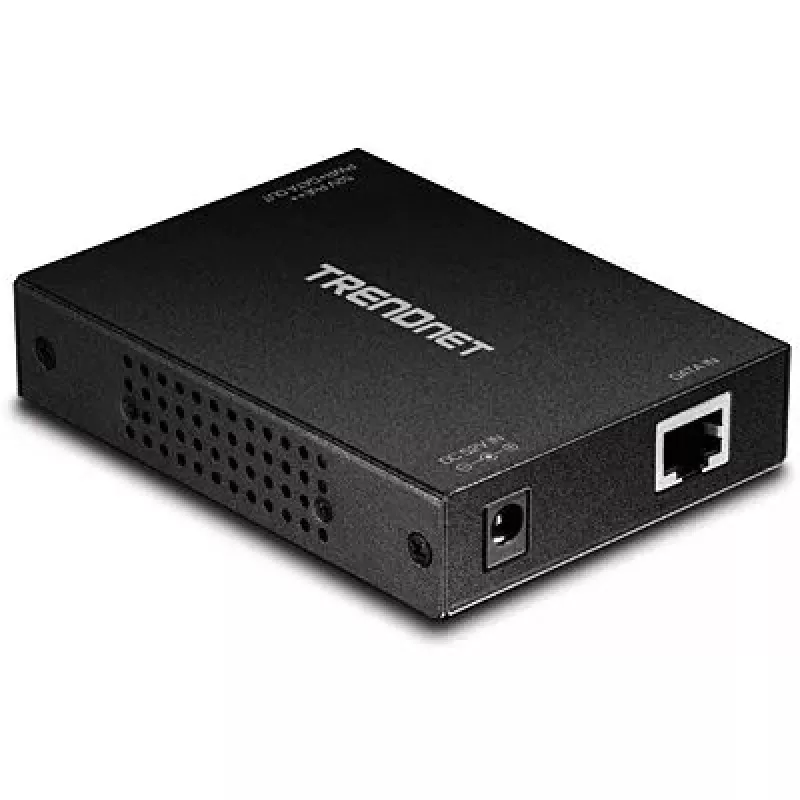

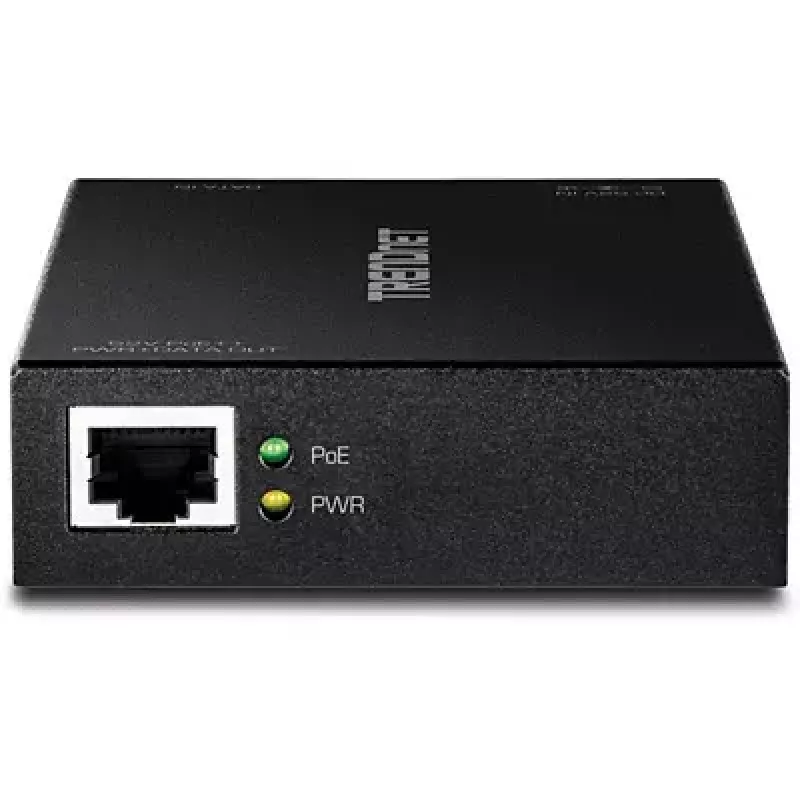

PoE-sovitin Trendnet TPE-117GI

TRENDnet TPE-117GI Gigabit Ultra PoE+ Injector combines electrical power with a Gigabit network connection to provide both data and power over a single Ethernet cable. The injector supports Gigabit Ethernet speeds (10/100/1000 Mbps) and is compatible with IEEE standards including 802.3bt, 802.3at (PoE+) and 802.3af. Its compact, lightweight design and broad input voltage range (100–240 V, 50/60 Hz) make it suitable for adding PoE capabilities to existing non‑PoE switches in deployments of access points and IP cameras.

Advantages

The Trendnet TPE-117GI automatically senses connected devices and delivers the appropriate wattage for Ultra PoE and PoE+ equipment, simplifying installation and reducing the need for separate power supplies. It supports full Gigabit data rates while supplying power, is FCC and CE certified, and has a small footprint for convenient placement near network devices.

Suitable for

• Powering PoE+ and Ultra PoE access points
• Supplying power to PoE IP surveillance cameras
• Adding PoE capability to ports on non‑PoE Gigabit switches
• Small office and remote network device installations

Key specifications

• Model: TPE-117GI
• Data rates: 10/100/1000 Mbps (Gigabit Ethernet)
• PoE standards: IEEE 802.3bt, 802.3at, 802.3af
• Input voltage/frequency: 100–240 V, 50/60 Hz
• Dimensions: 120 x 75 x 22 mm
• Weight: 0.185 kg
• Colour: Black
• Certifications: FCC, CE

How to use

Connect the injector's network input to an available port on a non‑PoE Gigabit switch and connect the PoE output to the Ethernet port of the target device (access point or IP camera). Plug the injector into a mains outlet (100–240 V, 50/60 Hz). The unit will auto-sense the connected device and deliver the appropriate PoE/PoE+/Ultra PoE power while maintaining Gigabit data transmission.

Recommendations

Place the injector close to the powered device to minimize cable runs and ensure the power rating of the connected device matches the PoE class supported. Do not use in wet or excessively dusty environments and follow local electrical codes when installing.
