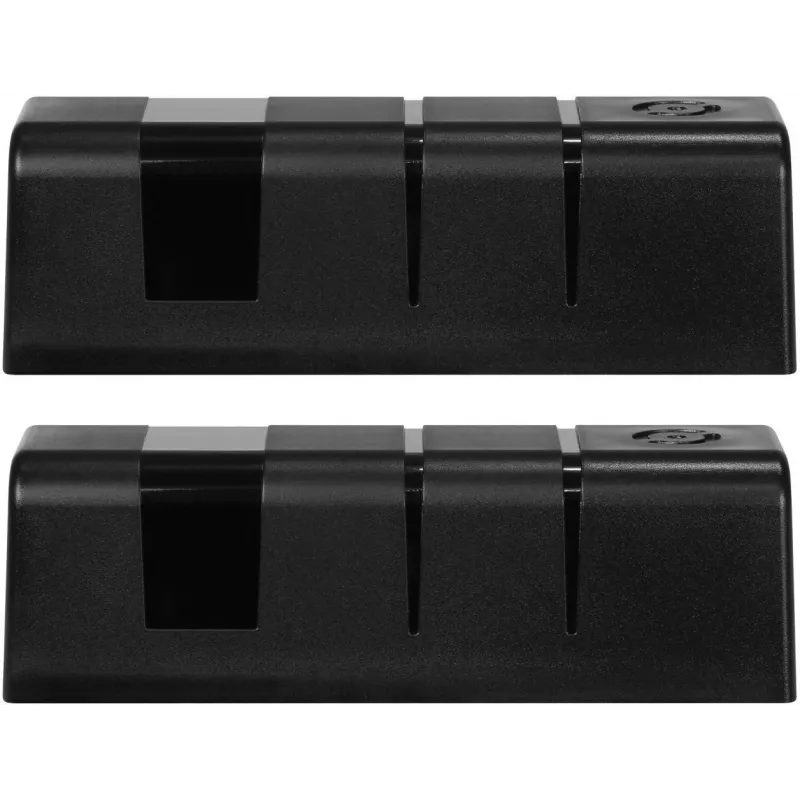

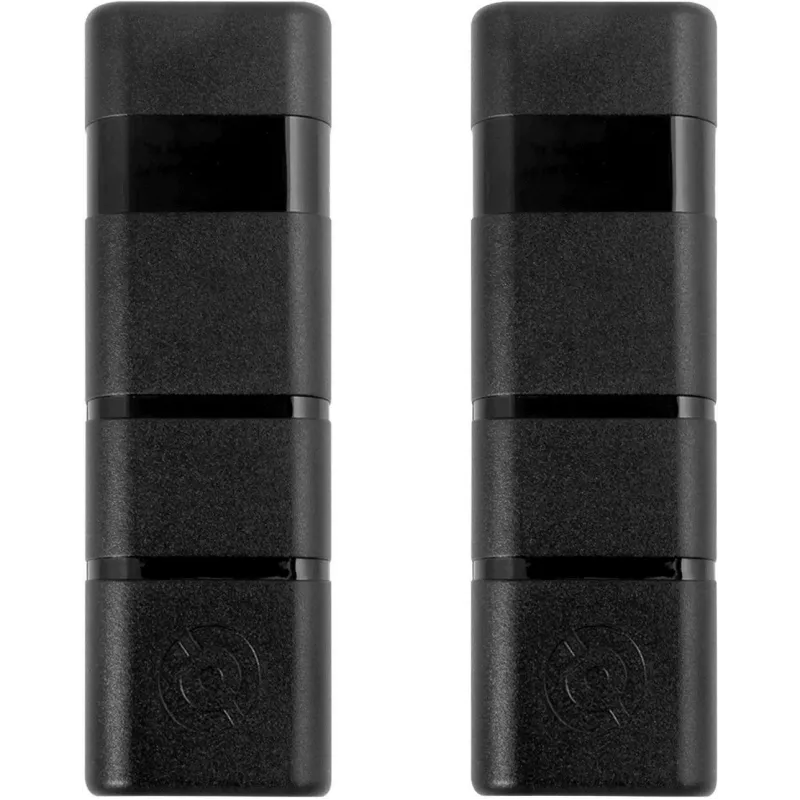

Proxima PMBH fotoelektriset turvasensorit (H-Bus) Hormann-porteille

The Proxima PMBH is a pair of photoelectric safety sensors (photocells) designed for use with Hormann gate and garage door operators. These sensors utilize modulated infrared technology and communicate via the Hormann H-Bus system, ensuring reliable obstacle detection for automated gates and doors.

Advantages

Compatible with a wide range of Hormann operators including SupraMatic, ProMatic Series 3/4, LineaMatic, RotaMatic, and VersaMatic. The H-Bus integration simplifies wiring and provides a clean installation. With a detection range of up to 8 meters and a fast response time of less than 50 ms, these sensors offer robust safety performance. The IP54 rating ensures protection against dust and water splashes, making them suitable for outdoor use.

Suitable for

• Hormann automated garage doors and gates
• Obstacle detection for residential and light commercial applications
• Surface mount installations on gate posts or walls

Key specifications

• Product Type: Photoelectric Safety Sensors (Photocells)
• Compatibility: Hormann gate and garage door operators (SupraMatic, ProMatic Series 3/4, LineaMatic, RotaMatic, VersaMatic)
• Bus System: Hormann H-Bus
• Sensor Technology: Modulated Infrared
• Detection Range (Max): 8 meters
• Power Supply: 24V DC (via H-Bus)
• Output Type: Digital H-Bus signal
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C
• Mounting Type: Surface Mount
• Components: Transmitter (TX) and Receiver (RX) pair
• Current Consumption: Approx. 25 mA (per pair)
• Housing Material: UV-resistant ABS Plastic
• Response Time: < 50 ms
• Light Source: Infrared LED
• Beam Type: Pulsed
• Application: Obstacle detection for automated gates and doors

Recommendations

For optimal safety, install the sensors at a height of 50-60 cm above ground level and ensure the infrared beam is unobstructed. Pair with compatible Hormann control boards for seamless integration.
