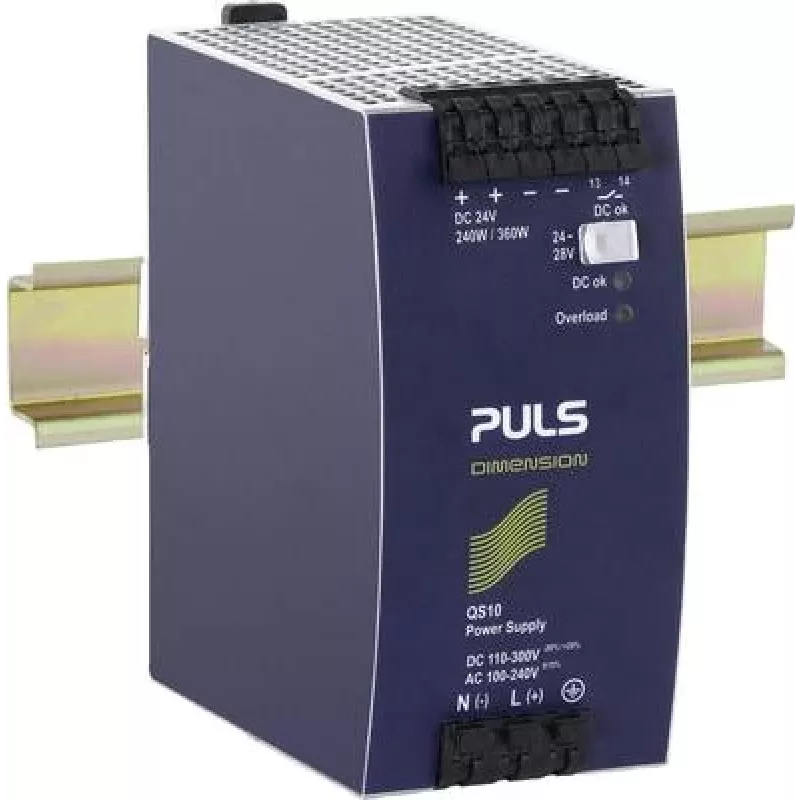

PULS QS10.241-D1 DIN-kiskovirtalähde 24 V/DC 10 A 240 W

DIN rail power supply unit delivering 24 V/DC at 10 A with 240 W output power. The QS10.241-D1 features high efficiency of 94.0% and a wide operating temperature range from -25°C to +70°C.

Advantages

High efficiency reduces energy consumption and heat generation. Adjustable output voltage from 24 to 28 V/DC allows flexibility for various applications. Robust design with overload, short-circuit, overvoltage, and overtemperature protection ensures reliable operation.

Suitable for

• Industrial automation systems
• Control panels
• Machinery requiring stable 24 V/DC power

Key specifications

• Output: 24 V/DC, 10 A, 240 W
• Input: 100-240 V/AC auto-select, 110-150 V/DC
• Efficiency: 94.0%
• Mounting: DIN rail TS35/7.5 or TS35/15
• Operating temperature: -25°C to +70°C
• Protection: overload, short-circuit, overvoltage, overtemperature
• Ripple & noise: <50 mVpp
• Hold-up time: >20 ms at 120/230 VAC
• Connection: screw terminals
• MTBF: >1,000,000 hours (SN 29500 @ 40°C)

Recommendations

Ideal for demanding industrial environments where reliable 24 V/DC power is critical. Ensure proper ventilation for optimal performance.
