Pulsar AWO000 hälytinkotelo CA-4/CA-5/CA-6

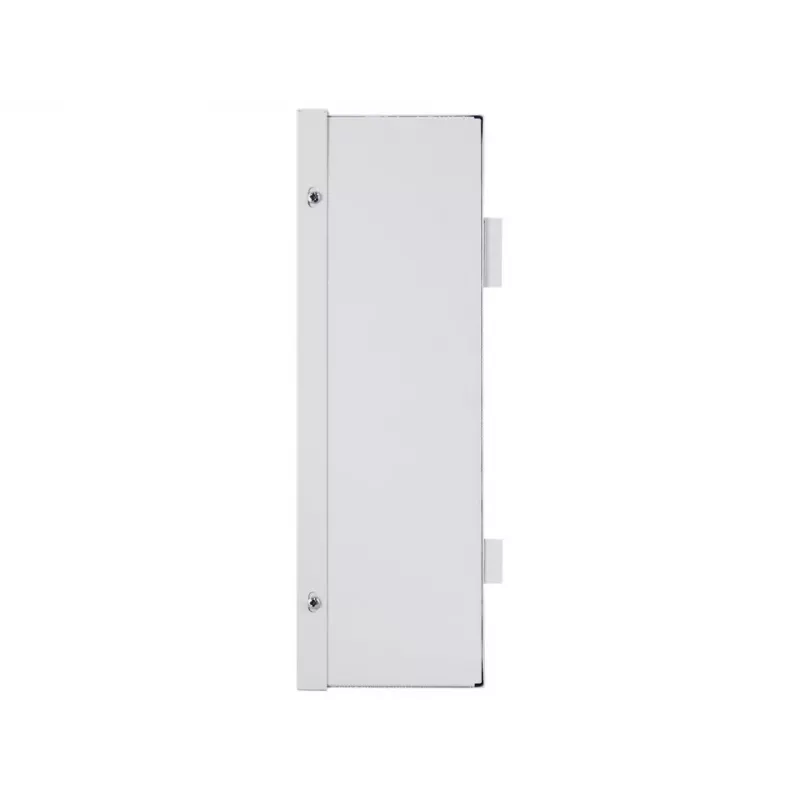

The Pulsar AWO000 is an alarm enclosure designed for use with CA-4, CA-5, and CA-6 systems. It provides a secure housing with tamper protection and space for a backup battery.

Key features

• Tamper protection: 1 microswitch (enclosure opening), 0.5A@50V/DC max, NC contacts
• Battery space: 7Ah/12V lead-acid dry (SLA)
• AC/AC power supply: TRP 20VA/16V/18V
• Power supply voltage: 230V/AC, 50Hz
• Output voltage under load: 18V/1A, 16V/1.2A
• Closing: screwed, self-tapping screw x 4
• Notes: possibility of lock mounting, has a distance from wall (base) of 8mm
• Certificates, declarations: RoHS

Specifications

• Brand: Pulsar
• MPN: AWO000
• Dimensions: W=250, H=250, D=88, W1=255, H1=255, D1=80mm, D2=14 [mm, +/-2]
• Net/gross weight: 1.95 / 2.10 [kg]
