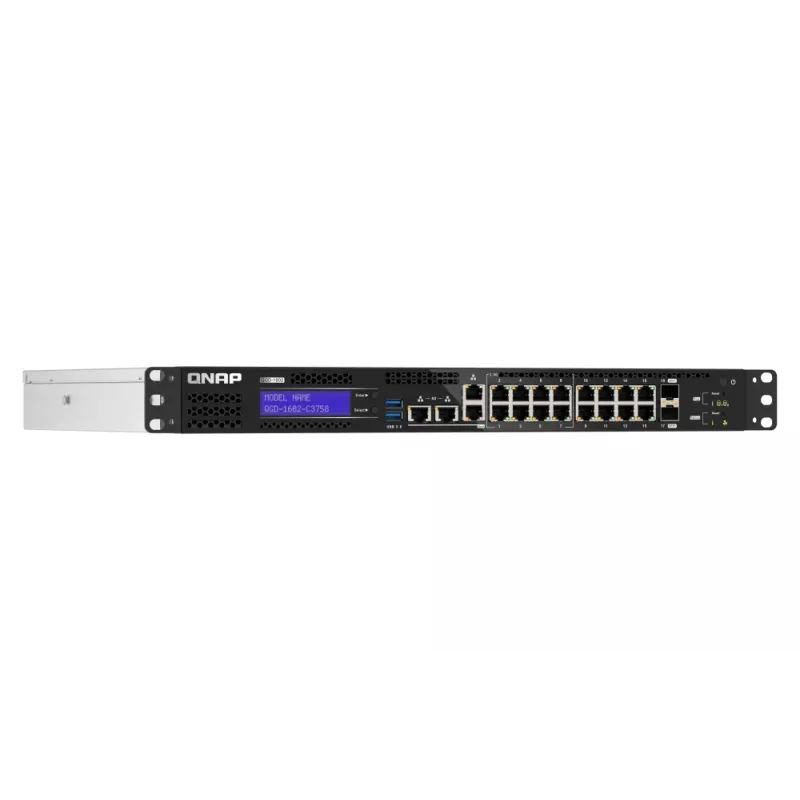

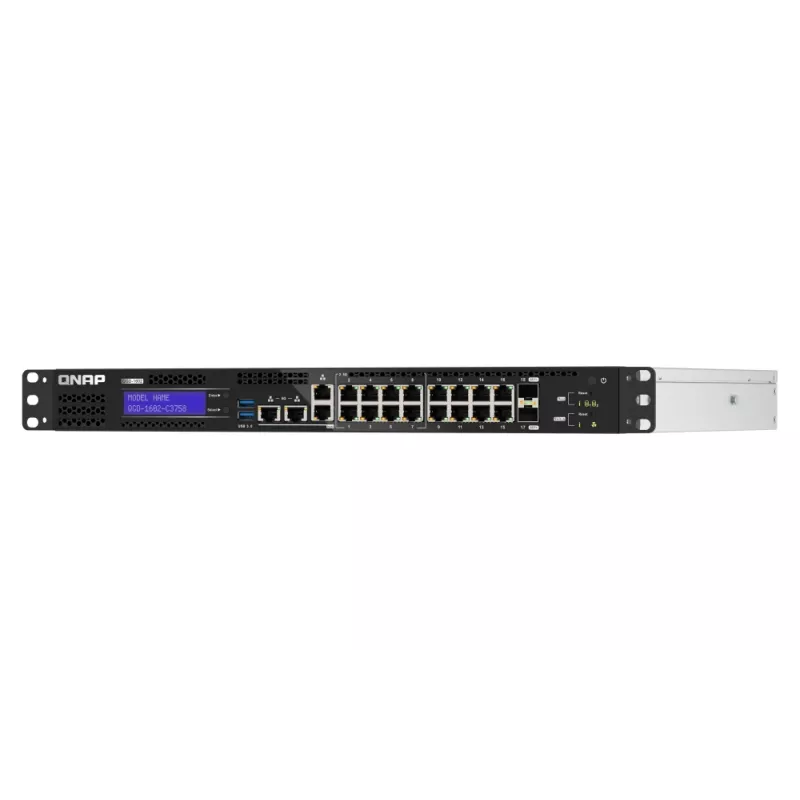

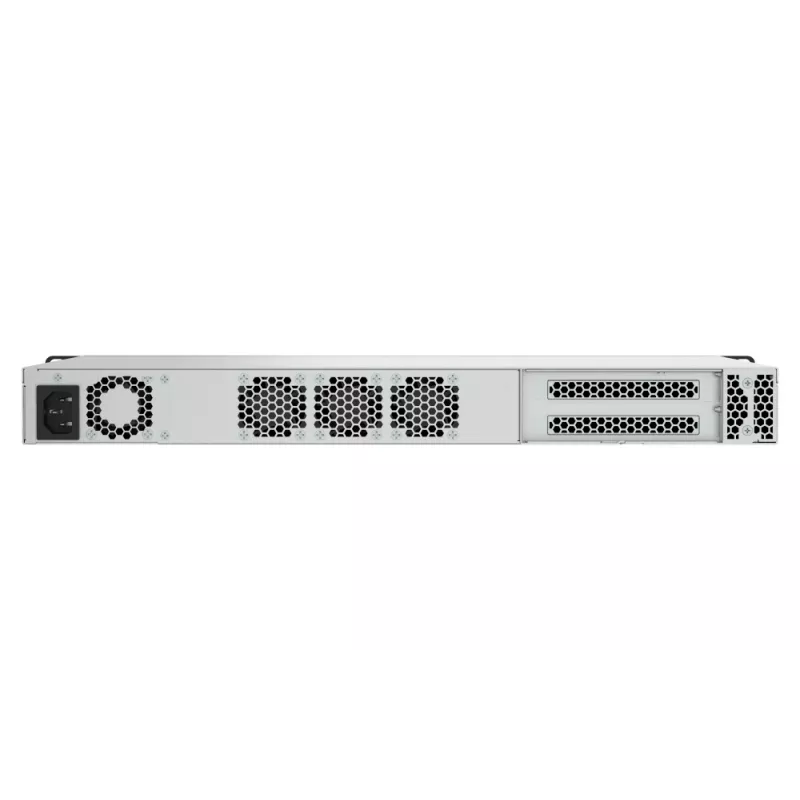

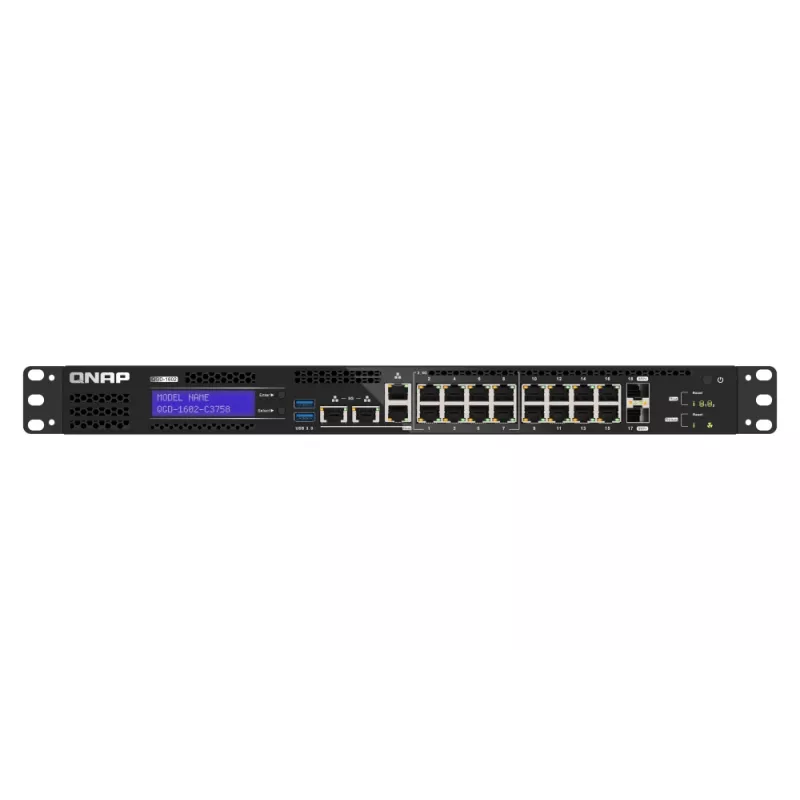

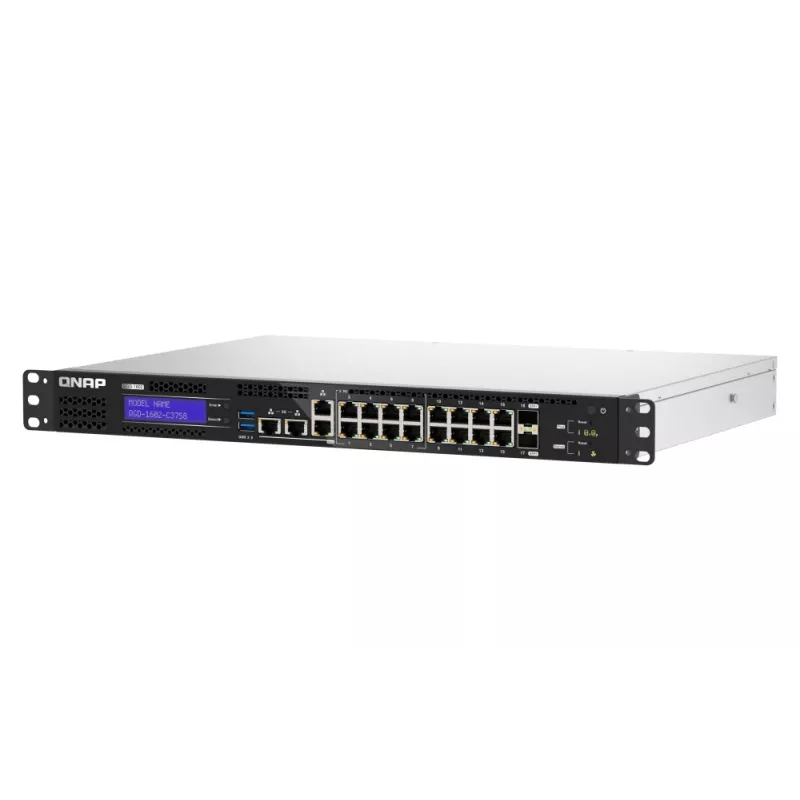

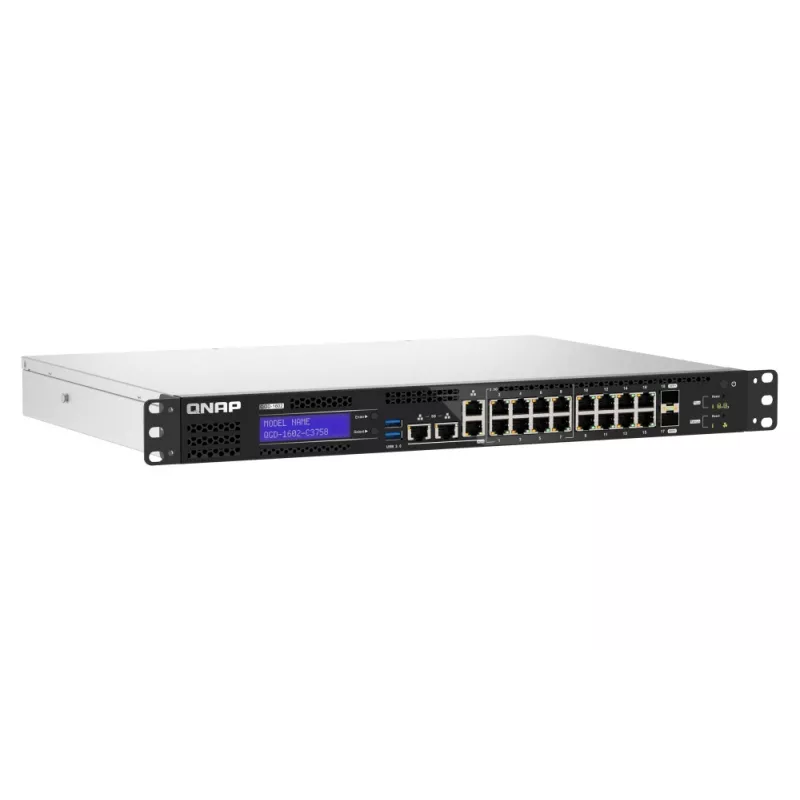

QNAP QGD-1602-C3758-16G verkkokytkin hallittava L2 2.5G Ethernet (100/1000/2500) musta, harmaa

Upgraded performance for smoother virtualization

The QGD-1602 provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.

Sturdy hardware with Intel QAT for optimized performance

The QGD-1602 uses Intel® Atom® C3000 series multi-core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x2 slots allows users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD-1602 also supports Intel® QuickAssist Technology (Intel® QAT) to greatly enhance IPsec VPN performance.

The First Switch Series with VM Support

The Guardian supports QNAP’s QTS operating system and is the world’s first switch series that can host virtual machines, containers, and provide other cloud applications - enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications, the included App Center also supports VMs for running many open-source software applications. The Guardian provides SMBs with not only an all-in-one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD-WAN solution for connecting to other QNAP devices at multiple sites. The dual-processor Guardian enables you to independently run the networking management interfaces (QSS - QNAP Switch System) and QTS. The Guardian provides a user-friendly web interface, QuNetSwitch, to help SMBs deploy a flexible and secure IT infrastructure.

Deploy a multi-site VPN with SD-WAN solution

The QGD-1602 and other QNAP solutions now support QuWAN – QNAP’s SD-WAN solution. QuWAN provides full mesh IPsec VPN topology between QNAP devices based in multiple sites to fulfill enterprise video, VoIP, ERP system data, and filing needs. QuWAN adopts software-defined networking to achieve optimum network connectivity, and supports cloud-centric management for deploying a resilient IT Infrastructure.

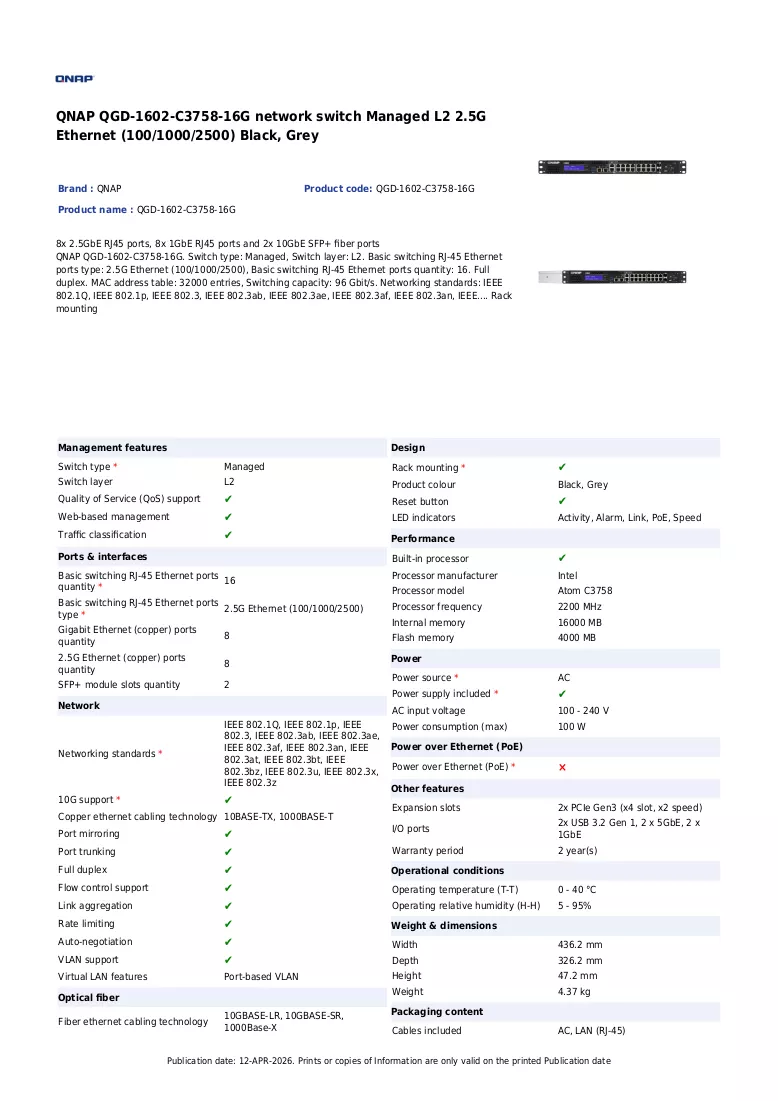

QNAP QGD-1602-C3758-16G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 32000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE.... Rack mounting

How to use

Install the QGD-1602 in a rack or on a stable surface, populate storage bays or M.2 slots as needed, and connect uplink and client devices to the 2.5G ports. Use the QuNetSwitch web interface (QSS) to perform initial network configuration, enable QTS for VM/container deployment if required, and install optional expansion cards in the PCIe slots to add 10GbE, QM2 or other functions. Configure QuWAN for SD-WAN multi-site tunnels and enable Intel QAT-accelerated IPsec settings for improved VPN throughput where applicable.

Recommendations

For best performance, use NVMe SSDs for caching to increase IOPS, install matched 10GbE or QM2 cards in PCIe slots when higher uplink capacity is needed, and enable Intel QAT for bandwidth-sensitive VPN connections. Maintain current QTS and firmware versions to ensure compatibility and security across networking and virtualization features.
