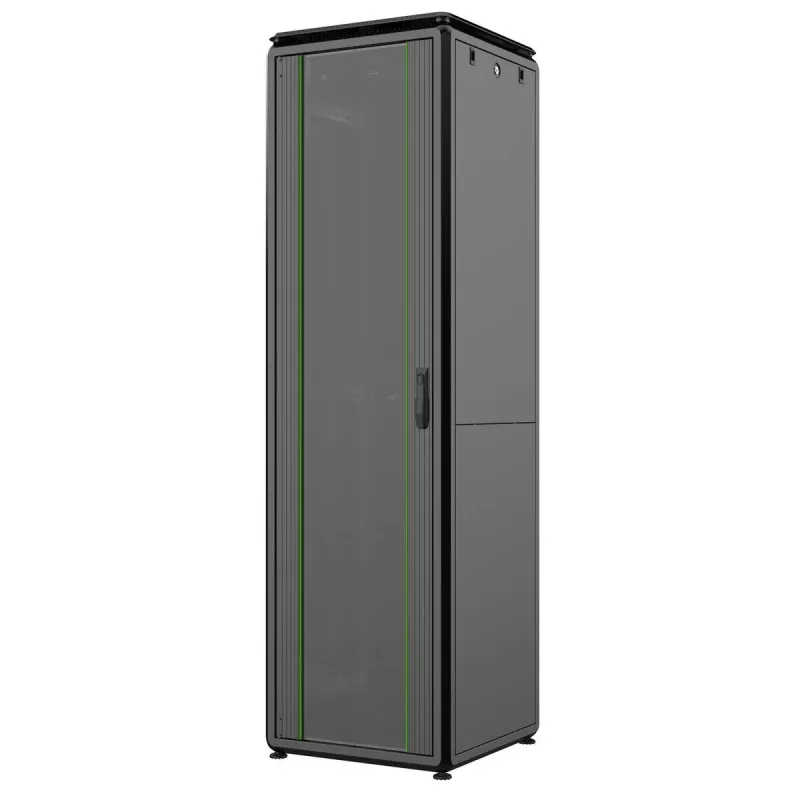

Räkkikaappi Lanview RDL42U66BL 42U musta 600 kg IP20

The Lanview RDL42U66BL is a free-standing 42U rack cabinet with external dimensions W:600 x D:600 x H:2053 mm and a maximum load capacity of 600 kg. Designed for offices, server rooms and system closets, it delivers a robust steel structure, tool-friendly assembly and an IP20 protection rating. The cabinet supports adjustable installation rails, a wide range of accessories and a flatpack option for reduced storage and transport volume.

Advantages

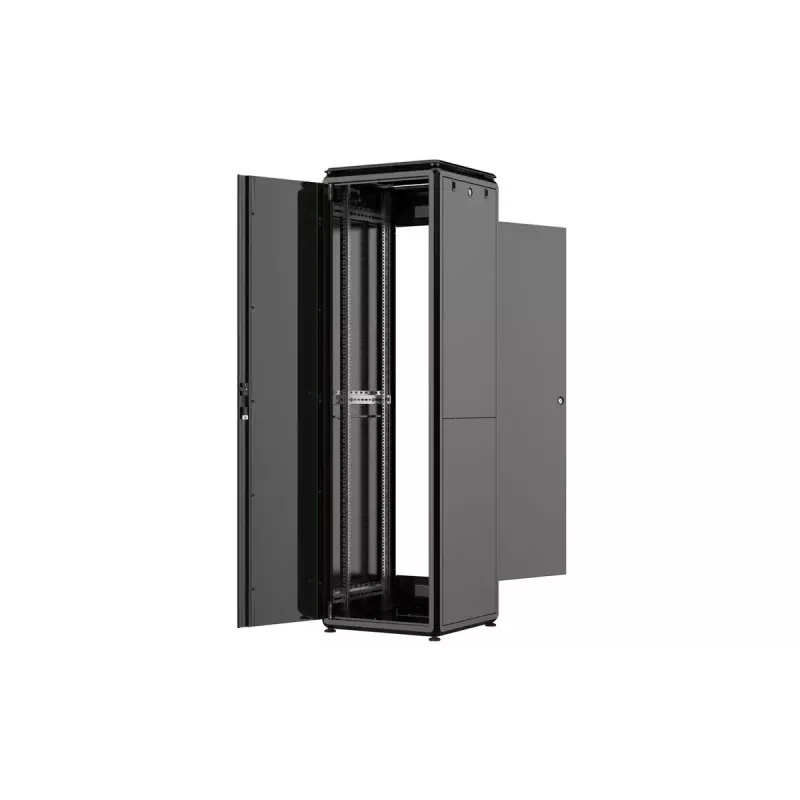

The cabinet provides a durable and cost-efficient solution with a top-class profile design, adjustable installation rails and easy assembly using simple tools. Cable management is simplified by an integrated provision for vertical cable manager modules, a wide rubber-edged sliding cable entry at the base and dedicated side brackets for securing cable runs. Access and security features include horizontally split front doors with tempered anti-static 4 mm smoked glass and handle-locking, lockable metal rear doors and barrel-locked removable side panels. Split side panels on the 42U height enable removal in constrained spaces.

Suitable for

• Data centers and server rooms
• Office network and telecommunication closets
• IT equipment storage and rack-mounted servers
• Patch panels, switches and power distribution units (PDUs)

Key specifications

• Model: Lanview RDL42U66BL
• Rack capacity: 42U
• External dimensions: 600 x 600 x 2053 mm (W x D x H)
• Maximum load capacity: 600 kg
• Product weight: 76.01 kg
• IP rating: IP20
• Colour: Black
• 19" rack compatible

How to use

Place the cabinet on a flat, stable surface and assemble using standard hand tools following the supplied assembly instructions. Adjust the installation rails to match the depth of mounted equipment, fit the chosen accessories such as vertical cable managers or PDUs, then route cables through the wide bottom cable entry. Use the rubber-edged sliding entry module to protect cables and close it after routing to maintain dust resistance. Mount equipment on the 19" rails and secure side panels, front and rear doors using the provided locking mechanisms.

Recommendations

Install the cabinet in a well-ventilated area and leave sufficient clearance at the front and rear for airflow and maintenance. Distribute load evenly across the rails and secure heavy equipment at lower U positions. Use the integrated cable management features to keep airflow unobstructed and to simplify future servicing.
