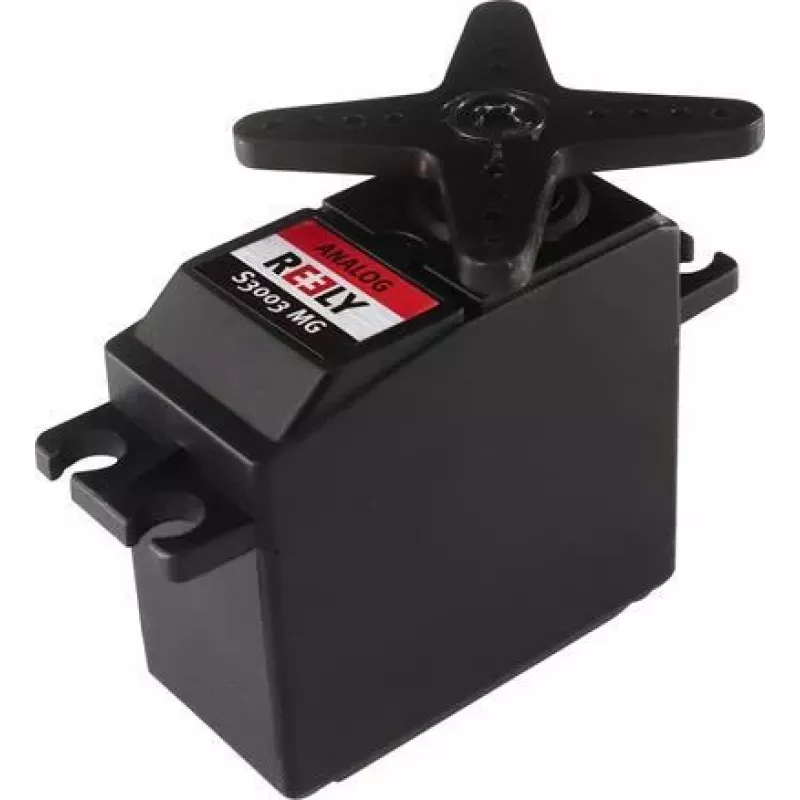

Reely vaki servo S3003 MG analoginen servo metallivaihteisto JR-liitin RE-6702303

The Reely S3003 MG stands apart from typical standard servos with its all-metal gear train, delivering enhanced durability and consistent torque for demanding RC applications. This analog servo offers reliable performance for model aircraft, cars, and boats where robust gear strength is essential.

Highlights

• Metal gear train for increased longevity and load handling
• Analog control with JR connector for broad compatibility
• Operating voltage range: 4.8–6.0 V DC
• Stall torque up to 4.2 kg/cm at 6.0 V
• Compact standard size for easy installation

In daily use

With a rotation angle of 180° and a bushing bearing, the S3003 MG provides smooth and precise movement for steering, throttle, and control surfaces. Its 300 mm cable length offers flexible placement in various models, while the brushed motor ensures dependable operation across the specified voltage range.

Full specifications

• Servo type: Analog
• Gear material: Metal
• Operating voltage: 4.8–6.0 V DC
• Stall torque: 3.5 kg/cm at 4.8 V, 4.2 kg/cm at 6.0 V
• Operating speed: 0.18 sec/60° at 4.8 V, 0.15 sec/60° at 6.0 V
• Connector type: JR
• Bearing type: Bushing
• Motor type: Brushed
• Rotation angle: 180°
• Housing material: Plastic
• Cable length: Approx. 300 mm

Final note

Choose the S3003 MG for a robust, metal-geared servo that balances performance and value in standard RC applications.
