Rittal HD 1304600 Hygienic-Design ruostumaton teräskotelo, 310 × 549 × 210 mm

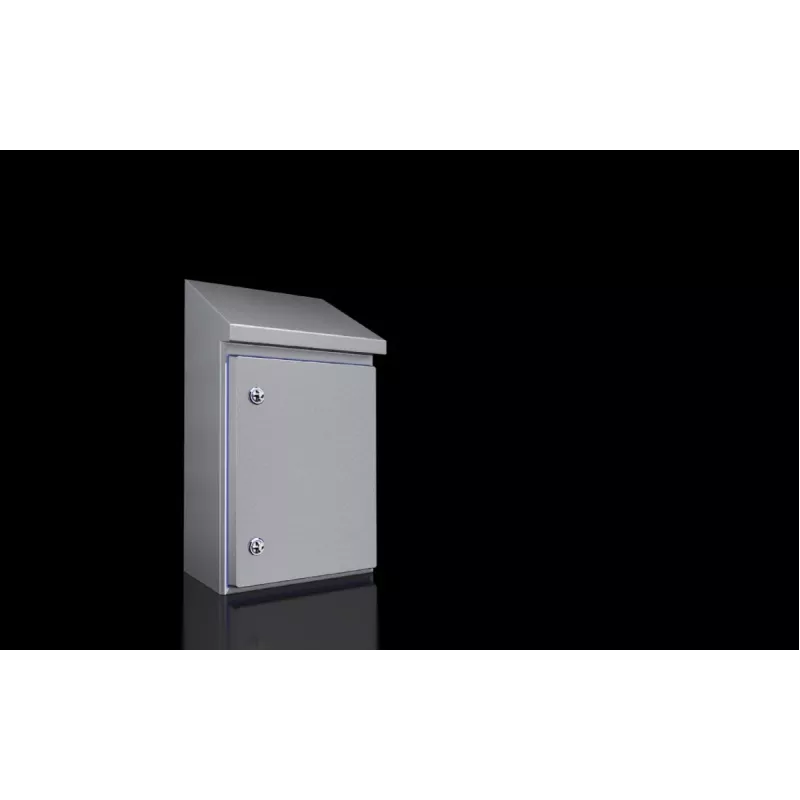

Rittal HD 1304600 is a compact Hygienic Design enclosure for food and beverage production environments. The enclosure and door are made from brushed AISI 304 stainless steel (1.4301). A roof sloping forwards by 30° and an inserted blue silicone door seal are features of its hygienic construction.

The enclosure measures 310 mm wide and 210 mm deep. Height is 430 mm at the front and 549 mm at the rear, including the sloping roof. The zinc-plated sheet-steel mounting plate measures 250 × 355 mm. Net enclosure weight is 10.5 kg.

The supplied assembly includes the closed enclosure, door with inserted seal and mounting plate. Door opening angle is 125°; the factory right-hand hinge can be changed to the left. The manufacturer specifies IP66 and IPX9 ingress protection and IK08 impact resistance. The lock insert is AISI 316L stainless steel (1.4404). Select installation accessories for the exact HD 1304600 size and mounting arrangement.
