Rittal SV komponenttisovitin telakointikiskon vakuumikytkimelle 690 V, RAL 7035

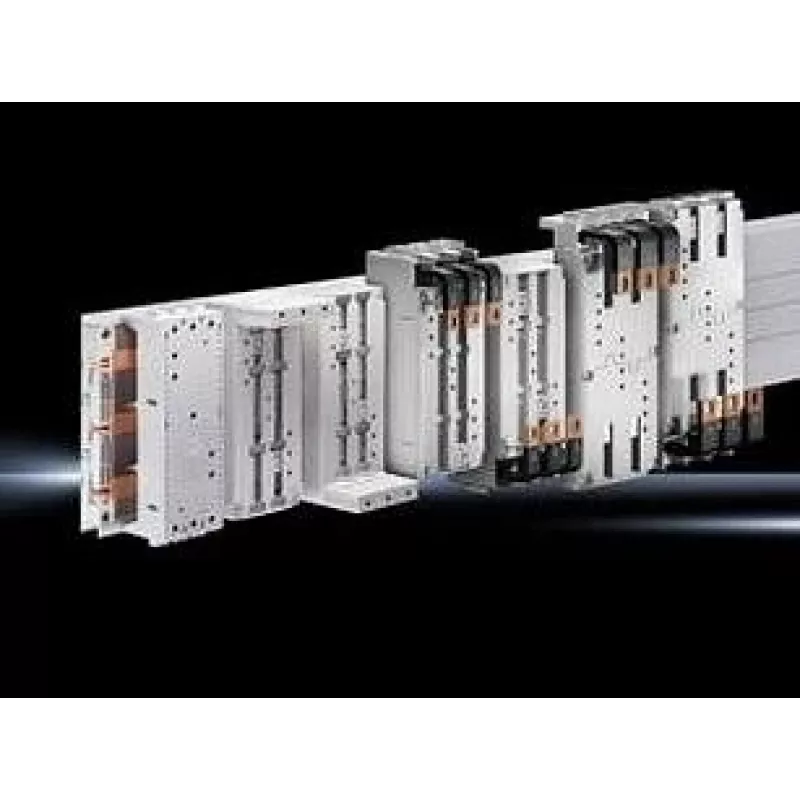

Rittal SV component adapter for rack vacuum switch 690 V, RAL 7035 is a mounting accessory designed to integrate vacuum switching devices into electrical cabinets and rack systems. It is intended for applications up to 690 V and finished in RAL 7035 to match industrial switchgear aesthetics. The adapter provides a standardized interface for secure attachment and alignment of rack vacuum switches in metal enclosures and mounting frames.

Advantages

The adapter ensures stable and repeatable mounting for vacuum switchgear, reducing installation time and alignment effort. Constructed to fit standard rack configurations, it supports correct positioning of the vacuum switch while maintaining the necessary electrical clearance for 690 V applications. The neutral RAL 7035 finish offers corrosion-resistant coating and consistent appearance within switchboard installations.

Suitable for

Key specifications

How to use

Install the component adapter on the designated rack or inside the electrical cabinet using the appropriate fasteners and alignment points provided in the mounting frame. Position the vacuum switch onto the adapter, ensuring mechanical engagement and correct electrical clearances for 690 V operation. Secure the switch to the adapter with the recommended screws or bolts, and verify alignment and locking before reconnecting power. Follow applicable electrical safety procedures and local regulations during installation.

Recommendations

Verify mechanical compatibility between the adapter and the selected vacuum switch model before installation. Use corrosion-resistant fasteners and ensure all connections meet prescribed creepage and clearance distances for 690 V systems. Perform insulation and continuity checks after mounting and before commissioning.
