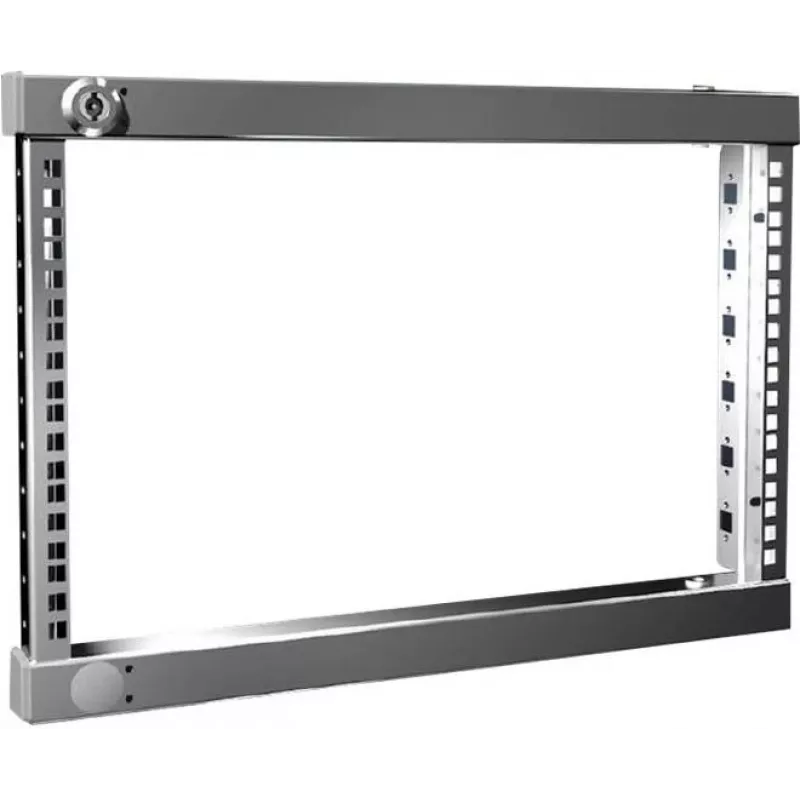

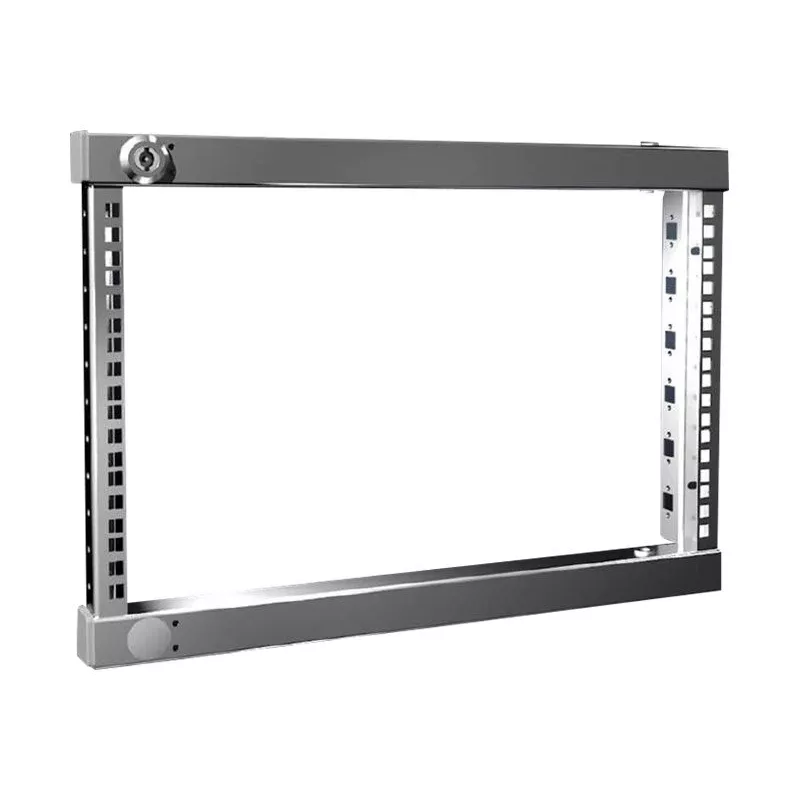

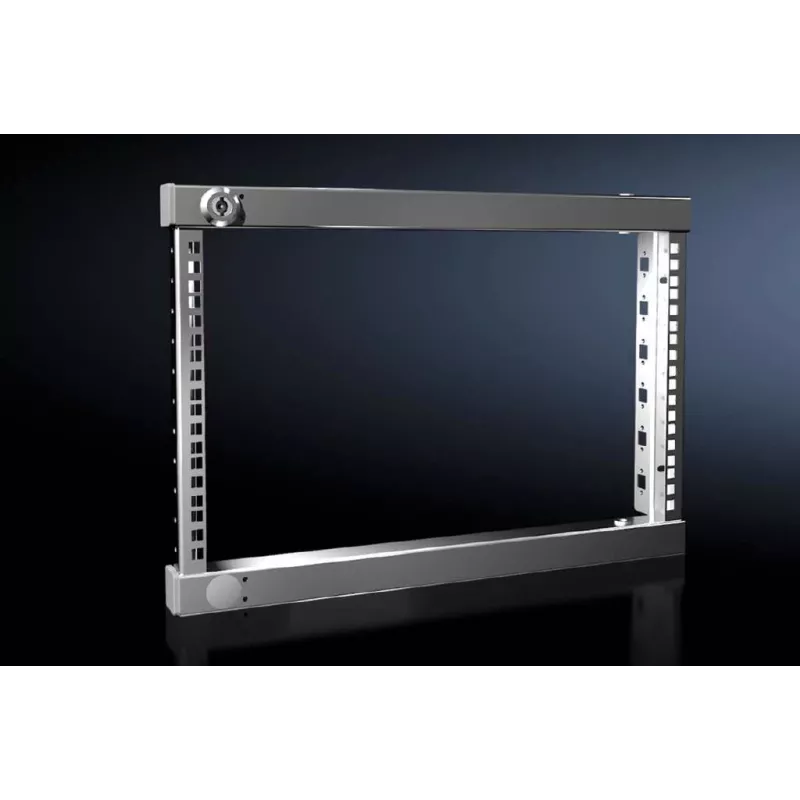

Rittal VX IT räkin kääntökehys 6U 19" sinkitty 8619510

Data center technicians and IT installers working with Rittal VX IT enclosures use this swing frame to mount 19-inch components such as servers and network devices. The frame swings open to provide convenient access to both the front and rear of installed equipment, simplifying maintenance and cabling in tight spaces.

Key specifications

• Rack units: 6U
• Rack width: 19 inch (48.3 cm)
• Material: Sheet steel
• Surface finish: Galvanized
• Mounting type: Internal, for VX IT enclosures
• Load capacity (static): 100 kg
• Installation depth: 400 mm
• Mounting levels: Two (front and rear)

Why choose it

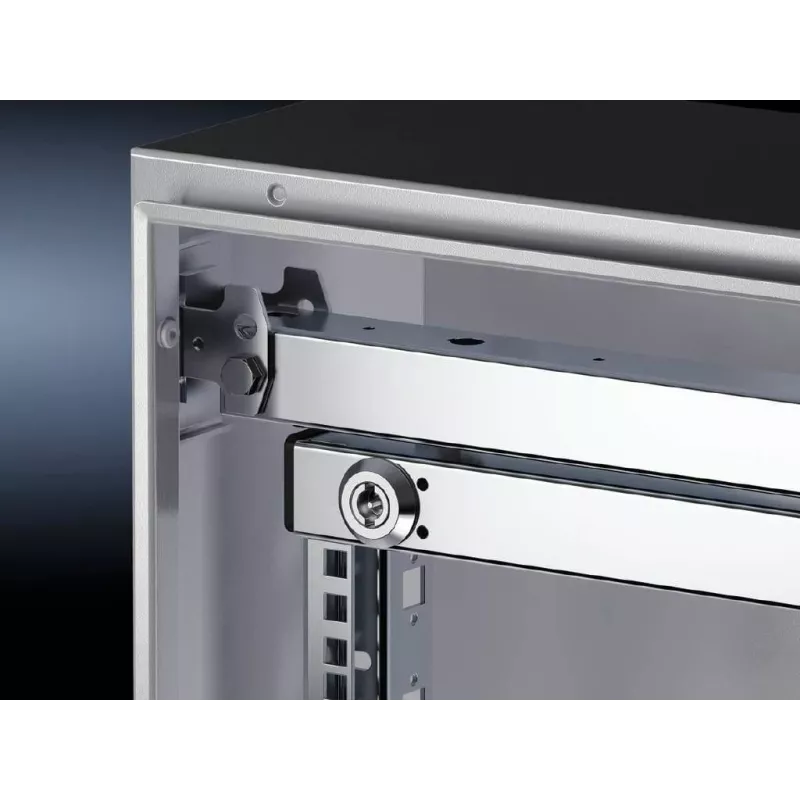

The galvanized finish provides corrosion resistance, and the robust, torsion-resistant construction ensures stable mounting of heavy equipment. The swiveling design allows full access to cabling and components without removing them from the rack.

Ideal use cases

• Mounting 19" servers in Rittal VX IT enclosures
• Facilitating maintenance and cabling in data centers
• Organizing network devices with front and rear access

Good to know

This swing frame is specifically designed for Rittal VX IT enclosure systems. It includes mounting accessories for installation.
