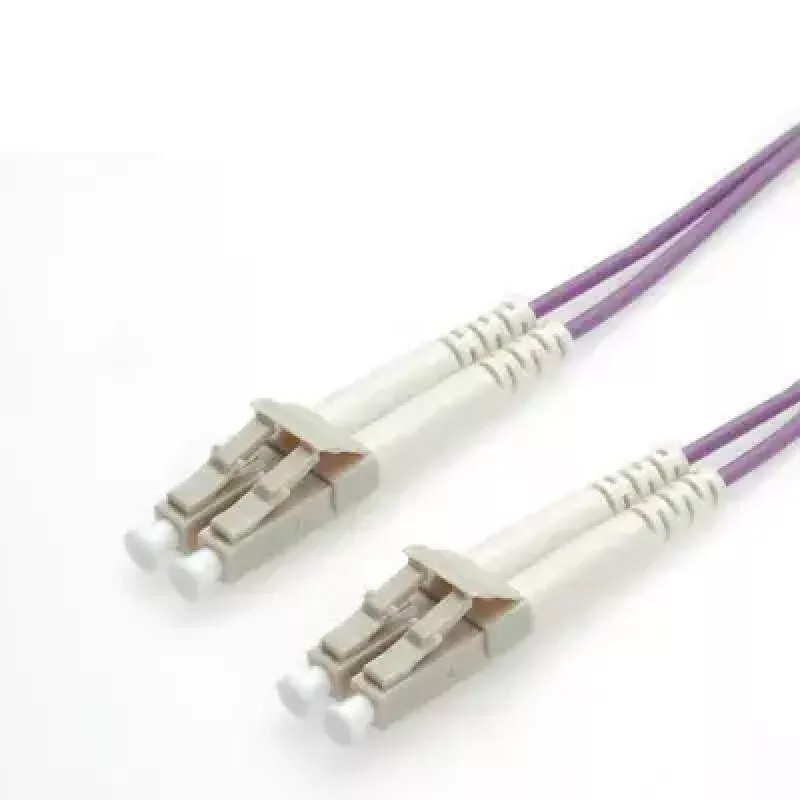

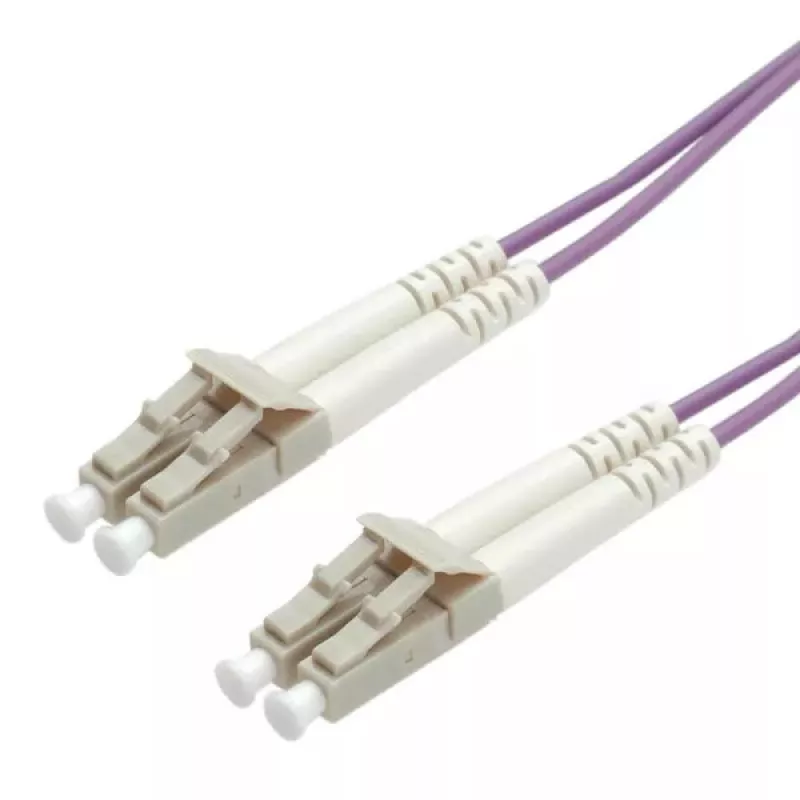

ROLINE OM4 LC/LC 50/125 µm kuitu-jumperkaapeli 2 m

The ROLINE Fibre Optic Jumper Cable OM4 LC/LC 50/125 µm 2 m is a duplex patch cable intended for high-speed network connections. With OM4 multimode fiber and LC connectors on both ends, this 2 m jumper supports modern Ethernet, Fibre Channel and OIF links and is suitable for data center and backbone cabling where enhanced bandwidth and extended reach are required.

Advantages

OM4 fiber provides a laser-optimized 50 µm core with extended modal bandwidth, enabling greater reach at 10 Gbit/s and above compared with lower-grade multimode fibers. The cable's LC/LC duplex termination and 2 m length make it convenient for patching between equipment and panels. The purple jacket denotes OM4 specification for easy identification in installations.

Suitable for

• 10 Gbit/s Ethernet connections up to approximately 550 m (building backbones)
• 40 Gbit/s and 100 Gbit/s short-reach links in data centers
• Fibre Channel and OIF applications
• Patch cabling between switches, servers and fiber panels

Key specifications

• Fiber type: OM4 multimode, 50/125 µm
• Connectors: LC to LC, duplex
• Length: 2 m
• Laser bandwidth: 4700 MHz·km (typical for OM4)
• Color: purple (OM4 identification)
• Brand / MPN / EAN: ROLINE / 21.15.8752 / 7611990196302

How to use

Connect one LC connector to the transceiver or patch panel port and the other LC connector to the receiving device, ensuring correct polarity for full duplex operation. Avoid bending the cable beyond its minimum bend radius and keep connector endfaces clean; inspect and clean connectors before mating to maintain signal integrity. Route and secure the cable to prevent strain on connectors.

Recommendations

Use this OM4 LC/LC jumper for 10 Gbit/s and higher-rate links where extended reach or higher modal bandwidth is required; for lower-rate applications (100 Mbit/s or 1 Gbit/s) OM4 performs similarly to OM2/OM3 but can be selected for future-proofing installations.
