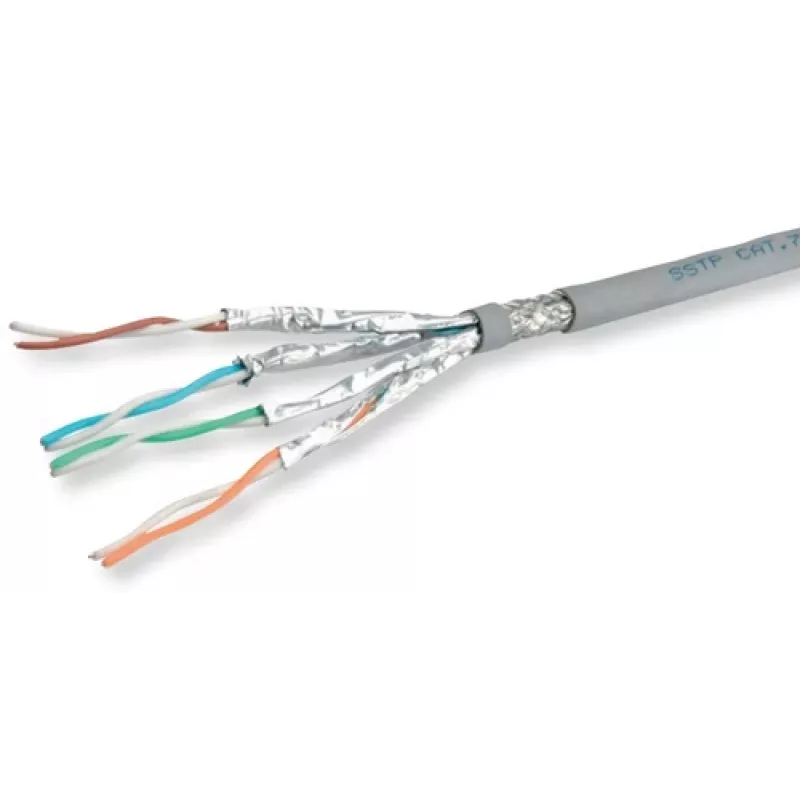

ROLINE S/FTP Cat.6A (Class EA) LSOH -asennuskaapeli, 100 m, harmaa

The ROLINE S/FTP Cat.6A bulk cable is a high-performance shielded twisted pair cable designed for structured building cabling and horizontal cabling applications. With a length of 100 meters, solid wire conductors, and LSOH (Low Smoke Zero Halogen) jacket, it ensures reliable data transmission and safety in case of fire.

Advantages

• Supports 10 Gigabit Ethernet (10GBASE-T) up to 500 MHz bandwidth
• S/FTP shielding (overall braid and individual foil per pair) minimizes crosstalk and interference
• LSOH jacket reduces toxic smoke and halogen emissions, enhancing safety
• Solid copper conductors (23 AWG) provide stable performance for permanent installations

Suitable for

• Structured cabling in commercial buildings
• Data centers and server rooms
• Horizontal cabling for high-speed networks
• Industrial environments requiring robust shielding

Key specifications

• Cable Type: S/FTP (Shielded Foiled Twisted Pair)
• Category: Cat.6A (Class EA)
• Length: 100 m
• Conductor: Solid Wire, Copper, 23 AWG
• Number of Pairs: 4
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Jacket Color: Grey
• Outer Diameter: Approx. 7.5 mm
• Impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flame Retardancy: IEC 60332-1-2
• Halogen-free: Yes
• Low Smoke: Yes

Recommendations

For optimal performance, use with Cat.6A compatible connectors and ensure proper grounding of the shielding. This cable is ideal for permanent link installations where high data rates and signal integrity are required.
