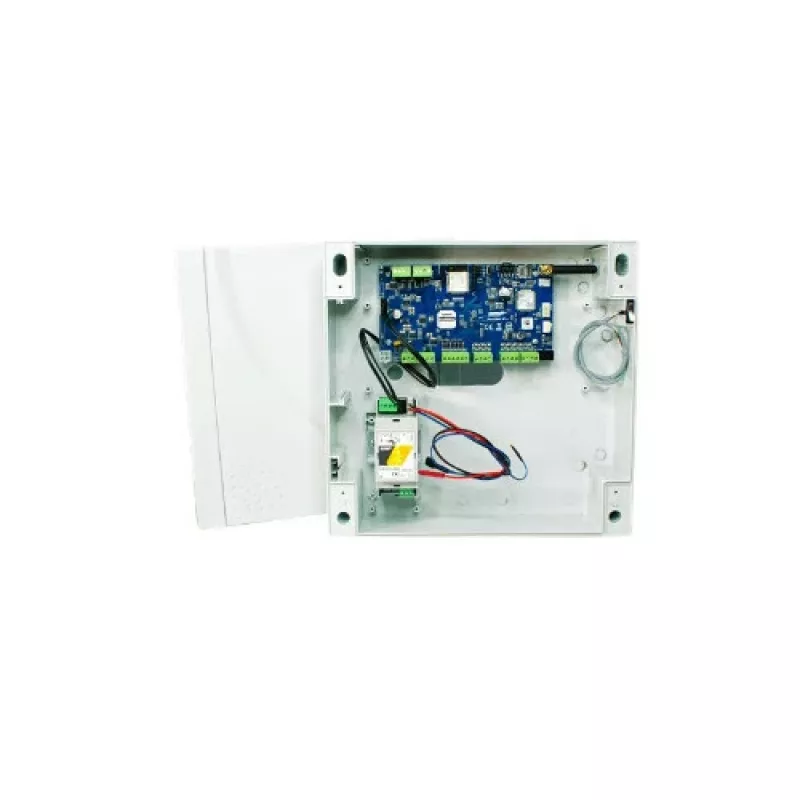

Ropam NEO-IP-64-SET hybridihälytysjärjestelmäpaketti kosketusnäyttönäppäimistöllä

The Ropam NEO-IP-64-SET is a hybrid alarm system kit that combines wired and wireless (Aero) technologies. It supports 4 independent zones with full or night arming modes, and can be expanded to 16-64 programmable inputs and 8-40 programmable outputs via expanders. The system includes a built-in GSM (2G) modem and a built-in WiFi module, and supports up to 32 users, 8 phone numbers, and 8 email addresses.

Key features

• 4 independent zones with two arming types: full or night
• 16-64 programmable inputs, expandable via input expanders
• 8-40 programmable outputs, expandable via output expanders
• Supports up to 32 roller shutter modules (bus or radio)
• Hybrid control panel: wired + Aero wireless system
• Supports up to 32 users (1 main + 31)
• 8 phone numbers, 8 email addresses
• Supports up to 4 touch panels (TPR-4 series) or touch keypads (TK-4)
• Built-in GSM (2G) modem
• Built-in WiFi module (with connector and antenna for enclosure)
• IP communication: WiFi/LAN primary channel, GPRS backup channel (automatic switching)
• Optional wired LAN connection via expander: EXP-LAN
• Dedicated mobile app RopamNeo for online supervision and remote control
• 2 RopamNET communication buses for connecting touch panels, expansion modules
• 1 TSR bus for connecting temperature and humidity sensors
• 4 timers with calendar for control and automation
• Built-in LogicProcessor for creating advanced logical functions
• Programming: local via micro USB or WiFi/ETH, remote via GPRS/IP
• Support for USSD codes (pre-paid card control)
• Convenient detachable terminal connectors, grouped by ports
• Software update via USB cable or WiFi
• Power supply: 12V DC
• Requires supervised system power supply PSR-ECO-5012-RS or PSR-ECO-2012

Specifications

• Brand: Ropam
• MPN: Neo-IP-64-SET
