SATA-kaapeli DeLOCK 83962 0,2 m SATA 7-napainen punainen

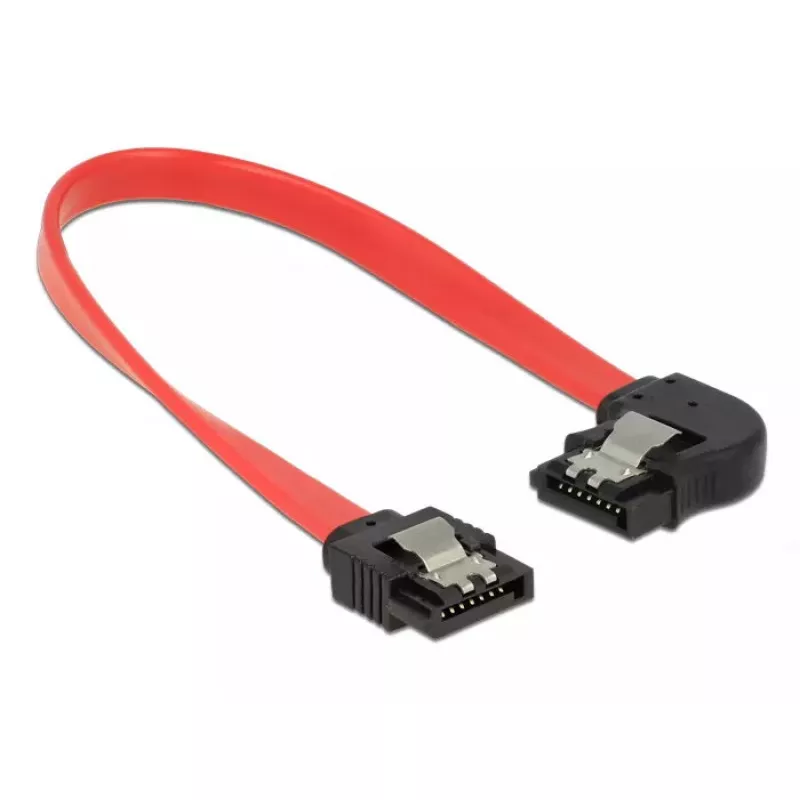

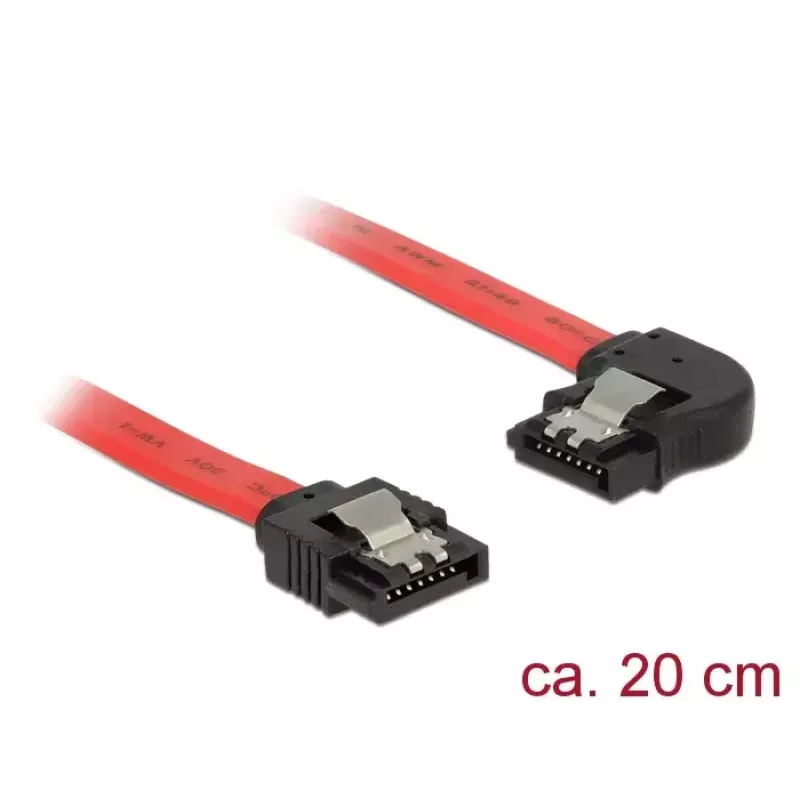

The DeLOCK 83962 SATA cable is a 0.2 m internal SATA III cable with 7-pin connectors designed for reliable data transfer between SATA devices such as HDDs, SSDs, controller cards or flash memories. It complies with the SATA III standard for transfer rates up to 6 Gb/s and is backwards compatible with previous SATA versions. The cable is red and when connected to a hard drive it is routed to the left; metal clips on the connectors secure a reliable click-in connection.

Advantages

This SATA cable supports the SATA III specification for high-speed data transfer up to 6 Gb/s while remaining backwards compatible with older SATA versions. The compact 0.2 m length reduces cable clutter inside the PC, and the metal locking clips hold connectors firmly in place. The red colour helps with internal cable identification and organization.

Suitable for

• Connecting HDDs or SSDs to motherboards
• Connecting SATA controller cards to storage devices
• Internal PC cable routing where a short 0.2 m cable is needed

Key specifications

• Cable type: SATA III
• Cable length: 0.2 m
• Connector 1: SATA 7-pin
• Connector 2: SATA 7-pin
• Maximum data transfer rate: up to 6 Gb/s
• Product colour: Red
• Brand: DELOCK
• MPN: 83962
• EAN: 4043619839629

How to use

Power off the computer and open the case before connecting the cable. Align each 7-pin SATA connector with the corresponding SATA port on the drive and motherboard or controller, then push the connector until the metal clip clicks into place. When connecting to a hard drive, the cable will lead to the left. After installation close the case and power on the system; the operating system should recognise the connected device.

Recommendations

Use this 0.2 m SATA III cable for short internal connections to minimise excess cabling. For maximum transfer speeds ensure both the host controller and the connected device support SATA III; otherwise the connection will operate at the lower supported SATA version speed.
