SCOT EL-350-2 sähkömagneettinen ovilukko 350 kg pitovoima 12/24V DC

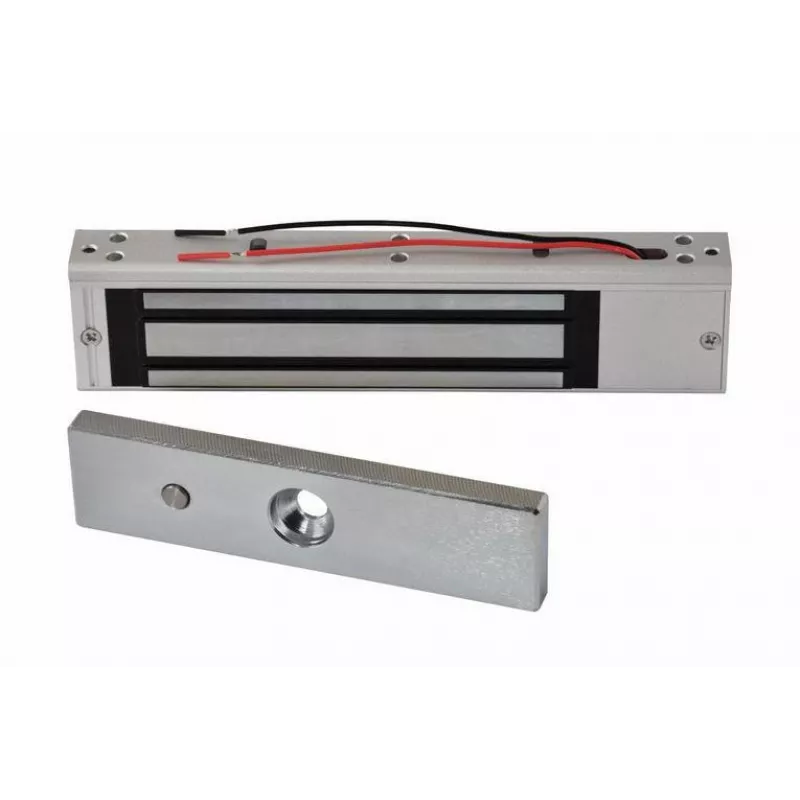

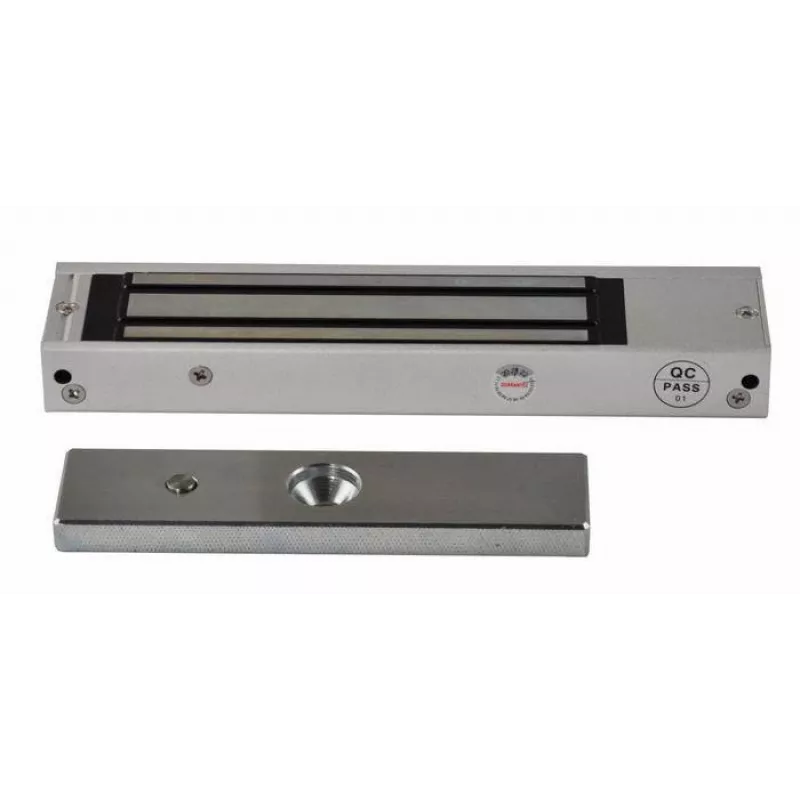

The SCOT EL-350-2 is a high-performance electromagnetic lock designed for access control systems. With a holding force of 350 kg (770 lbs / 3500 N), it provides reliable security for wooden, glass, metal, and fireproof doors. The lock features a fail-safe design (power to lock, unlocks on power loss) and includes an LED indicator for lock status and a door status sensor (DSS) with NO/NC output. Suitable for indoor use, it operates on selectable 12V DC or 24V DC power supply.

Advantages

High holding force of 350 kg ensures secure door locking. Selectable voltage (12V/24V DC) offers flexibility for various installations. Built-in LED indicator and door status sensor provide real-time monitoring. Anti-residual magnetism prevents sticking, ensuring reliable operation. Surface mount design simplifies installation.

Suitable for

• Access control systems in commercial buildings
• Office doors, server rooms, and secure areas
• Wooden, glass, metal, and fireproof doors
• Indoor applications requiring fail-safe locking

Key specifications

• Holding Force: 350 kg (770 lbs / 3500 N)
• Operating Voltage: 12V DC / 24V DC (selectable)
• Current Consumption: 500 mA (12V DC), 250 mA (24V DC)

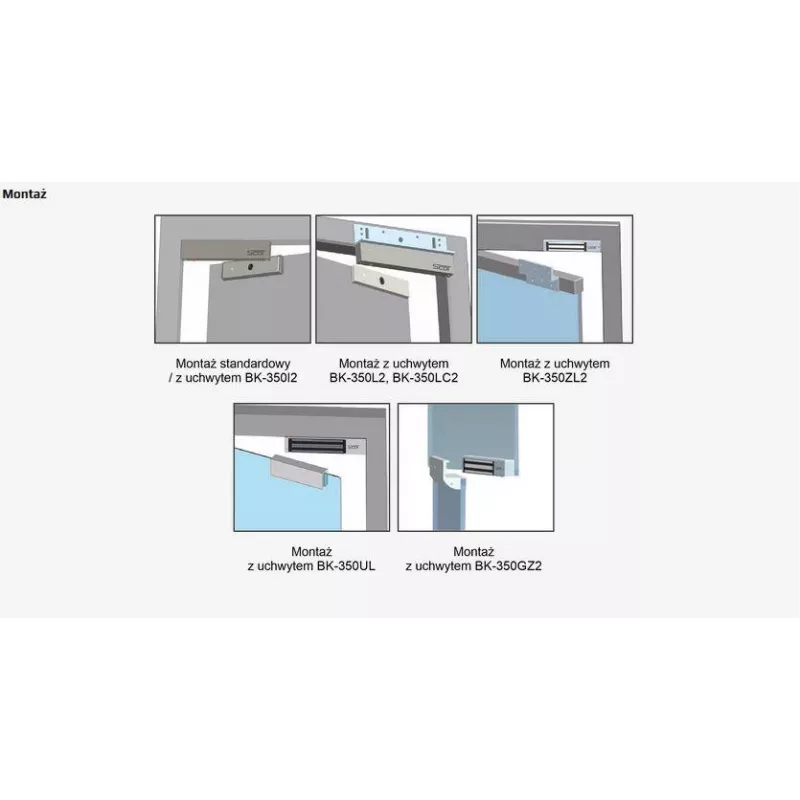

• Mounting Type: Surface Mount
• Lock Type: Fail-Safe (Power to lock)
• LED Indicator: Yes (Lock status)
• Door Status Sensor: Yes (NO/NC output)
• Material: Anodized Aluminum (housing), Steel (armature plate)

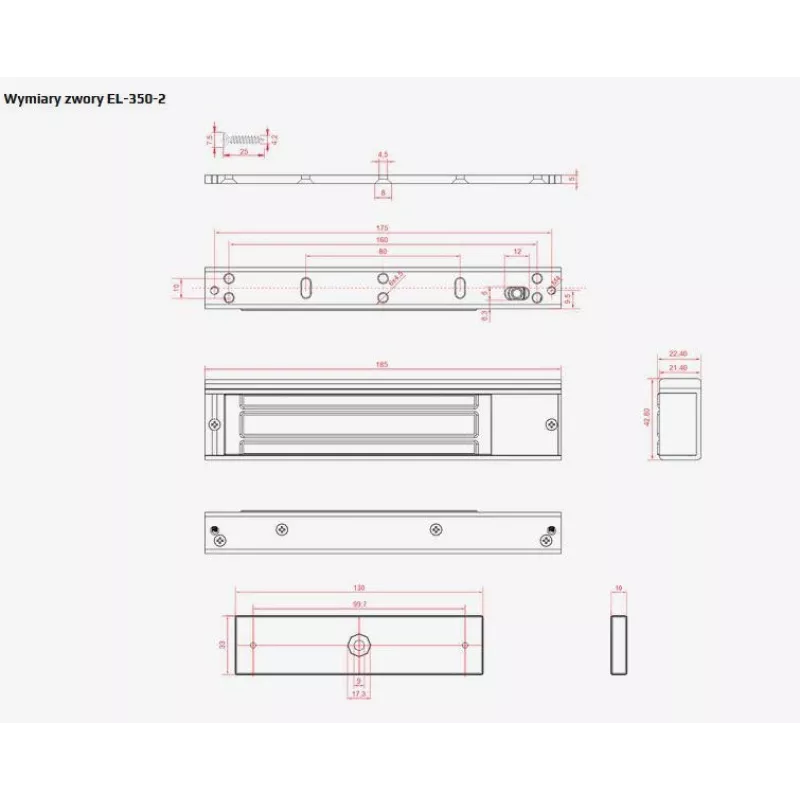

• Armature Plate Dimensions: 180 x 38 x 12 mm
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 0-95% (non-condensing)
• Anti-Residual Magnetism: Yes
• Certifications: CE, RoHS
• Application: Access Control Systems
• Installation Environment: Indoor use

Recommendations

For optimal performance, ensure the power supply matches the selected voltage (12V or 24V DC). The lock is designed for indoor use only. Verify door compatibility and surface mount requirements before installation.
