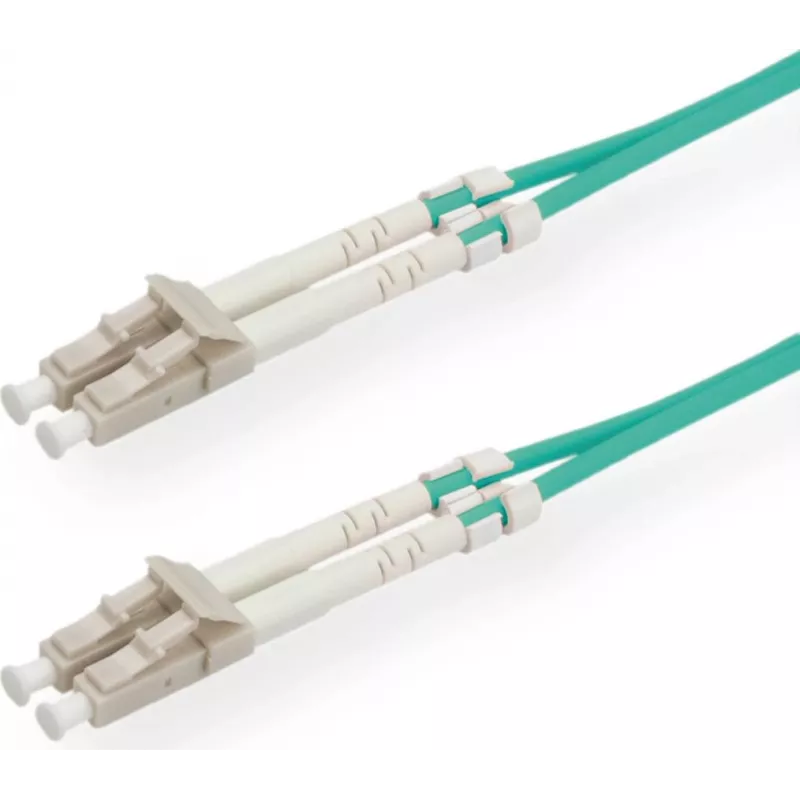

SECOMP STANDARD kuituverkkokaapeli 50/125µm OM3, LC/LC, turkoosi, 5 m S1805

In high-density data centers and enterprise networks, signal integrity and space efficiency are critical. The SECOMP STANDARD OM3 fiber optic patch cable solves the challenge of reliable 10 Gbps+ connectivity in a compact, bend-tolerant design. With LC duplex connectors and a 5-meter length, it provides a dependable link between switches, servers, and patch panels.

Who is it for

Network administrators, data center technicians, and IT professionals who need a high-performance multimode fiber connection for 10G Ethernet, Fibre Channel, and InfiniBand applications. Ideal for backbone cabling, storage area networks, and high-speed interconnects where OM3 performance is required.

Main features

• OM3 multimode fiber with 50/125 µm core/cladding diameter supports 10 Gbps up to 300 meters and 40/100 Gbps up to 100 meters.
• LC duplex connectors on both ends ensure secure, low-loss connections with a maximum insertion loss of 0.3 dB.
• Turquoise LSZH jacket is halogen-free, low smoke, and flame retardant for enhanced safety in enclosed spaces.
• Duplex zipcord construction allows easy separation of individual fibers for routing and management.
• Compliant with IEC 60794-2 and TIA/EIA-568-C.3 standards, ensuring interoperability and performance.

Specifications

• Cable type: Fiber optic patch cable (multimode, OM3)
• Fiber type: 50/125 µm multimode
• Connectors: LC to LC (duplex)
• Length: 5 m
• Jacket color: Turquoise
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 20 dB
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Tips

For optimal performance, avoid sharp bends and maintain a minimum bend radius of 30 mm. Use cable management panels to organize patch cords and reduce strain on connectors. Always inspect and clean fiber end faces before installation to prevent contamination-related signal loss.
