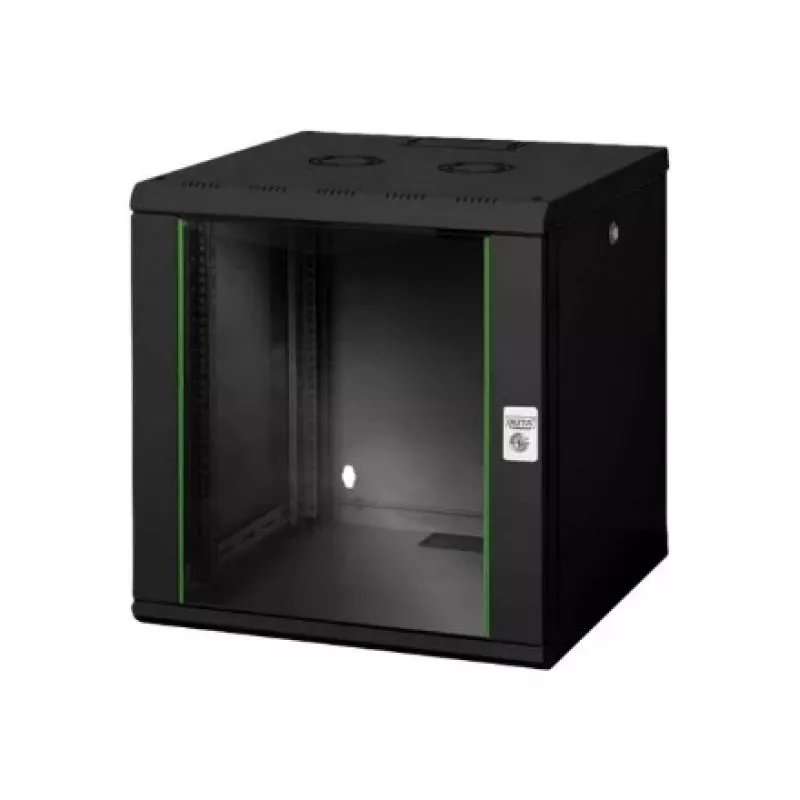

Seinäkotelo Digitus DN-19 12U-6/6-SW

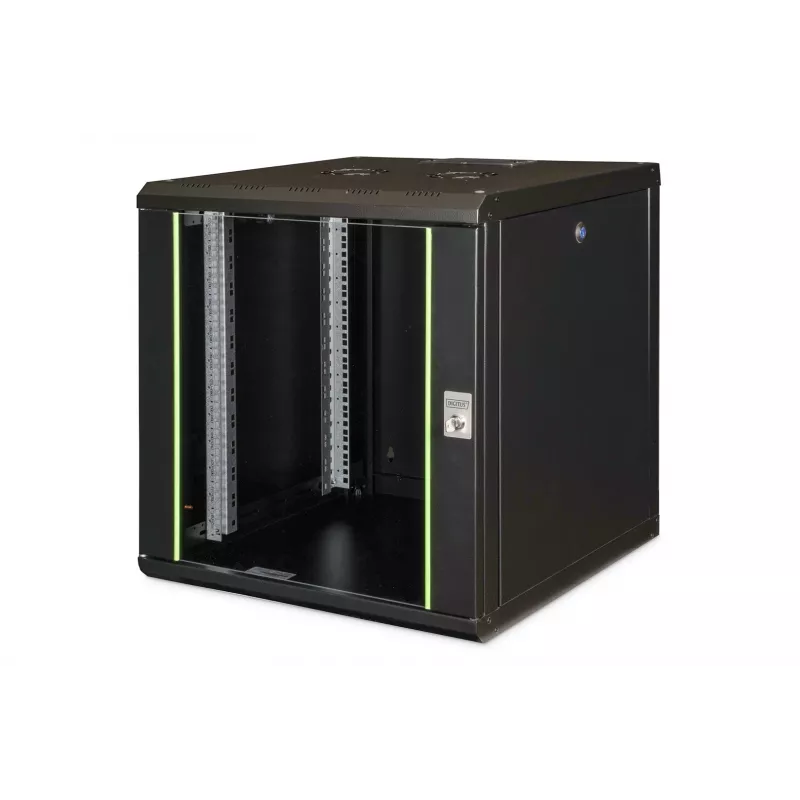

The DIGITUS Unique Series wall mounted rack DN-19 12U-6/6-SW is a 12U network cabinet designed for professional IT infrastructure. Built from up to 1.5 mm thick sheet steel and finished with electrostatic powder coating in jet black (RAL 9005), the cabinet provides a compact 600 x 600 mm footprint and an IP20 protection rating. The rack supports a maximum load of 100 kg, includes adjustable 483 mm (19") galvanized profile rails with RU markings readable in both directions, and offers multiple cable inlet options including a sliding roof inlet with foam seal and pre-cut entries in the back wall and floor plate.

Advantages

The cabinet features a robust steel construction suitable for secure wall mounting, a lockable safety-glass front door in a steel frame, and lockable removable side panels for easy access during installation and maintenance. Roof structure provisions for fan modules, adjustable rail depth, switchable door hinges and the option to convert the unit to a free-standing cabinet with optional leveling feet or casters increase flexibility and usability.

Suitable for

• Wall-mounted network equipment in small server rooms or network closets
• Patch panels, switches and 19" rack-mount devices up to 12U
• Environments requiring a lockable, compact cabinet with IP20 protection

Key specifications

• Brand: DIGITUS
• Model: DN-19 12U-6/6-SW
• Rack capacity: 12U
• Dimensions (H x W x D): 643 mm x 600 mm x 600 mm
• Material thickness: up to 1.5 mm sheet steel

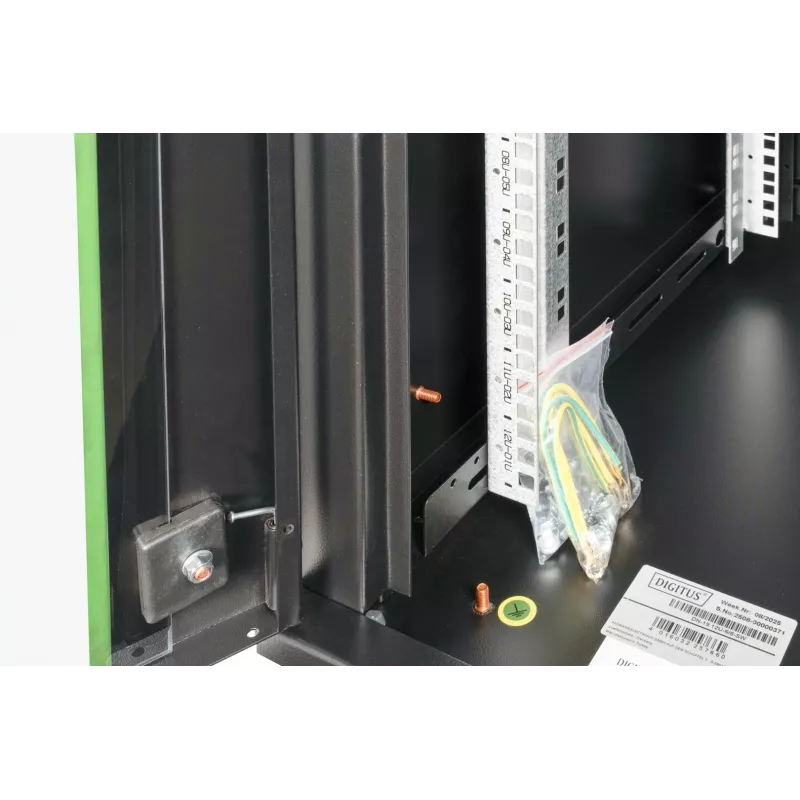

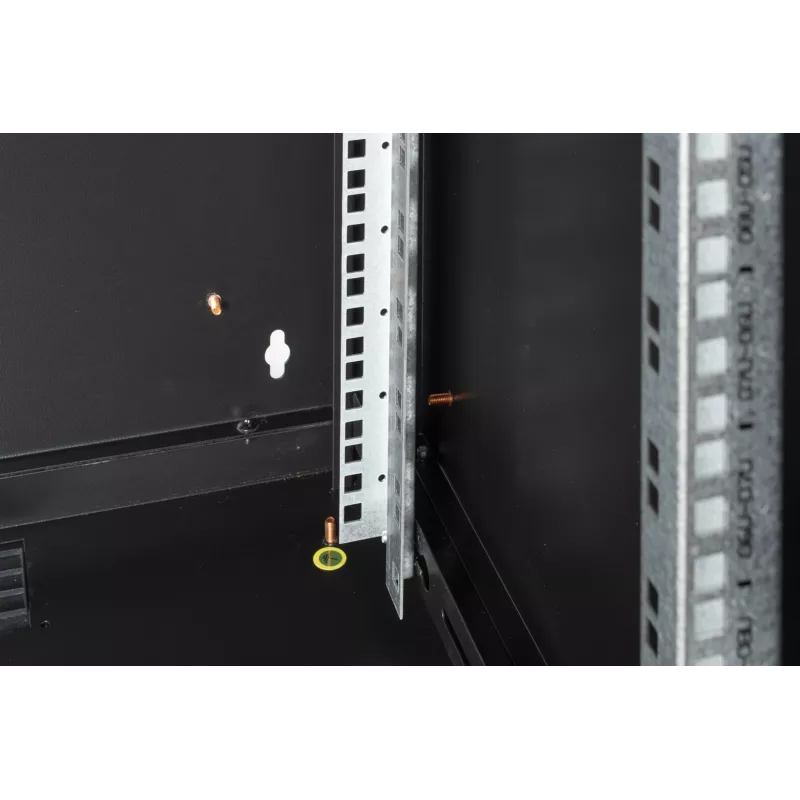

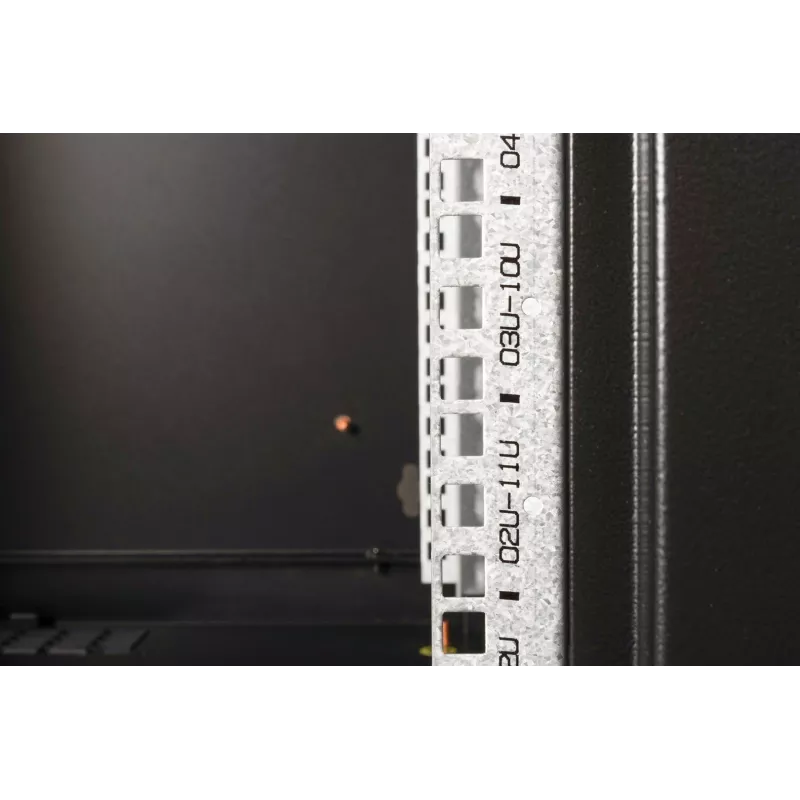

• Profile rails: 483 mm (19") galvanized, adjustable depth, RU labeling
• Maximum load: 100 kg

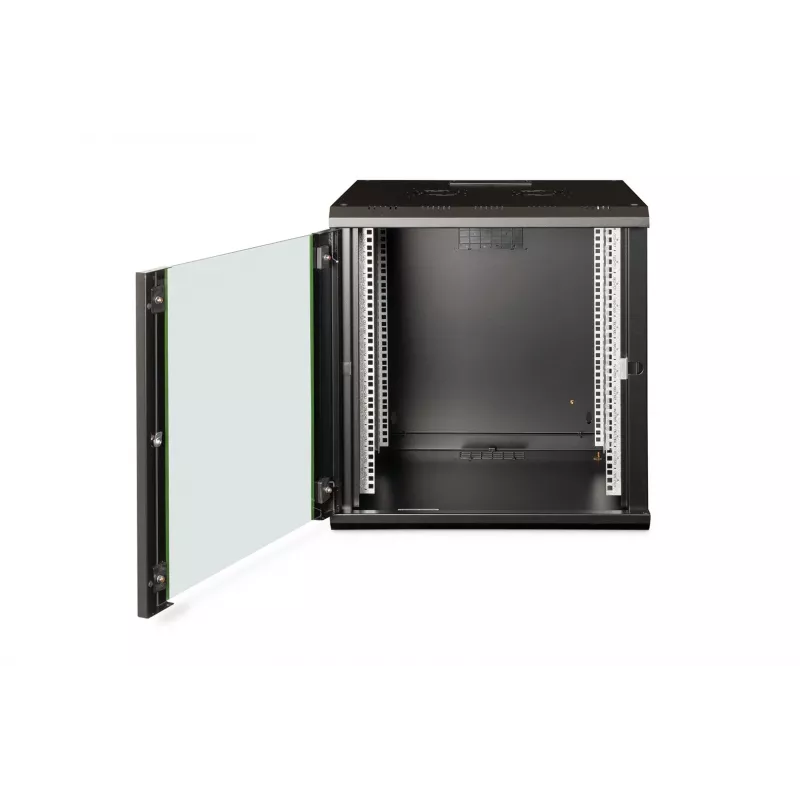

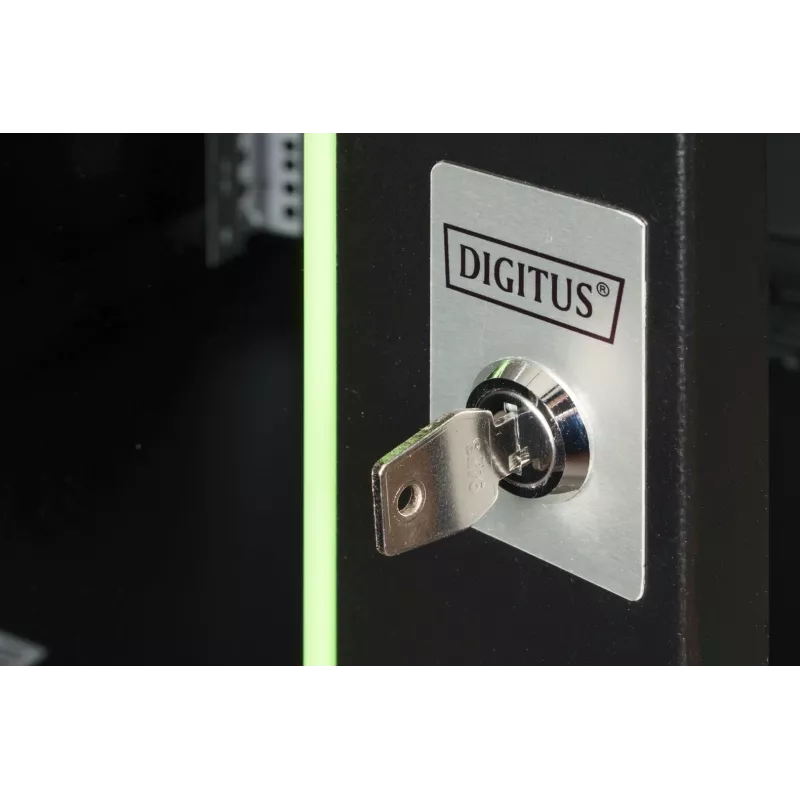

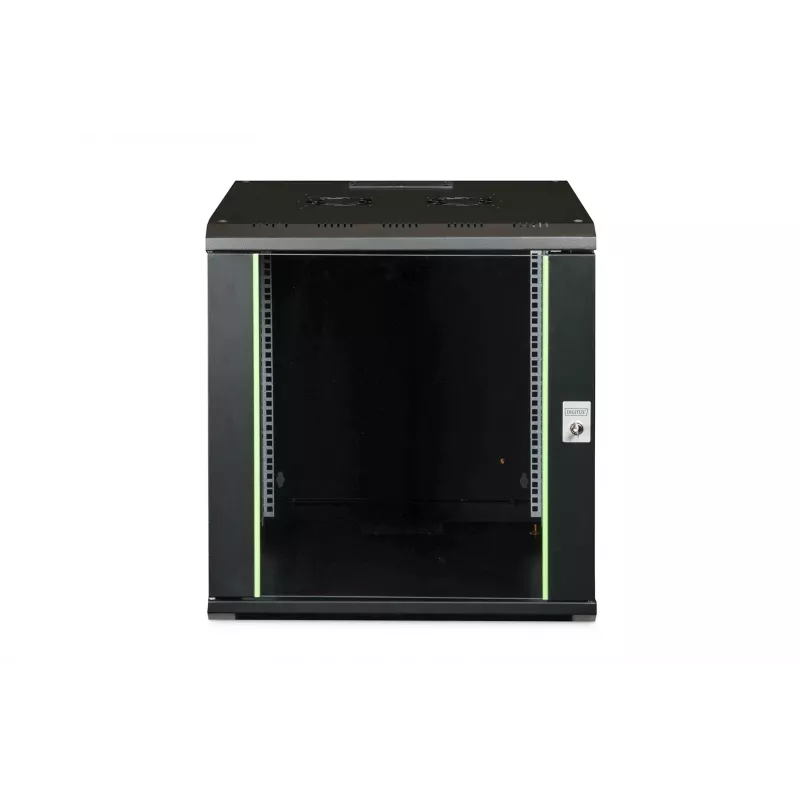

• Front door: lockable safety-glass with steel frame
• Side panels: removable and lockable
• Cable management: sliding roof inlet with foam seal; pre-cut back and floor inlets with covers
• Protection class: IP20
• Color: Black (RAL 9005)

How to use

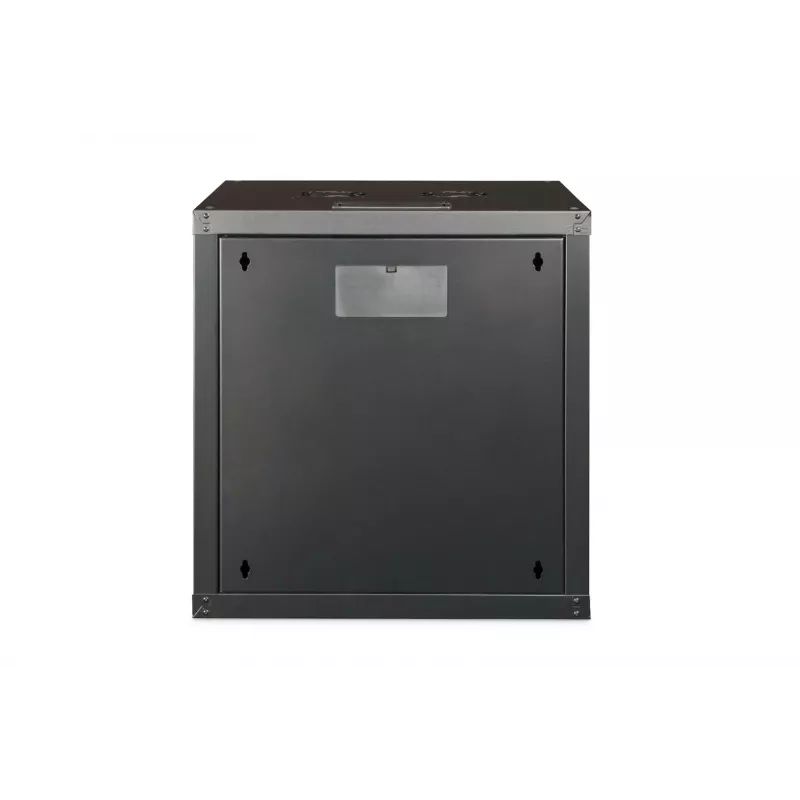

Mount the housing frame plate to a suitable load-bearing wall using appropriate fasteners, then attach the cabinet housing to the frame plate. Install 19" equipment on the internal galvanized profile rails and adjust their depth as needed. Use the sliding roof inlet, pre-cut rear and floor entries for cable routing and fit fan modules into the pre-cut roof area if ventilation is required. Lock the front door and side panels after installation to secure equipment.

Recommendations

For stable and safe wall installation, ensure the wall and mounting fasteners can support the combined weight of the cabinet and equipment (max. 100 kg). If a floor-standing configuration is needed, use compatible leveling feet or casters. Maintain adequate ventilation when installing active equipment; install a fan module if heat dissipation is expected to be high.
