Sisäinen M.2-adapteri DeLOCK 64069

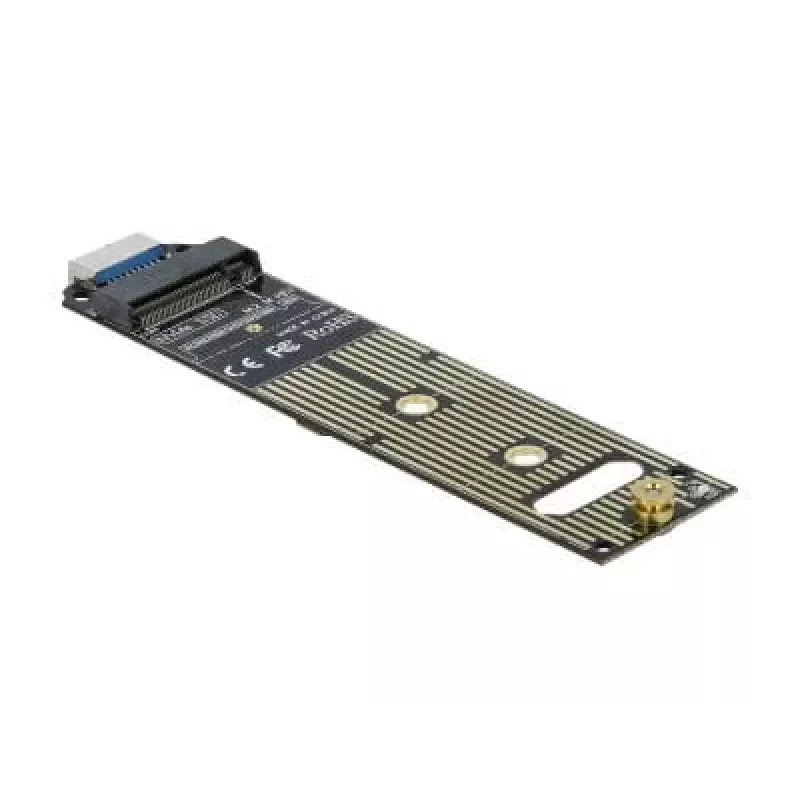

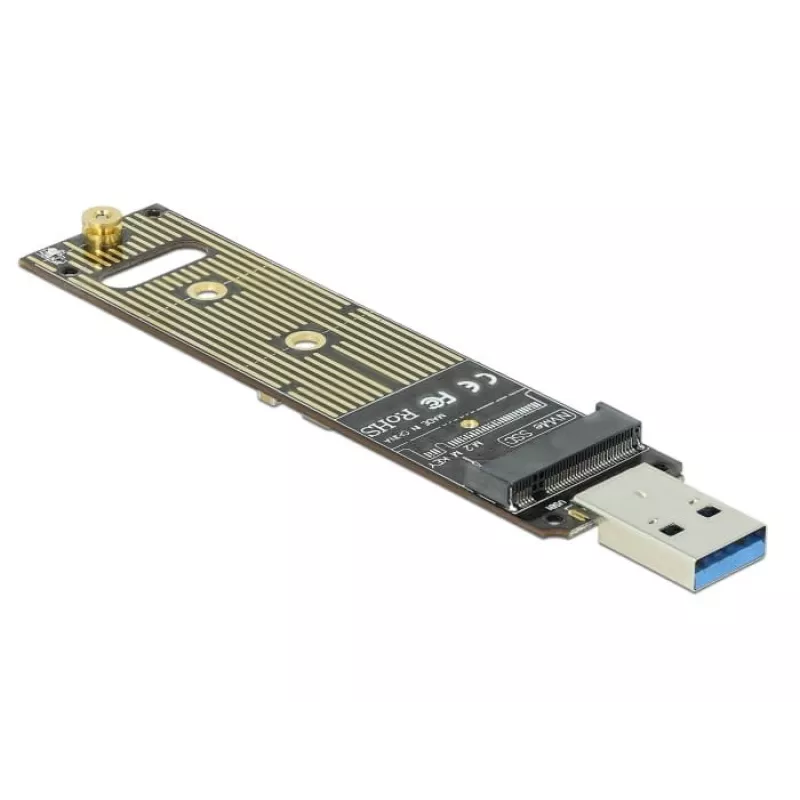

This Internal M.2 Adapter DeLOCK 64069 enables installation of an M.2 PCIe NVMe SSD in 2280, 2260 and 2242 form factors and connects to a PC or laptop via USB when required. The adapter supports PCIe interface data transfer up to 10 Gbit/s and includes LEDs for activity and power. Its compact printed‑circuit design (110 mm x 22 mm x 6 mm) and open construction make it especially suitable for testing and temporary setups.

Advantages

The DeLOCK 64069 supports high‑speed PCIe data transfer up to 10 Gbit/s and provides visual status indication via power and activity LEDs. Its compact internal PCB design accepts M.2 2280/2260/2242 NVMe SSDs directly without an enclosure, allowing easy access for installation or diagnostics. The adapter is compatible with common Windows versions and fits into test benches or internal system setups where an exposed M.2 connection is required.

Suitable for

• Testing and benchmarking M.2 NVMe SSDs
• Temporary installation in desktops and test rigs
• Diagnostics and drive replacement procedures

Key specifications

• Model: DeLOCK 64069
• Supported M.2 sizes: 2280, 2260, 2242
• Host interface: PCIe
• Maximum data rate: up to 10 Gbit/s
• Indicators: power and activity LEDs
• Dimensions: 110 mm x 22 mm x 6 mm
• Product colour: green
• Compatibility: Windows 10, 8.1, 7

How to use

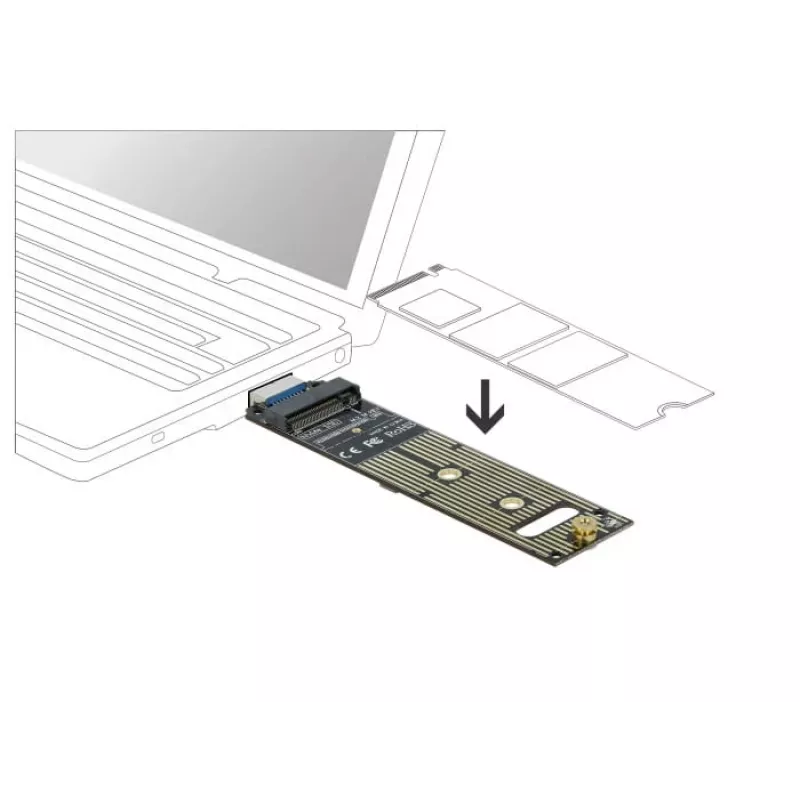

Install the M.2 NVMe SSD in the corresponding 2280/2260/2242 slot on the adapter and secure it according to the board’s mounting point. Connect the adapter to the host system via the appropriate USB or PCIe connection as required by your setup. Power on the system and verify LED indications for power and activity. Use the operating system’s disk management or benchmarking tools to initialise, format or test the installed SSD.

Recommendations

For testing and diagnostics, use the adapter without an enclosure and ensure stable host connections. Handle the PCB and SSD with anti‑static precautions. Do not expose the open adapter to mechanical stress or liquids; use only supported M.2 sizes and compatible operating systems.
