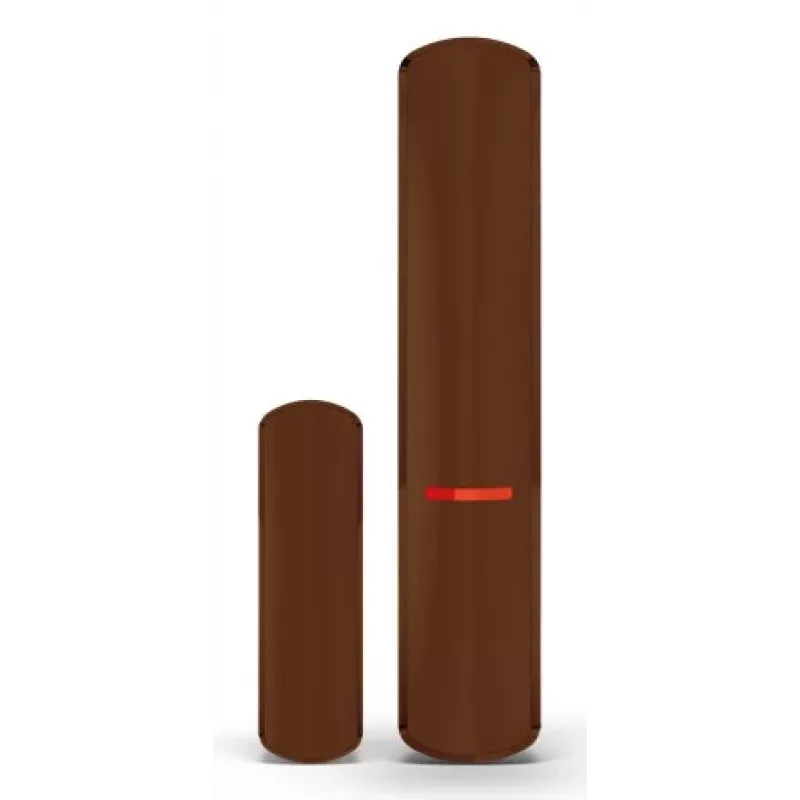

Sisälämpötila-anturi vapaasti seisova Satel AXD-200 paristo CR123A

AXD-200 is a multifunction device that operates within the ABAX 2/ABAX two-way wireless system and conforms to EN 50131 Grade 2. It is a freestanding indoor temperature sensor powered by a CR123A battery with an expected maximum battery life of up to 2 years. The sensor has compact dimensions (20 mm width, 102 mm depth, 23 mm height) and supports multiple detection modes selectable before enrolling the device into the controller.

Advantages

The AXD-200 combines temperature measurement with flexible configuration options — it can function in one of seven modes, including magnetic contact, dual-channel magnetic contact, magnetic contact with roller shutter input, shock detector combined with magnetic contact, reorientation sensor, temperature detector, or flood detector. Mode selection is done by tapping the detector enclosure, allowing quick reconfiguration without internal access. The device is compatible with the ABAX 2/ABAX two-way wireless system and meets EN 50131 Grade 2 security requirements.

Suitable for

• Indoor temperature monitoring in homes and small commercial premises
• Integration into ABAX 2/ABAX wireless alarm and automation systems
• Use as a magnetic contact or shock/reorientation sensor in alarm installations
• Detection of floods or roller-shutter states when configured accordingly

Key specifications

• Model: AXD-200 (MPN: AXD-200BR)
• Product type: Freestanding indoor temperature sensor
• Wireless system: ABAX 2 / ABAX two-way
• Compliance: EN 50131 Grade 2
• Power source: CR123A battery (up to 2 years battery life)
• Dimensions: 20 mm (W) × 102 mm (D) × 23 mm (H)
• Modes: 7 selectable modes (magnetic contact, dual channel magnetic contact, magnetic contact with roller shutter input, shock + magnetic contact, reorientation, temperature, flood)
• EAN: 5905033336582

How to use

Before enrolling the AXD-200 into the controller, choose the required operating mode by tapping the detector enclosure in the pattern specified by the manufacturer. After mode selection, follow the controller’s enrollment procedure to add the device to the ABAX 2/ABAX system. Install the CR123A battery, place the freestanding sensor in the intended indoor location, and verify communication and correct operation via the system controller or management interface.

Recommendations

Install the device indoors away from direct heat sources or drafts for accurate temperature readings. Replace the CR123A battery according to system alerts or before the end of its expected life. Select and confirm the operating mode prior to enrollment; changing the mode requires tapping the enclosure as described in the product manual and should be done before pairing with the controller.
