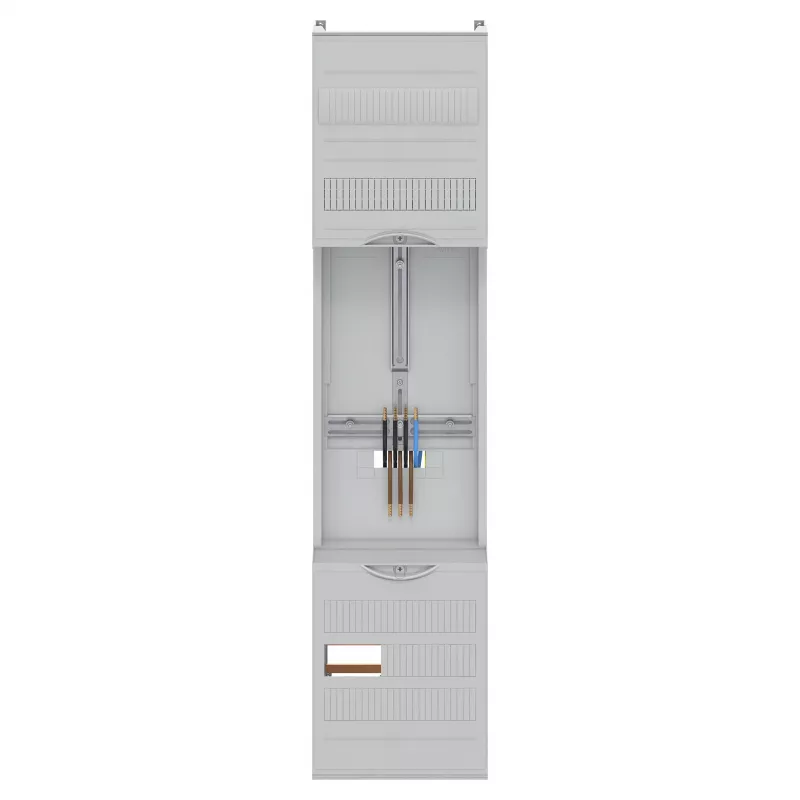

Striebel & John mittarikenttä 7RE 1ZDF17C1 esikokoonpantu 2CPX054148R9999

The Striebel & John Meter Panel 7RE 1ZDF17C1 is a pre-wired, high-quality meter panel designed for residential and commercial electrical installations. It features 1 eHZ meter place and a distribution field with 60 TE (12 TE per row, 5 rows), ensuring efficient and organized power distribution. The panel is rated for 63 A, 230/400 V AC, and comes with a 5-pole busbar system and main line branch terminal (HLAK). Manufactured from galvanized steel sheet, it offers IP2XC protection and VDE approval, guaranteeing safety and reliability.

Advantages

Pre-wired for quick installation, saving time and reducing wiring errors. The integrated busbar system simplifies connections and ensures secure power distribution. Compact design with ample module space allows for flexible configuration of circuit breakers and other components. VDE-certified for peace of mind.

Suitable for

• Residential electrical panels
• Commercial building installations
• Meter cabinets for eHZ meters
• Distribution boards requiring 60 TE capacity

Key specifications

• Product Type: Meter Panel (Zählerfeld)
• Configuration: 1 eHZ meter place + 1 distribution field
• Rated Current: 63 A
• Rated Voltage: 230/400 V AC
• Connection System: 5-pole busbar
• Distribution Field: 5 rows, 12 TE each, total 60 TE
• Main Line Terminal: HLAK
• Protection Class: IP2XC
• Material: Galvanized steel sheet
• Standards: VDE-approved
• Mounting: Built-in / flush-mounted

Recommendations

For optimal performance, use with compatible eHZ meters and circuit breakers. Ensure installation by a qualified electrician. This panel is ideal for new constructions or upgrades where pre-wiring and modularity are desired.
