Suunta-antenni DeLOCK 12002

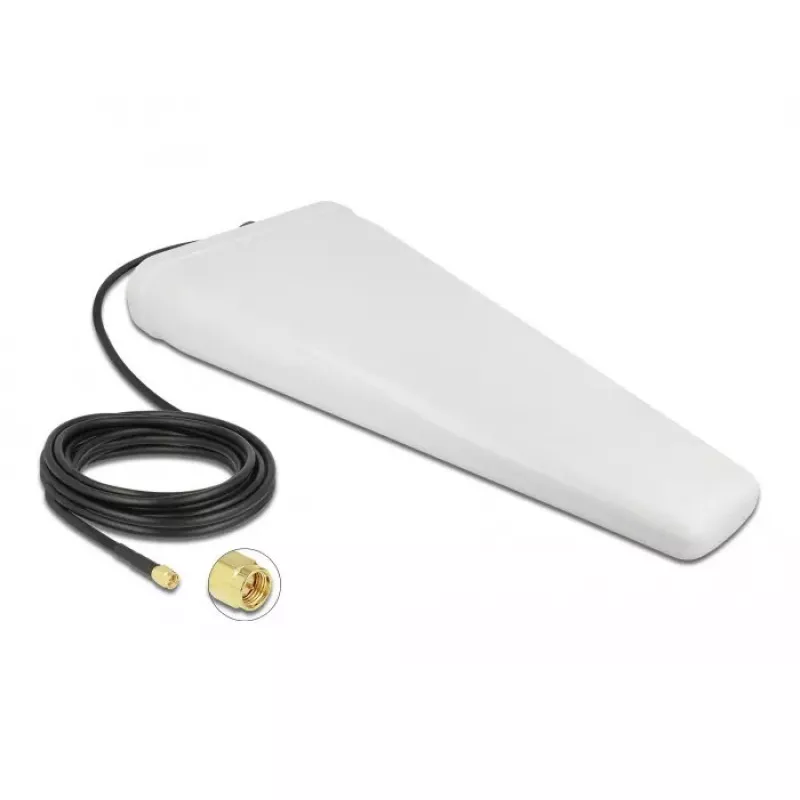

The DeLOCK 12002 is a directional LTE antenna designed to improve reception for specific frequency bands between 1.71 and 2.7 GHz. With a maximum gain of 11 dBi, vertical polarization and an SMA connector, it is suitable for indoor and outdoor use to support LTE and other radio standards operating in the same frequency range.

Advantages

The antenna provides focused signal gain (11 dBi) for directed coverage and reduced interference from unwanted directions. Its 50 Ω impedance and SMA connector allow compatibility with a wide range of routers, modems and radio devices. The device supports multiple protocols that operate within or near its frequency range, including GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

Suitable for

• Improving LTE reception in a specific direction
• Use with routers or modems that accept SMA antenna connections
• Applications requiring directional coverage for cellular or adjacent radio bands

Key specifications

• Frequency band: 1.71 - 2.7 GHz
• Maximum gain: 11 dBi
• Polarization: vertical
• Impedance: 50 Ω
• Connector: SMA
• Dimensions (W×D×H): 210 × 450 × 65 mm
• Colour: white

How to use

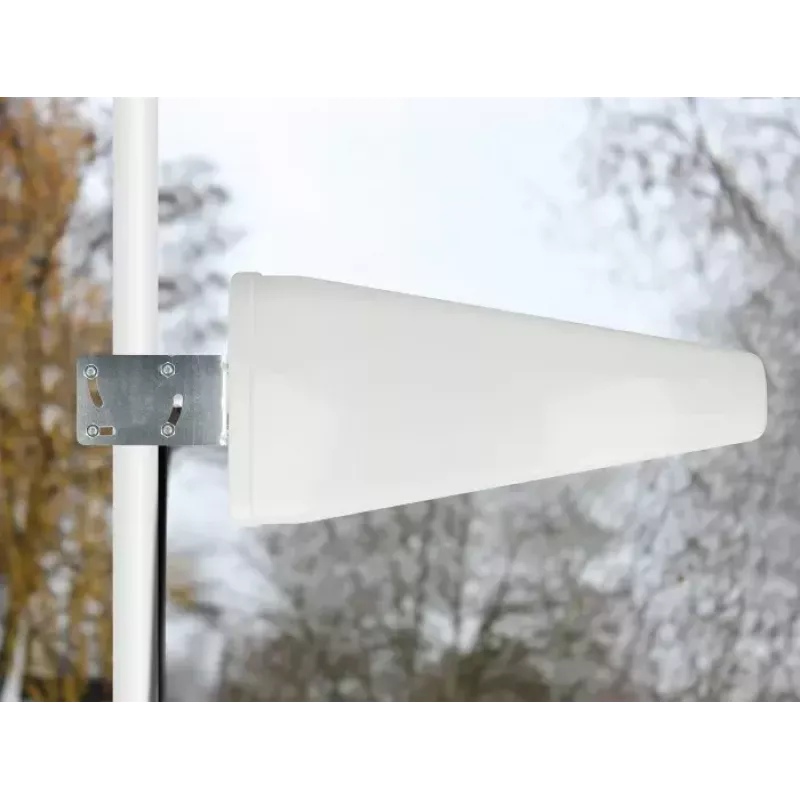

Mount the antenna so its main lobe points toward the desired signal source for best directional reception. Connect the SMA connector to the external antenna port of your router, modem or radio device following the equipment manufacturer’s instructions. Ensure the antenna is securely fastened and, if installed outdoors, protected from extreme weather according to local installation practices.

Recommendations

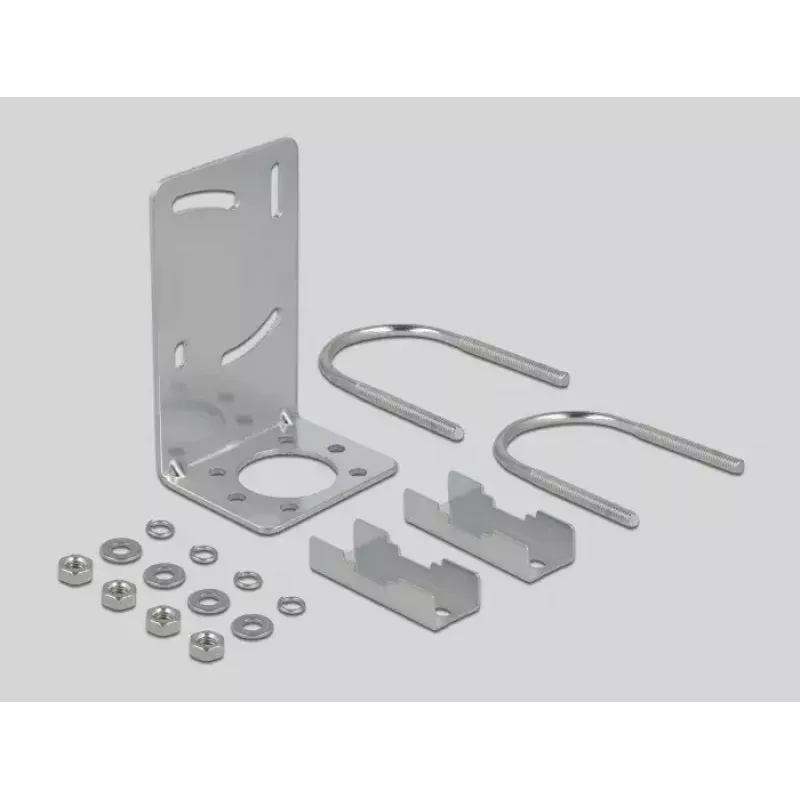

For optimal results, perform signal tests and adjust the antenna orientation to maximise received signal strength. Verify compatibility with your device’s frequency bands and use appropriate mounting hardware to avoid mechanical stress on the connector.
