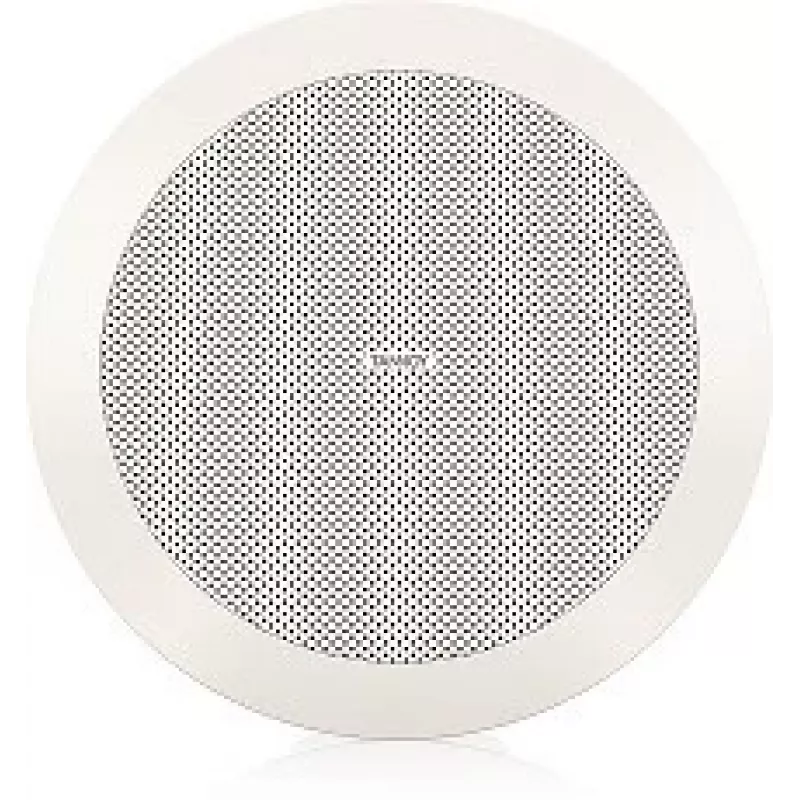

Tannoy CVS 301 3 inch täysalueinen kattokaiutin (valkoinen)

The Tannoy CVS 301 is a high-performance 3-inch full range ceiling loudspeaker designed for professional installation applications. Engineered for exceptional speech intelligibility and full-range music reproduction, this compact speaker delivers clear, natural sound in a discreet, low-profile package. Ideal for background music and paging in commercial environments, the CVS 301 combines Tannoy's renowned audio quality with easy installation and reliable performance.

Advantages

Compact 3-inch full range driver with polypropylene cone and butyl rubber surround ensures durability and consistent sound quality. The 120° conical dispersion provides wide, even coverage, reducing the number of speakers needed. Multi-tap transformer for 100V and 70V line systems allows flexible power selection (15W, 7.5W, 3.75W, 1.87W). Euroblock input connectors simplify wiring. The white (RAL 9010) finish blends seamlessly with most ceilings.

Suitable for

• Retail stores and shopping malls
• Offices and conference rooms
• Hotels and restaurants
• Hospitals and healthcare facilities
• Educational institutions
• Background music and paging systems

Key specifications

• Speaker Type: Full Range Ceiling Loudspeaker
• Driver Size: 3 inch (75 mm)
• Frequency Response (-3dB): 100 Hz - 20 kHz
• Power Handling (Program): 30 W (8 Ohm)
• Nominal Impedance: 8 Ohms
• Transformer Taps (100V): 15W, 7.5W, 3.75W
• Transformer Taps (70V): 15W, 7.5W, 3.75W, 1.87W
• Sensitivity (1W/1m): 85 dB
• Maximum SPL (Peak): 100 dB
• Dispersion Angle: 120° Conical
• Cutout Diameter: 170 mm (6.69 inches)
• Mounting Depth: 105 mm (4.13 inches)
• Enclosure Material: ABS Baffle, Zinc-plated Steel Back Can
• Grille Material: Perforated Steel
• Color: White (RAL 9010)
• Input Connectors: Euroblock
• Safety Certifications: UL 1480, UL 2043, CE
• Driver Material: Polypropylene Cone with Butyl Rubber Surround

Recommendations

For optimal performance, pair the CVS 301 with a compatible amplifier and ensure proper cutout and mounting depth. Suitable for use in plenum spaces (UL 2043).
