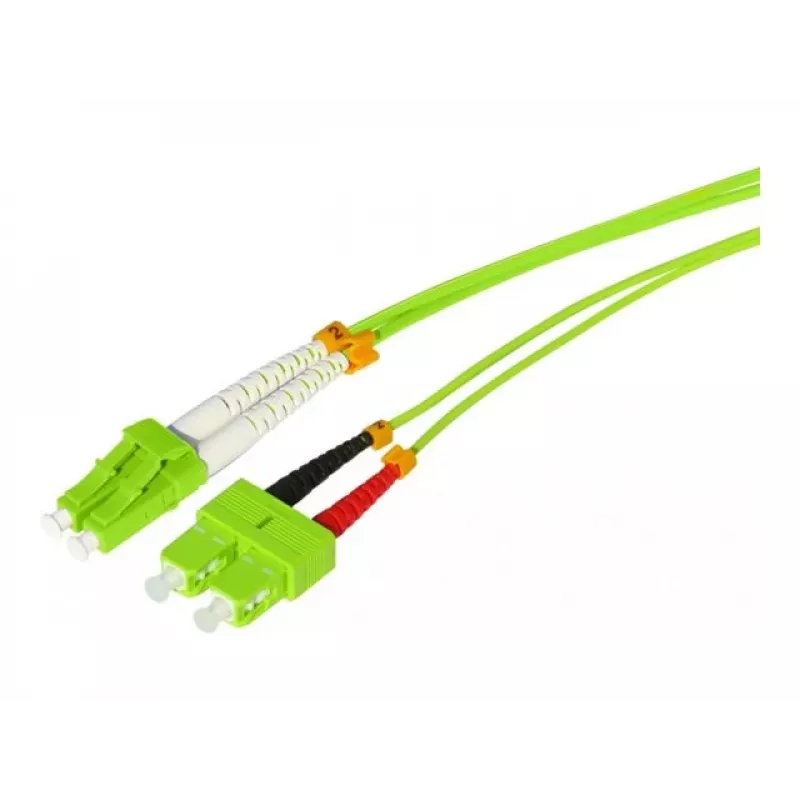

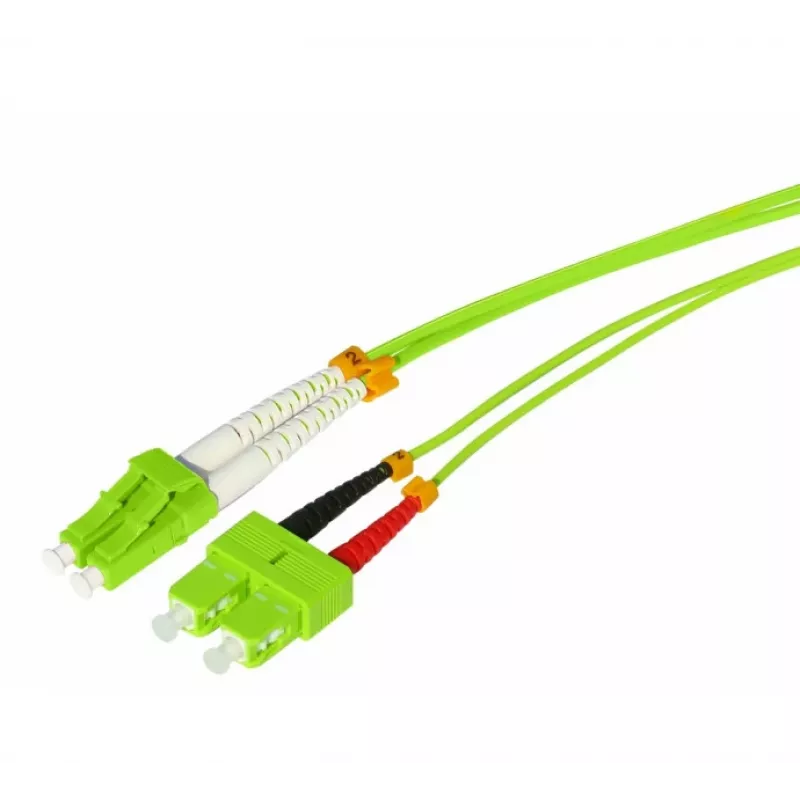

Tecline HD OM5 kuitu-patchkaapeli, LC Duplex - SC Duplex, 50/125 µm, limetinvihreä, 10 m 796LS10

Fibre optic patch cable with OM5 multimode fibre, LC Duplex to SC Duplex connectors, and lime green LSZH jacket. Supports shortwave wavelength division multiplexing (SWDM4) for high-speed data transmission up to 400 Gbps in data centres and enterprise networks.

Advantages

OM5 fibre is optimised for SWDM4, enabling four wavelengths over a single fibre pair to multiply capacity. The lime green jacket provides instant identification of OM5 cabling. LSZH jacket material reduces smoke and toxic fumes in case of fire. Duplex connectors with ceramic ferrules ensure precise alignment and low insertion loss.

Suitable for

• Data centre interconnects and backbone cabling
• High-speed Ethernet (40/100/400 Gigabit)
• Storage area networks (SAN) and server links
• Telecommunications rooms and campus networks

Key specifications

• Fibre type: OM5 multimode, 50/125 µm core/cladding
• Connectors: LC Duplex to SC Duplex
• Length: 10 m
• Jacket colour: lime green
• Jacket material: LSZH
• Effective modal bandwidth: 2800 MHz·km @ 850 nm, 1500 MHz·km @ 953 nm
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Operating temperature: -20 °C to 70 °C

Recommendations

Pair with OM5-compatible transceivers and patch panels for best performance. Use bend-insensitive fibre if tight routing is required.
