BlueOptics SFP3132FU10MK InfiniBand-kuituvalokaapeli 10 m LC SC

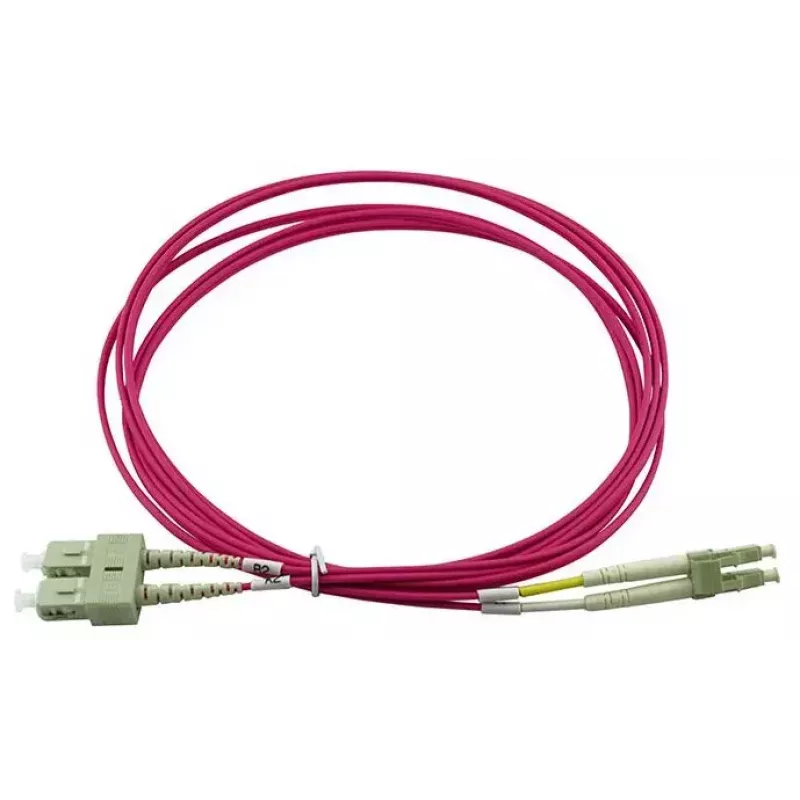

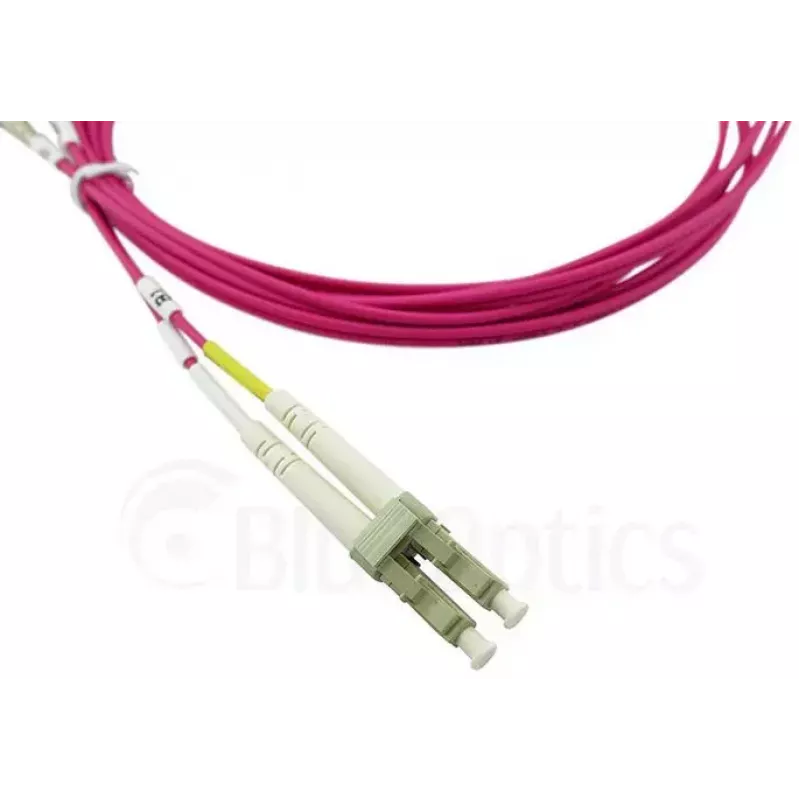

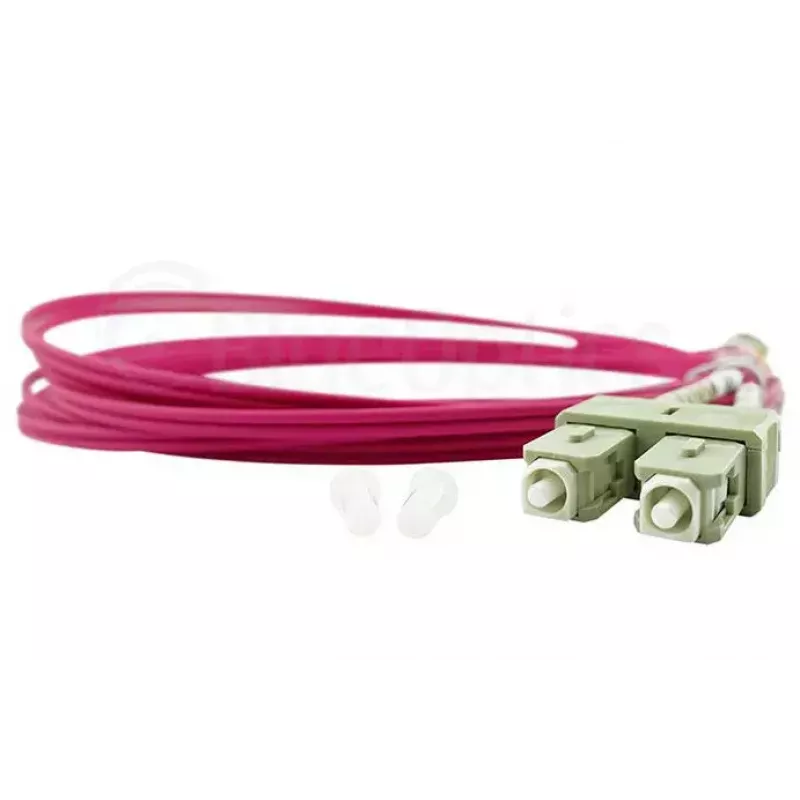

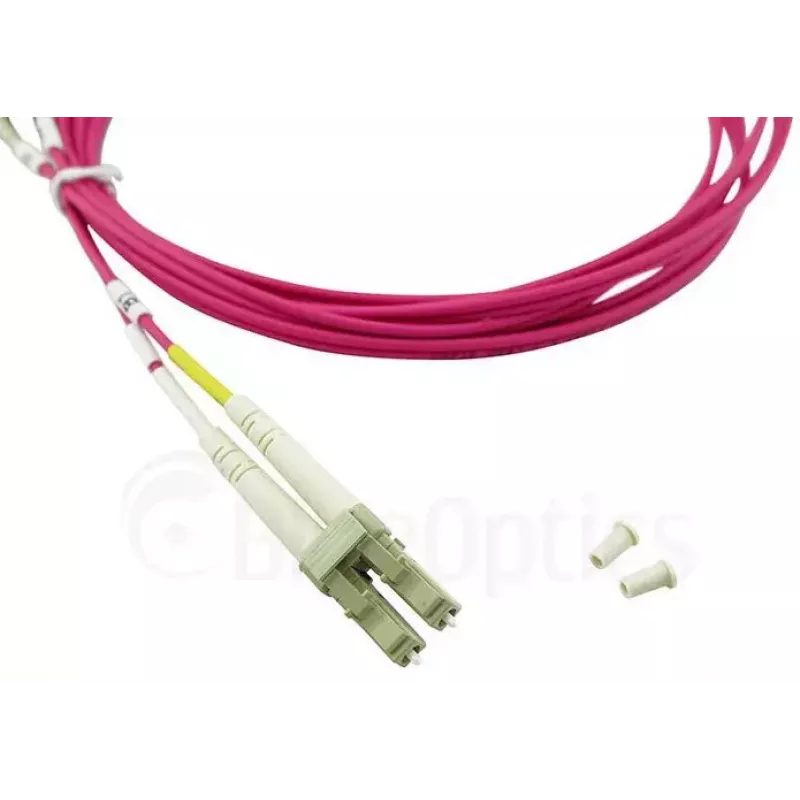

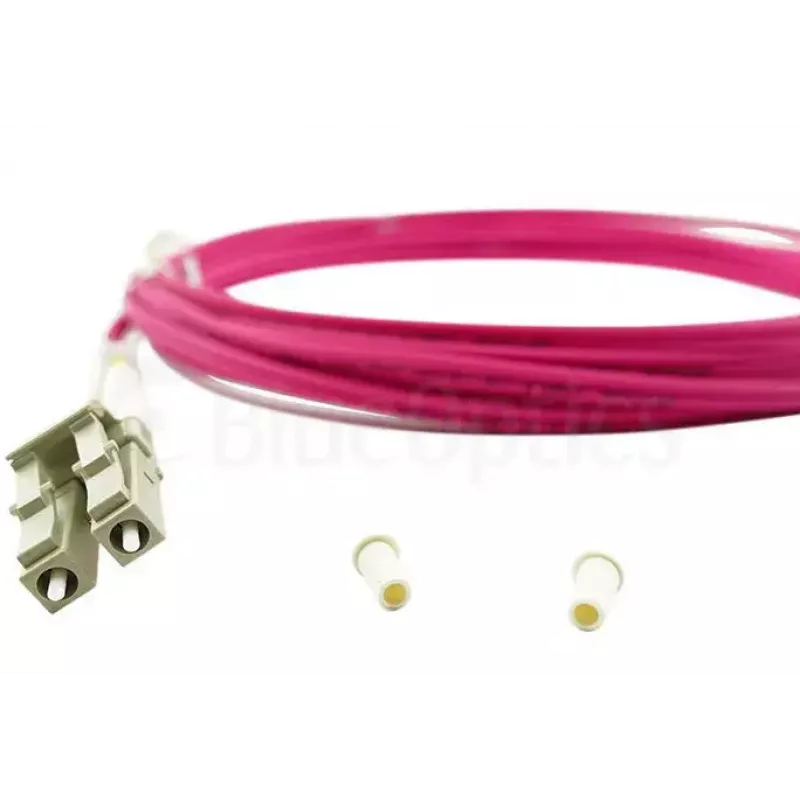

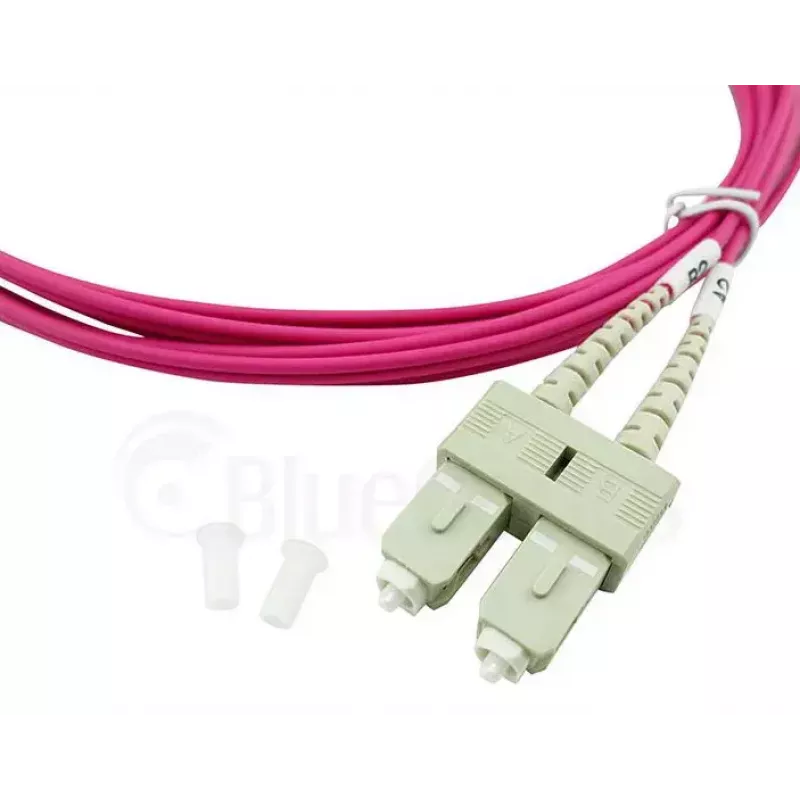

BlueOptics SFP3132FU10MK is a 10 meter OM4 duplex fiber optic patch cord with LC/UPC to SC/UPC connectors and laser-optimized multi-mode fiber (G50/125 µm). The cable is magenta-coloured and designed for 850 nm transmission, suitable for connecting patch panels, InfiniBand transceivers and other optical devices. The jacket is LSZH (low smoke zero halogen) to reduce smoke and halogen release in case of fire.

Advantages

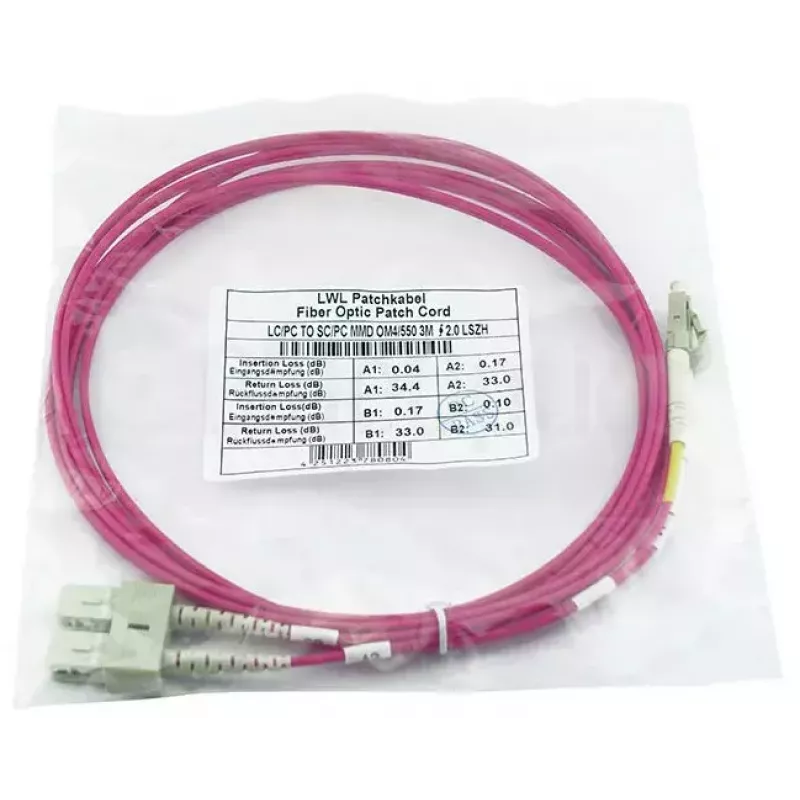

The OM4 multimode fiber provides low attenuation (2.5 dB/km) and high return loss, with connector polish options (UPC or 8° APC) available to further optimize return loss. High-quality branded fiber and factory-attached connectors with zirconia ceramic ferrules ensure stable, low-loss connections and a rated mating life of up to 1500 cycles. Each cable is tested with interferometer and OTDR and shipped with a measurement protocol of insertion loss and return loss.

Suitable for

Key specifications

How to use

Inspect connectors and fiber ends before use to ensure cleanliness and no visible damage. Align and insert the LC and SC connectors into their respective transceiver or panel ports until they click; avoid excessive bending of the fiber beyond its minimum bend radius. For reliable performance, follow the transceiver and patch panel manufacturer instructions when connecting or disconnecting, and store unused ends with dust caps.

Recommendations

Perform regular cleaning of connector endfaces with appropriate fiber cleaning tools and verify insertion loss with test equipment after installation. Use the included measurement protocol to compare expected values and request custom lengths if required for optimal cable management.
