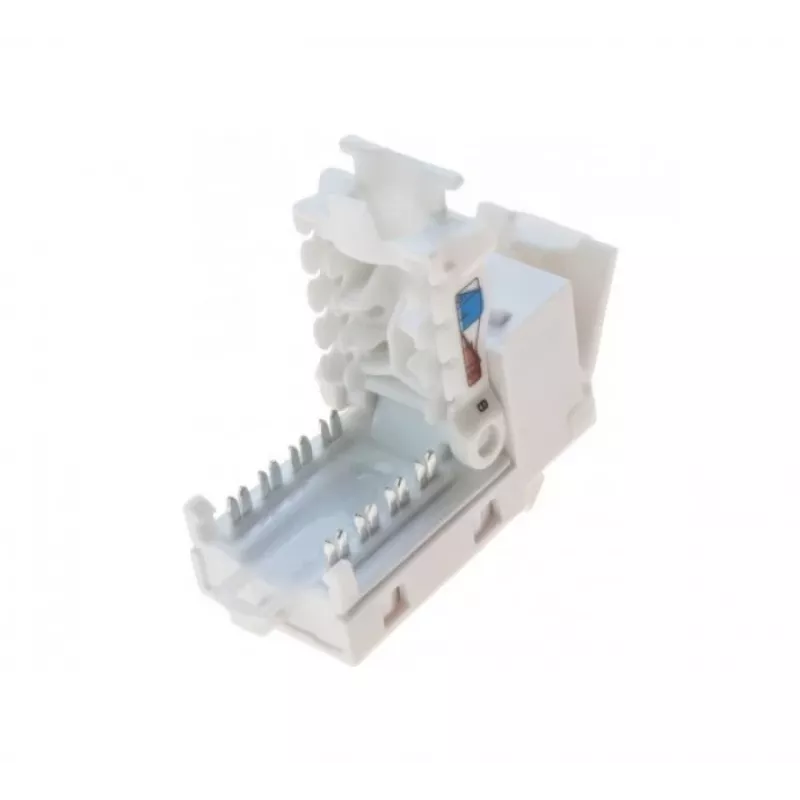

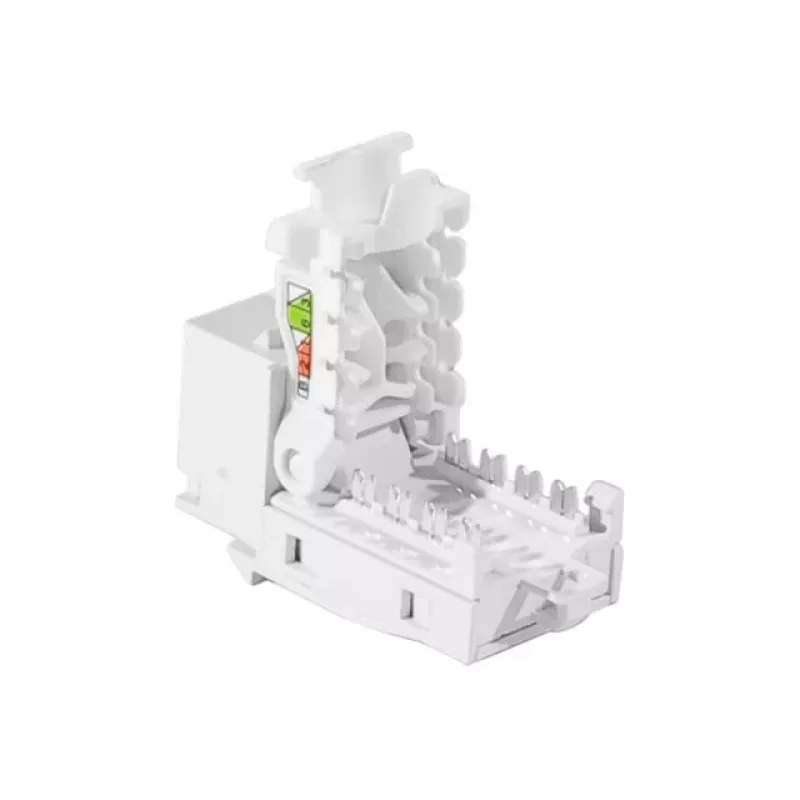

TECLINE RJ45 Keystone Jack, Cat.6 UTP, työkaluton, valkoinen 272883

This RJ45 keystone jack delivers reliable Gigabit Ethernet performance in a compact snap-in module. It supports data rates up to 1000 Mbps and a bandwidth of 250 MHz, making it suitable for demanding network installations.

Advantages

Tool-free IDC termination speeds up installation without sacrificing connection quality. The unshielded Cat.6 design is ideal for typical office and home environments, while gold-plated contacts ensure long-term signal integrity.

Suitable for

• Modular patch panels and faceplates
• Surface-mount boxes and IP44 enclosures
• Structured cabling in offices and residential buildings

Key specifications

• Connector type: RJ45 (8P8C)
• Performance: Cat.6 UTP
• Termination: Tool-free IDC
• Wiring standard: TIA/EIA 568 A/B
• Data rate: Up to 1000 Mbps
• Bandwidth: Up to 250 MHz
• Contact plating: Gold (50µ")
• Housing material: ABS plastic
• Colour: White (RAL 9010)
• Wire gauge: AWG 22-26
• Cable type: Solid and stranded
• Operating temperature: -10°C to 60°C

Recommendations

Pair with a compatible keystone faceplate or patch panel for a clean, professional network installation.
