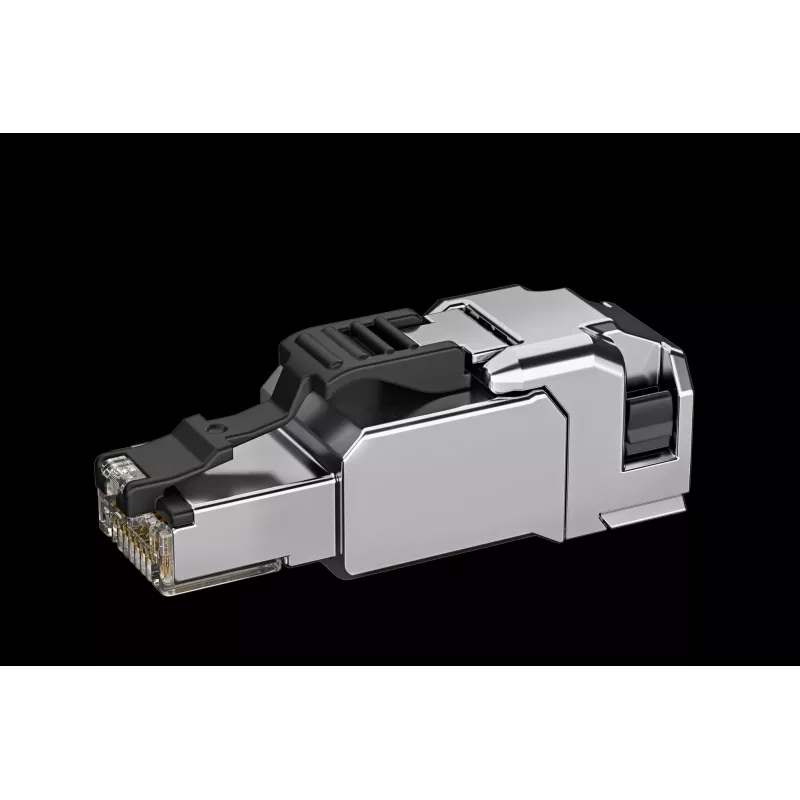

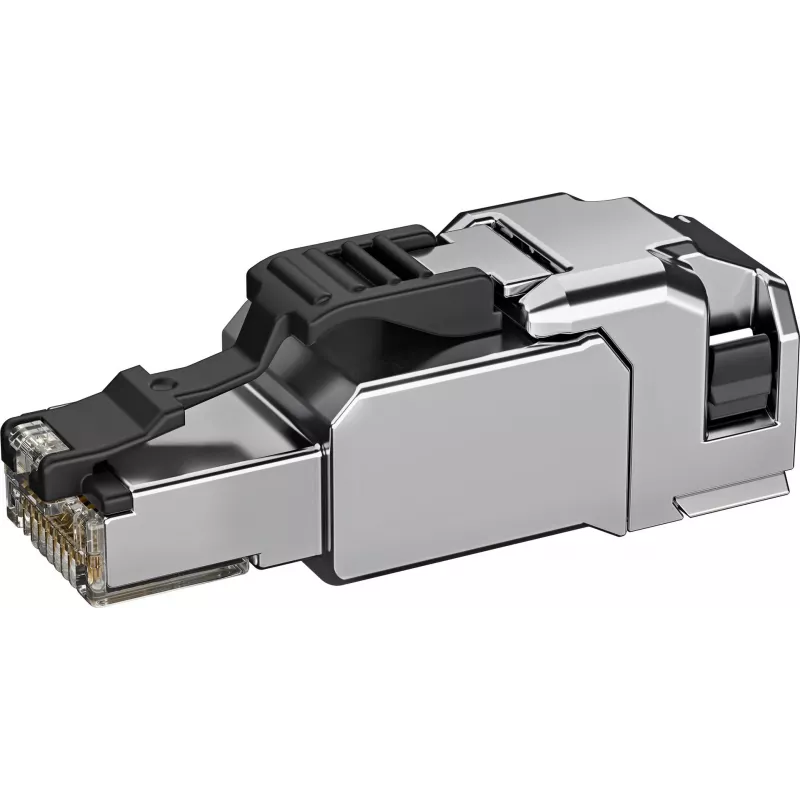

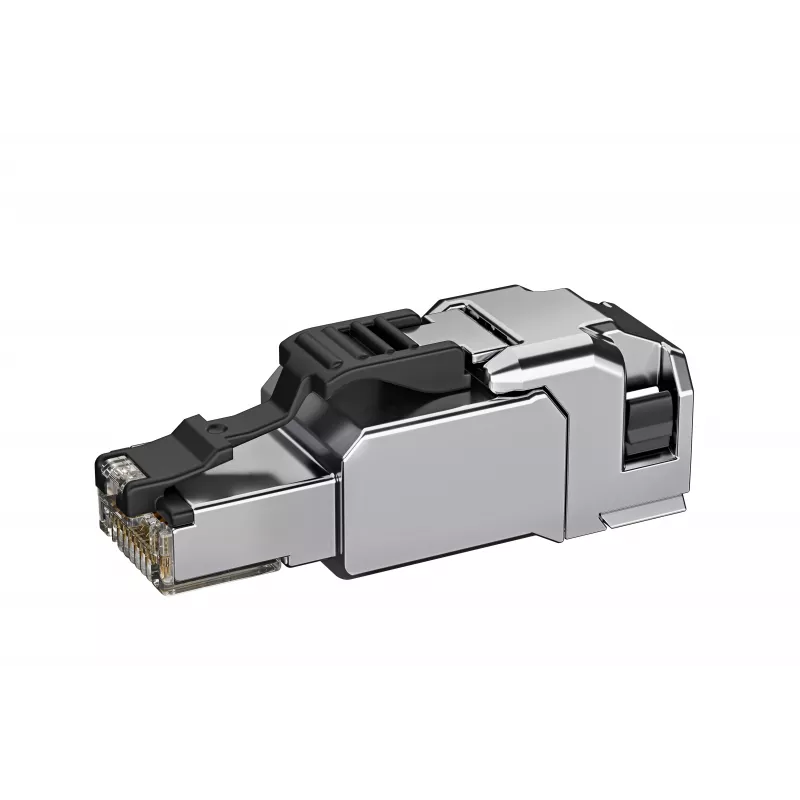

TELEGÄRTNER 100040203 RJ45 Keystone-moduuli Cat.6A suojattu työkaluton IDC

Supports 10 Gigabit Ethernet up to 500 MHz with tool-less IDC termination for solid and stranded conductors.

Overview

The TELEGÄRTNER 100040203 is a shielded Cat.6A RJ45 keystone module for high-performance network installations. It features a die-cast zinc housing for robust shielding and a tool-less IDC termination that accepts solid wires AWG 24/1 to 22/1 and stranded wires AWG 26/7 to 22/7. The module supports both T568A and T568B wiring schemes, making it versatile for various cabling standards.

What stands out

• Transmission performance up to 500 MHz, suitable for 10GBASE-T.
• Gold-plated phosphor bronze contacts with ≥0.8 µm plating for reliable connectivity and ≥750 mating cycles.
• Supports Power over Ethernet up to 4PPoE (IEEE 802.3bt).
• Operating temperature range from -40 °C to +70 °C for demanding environments.
• Keystone format compatible with AMJ-S mounting systems.

Technical details

• Category: Cat.6A
• Shielding: Shielded (STP)
• Connector type: RJ45 jack
• Termination: Tool-less IDC
• Wiring scheme: T568A/B universal
• Frequency range: Up to 500 MHz
• Compatible wire gauge: Solid AWG 24/1–22/1, stranded AWG 26/7–22/7
• Housing material: Die-cast zinc (shielding), plastic (housing)
• Contact material: Phosphor bronze with gold plating (≥0.8 µm)
• Mating cycles: ≥750
• IDC termination cycles: ≥10
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Operating temperature: -40 °C to +70 °C
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Mounting standard: Keystone format (AMJ-S compatible)

Our verdict

A high-quality shielded keystone module that delivers reliable 10G performance with easy tool-less installation, ideal for professional network deployments.
