DELOCK MDR-liitin 50-pin juotosliitäntä kotelolla, musta, 41,1×50×12,7 mm

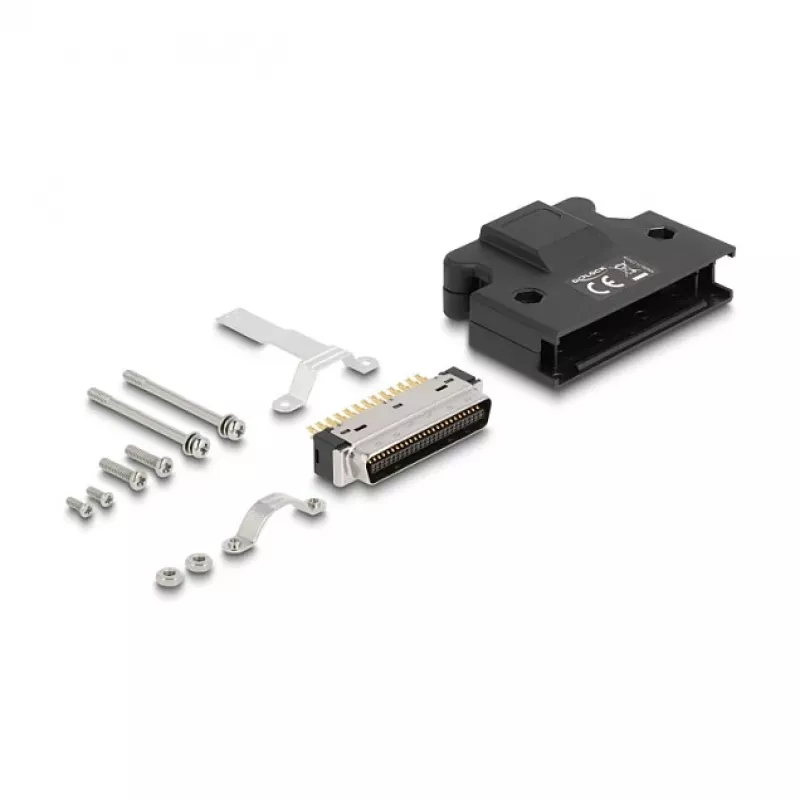

DELOCK MDR male 50‑pin solder connector with housing, black, 41.1×50×12.7 mm is a shielded Mini D Ribbon (MDR) male connector designed for solder termination of up to 50 contacts. The connector is supplied with a plastic enclosure that protects the interface from dirt and mechanical damage and provides a secure mounting solution for internal cable assemblies and device I/O requiring an MDR 50‑pin connection.

Advantages

The plastic housing offers protection against contamination and impact while the screw‑on strain relief secures the cable within the enclosure, reducing stress on soldered contacts. The compact black MDR male format is suitable for space‑constrained installations and standard MDR interfaces.

Suitable for

• Internal cable assemblies
• Device I/O panels with MDR 50‑pin interfaces
• Cable mounting where a soldered MDR connection is required
• Repairs or replacements of existing MDR 50‑pin connections

Key specifications

• Type: MDR (Mini D Ribbon) male, 50‑pin
• Termination: solder connection
• Housing material: plastic
• Color: black
• Dimensions: 41.1 × 50 × 12.7 mm (W × D × H)
• Quantity: 1 pc
• Brand: DELOCK, MPN: 66635, EAN: 4043619666355

How to use

Prepare the cable and tin the conductor ends according to the wire size and soldering standards. Position each conductor on the corresponding solder pad of the MDR male connector and solder carefully to ensure reliable electrical contact. Assemble the plastic housing around the connector, route the cable through the screw‑on strain relief and fasten the strain relief to fix the cable in place. Verify all connections and perform continuity tests before installing the assembly into the device.

Recommendations

Use appropriate soldering tools and observe ESD precautions. Ensure correct pin mapping and secure the strain relief to prevent mechanical stress on soldered joints. For permanent installations, verify mechanical fit and clearance with the device I/O panel dimensions.
