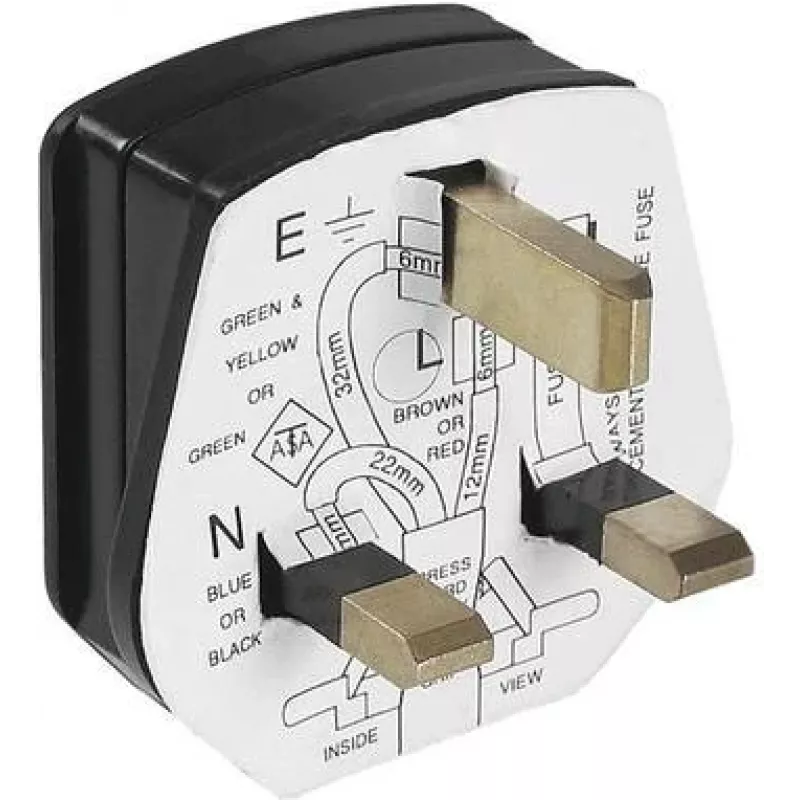

Sähköpistoke Bachmann 910.176, 3-napainen, 250 V AC, 13 A, musta muovikotelo

Bachmann 910.176 is a three-pole electrical power plug with a black plastic housing, designed for alternating current mains up to 250 V and a maximum continuous current of 13 A. The compact design accepts cables up to 3G 1.50 mm2 and features an integrated miniature 13 A fuse and built-in strain relief to protect the connection from mechanical stress. The plug is suitable for situations requiring a reliable three-conductor connection in industrial, workshop and audio/video installations.

Advantages

The plastic housing provides electrical insulation and reduces weight compared with metal alternatives while maintaining durability for typical installation environments. An integral 13 A miniature fuse offers overcurrent protection directly at the plug, simplifying circuit protection for connected equipment. The built-in strain relief secures the cable entry, reducing the risk of conductor loosening and improving long-term contact reliability. Compact dimensions allow installation in confined spaces and compatibility with common three-conductor cable types (3G 1.50 mm2).

Suitable for

• Powering small machinery and hand tools in workshops
• Supplying audio and video equipment in event or studio setups
• Temporary power connections for exhibition stands or mobile installations
• Applications requiring three-conductor wiring with basic overcurrent protection

Key specifications

• Number of poles: 3
• Rated voltage: 250 V AC
• Rated current: 13 A
• Cable capacity: up to 3G 1.50 mm²
• Housing material: plastic
• Integrated protection: 13 A miniature fuse
• Strain relief: built-in

How to use

Before installation, disconnect power to the circuit and verify compatibility with the supply voltage and current requirements of the connected equipment. Strip the cable conductors to the appropriate length, insert them into the corresponding terminals according to the local wiring color code, and tighten the terminal screws to the specified torque. Fit the housing and secure the built-in strain relief around the cable to prevent movement. Insert the plug into a compatible receptacle and ensure the miniature fuse is the correct rating and correctly seated before restoring power.

Recommendations

Use cables sized up to 3G 1.50 mm² and replace the miniature fuse only with the same 13 A type. Avoid using the plug in permanently damp or corrosive environments unless additional protection is provided. Periodically inspect the housing, terminals and strain relief for signs of wear or damage and replace the plug if any defect affecting safety is found.
