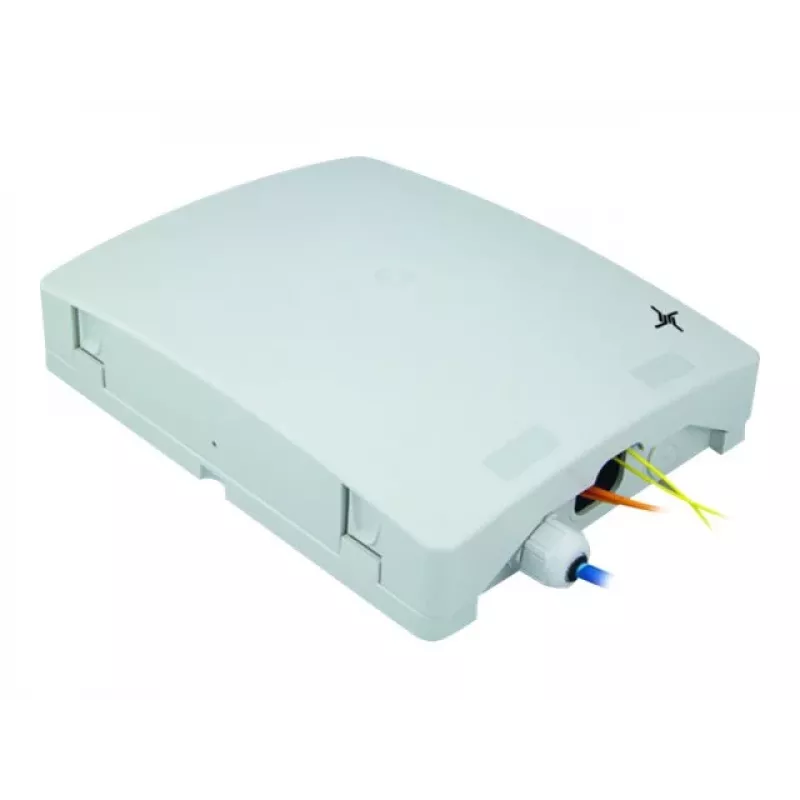

Telegärtner ODB54 kuituliitäntärasia kotelo, IP54, seinäasennus, vaaleanharmaa (RAL 7035)

The Telegärtner ODB54 is a high-quality fiber optic splice box housing designed for indoor and outdoor use. With its robust UV-resistant PC/ABS plastic construction and IP54 protection, it ensures reliable performance in various environments. The housing supports up to 96 fibers using 4 splice trays and offers easy wall mounting, making it ideal for FTTH, distribution, and closure applications.

Advantages

Compact and robust design with lockable housing for security. Integrated strain relief and cable management simplify installation. Compatible with Telegärtner S04700Axxx splice trays for flexible fiber organization.

Suitable for

• Fiber optic network distribution points
• FTTH terminal boxes
• Indoor and outdoor splice closures

Key specifications

• Product Type: Fiber Optic Splice Box Housing
• Application: Indoor/Outdoor
• Mounting: Wall Mount
• Material: UV-resistant PC/ABS Plastic
• IP Protection: IP54
• Max. Splice Trays: 4
• Max. Fiber Capacity: Up to 96 fibers (with 4x 24-fiber trays)
• Main Cable Entry: 2 x M20
• Drop Cable Entry: 12 x M16
• Color: Light Grey (RAL 7035)
• Operating Temperature: -20°C to +70°C
• Security: Lockable
• UV Resistance: Yes

Recommendations

For optimal performance, use with Telegärtner S04700Axxx splice trays. Ensure proper cable sealing for outdoor installations.
