Teline Axis 01612-001

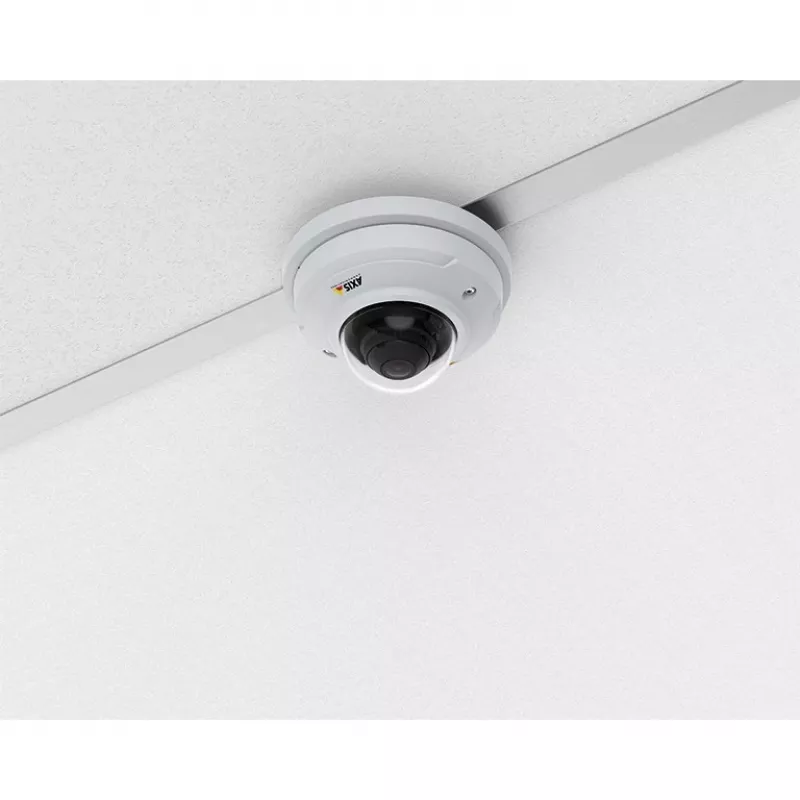

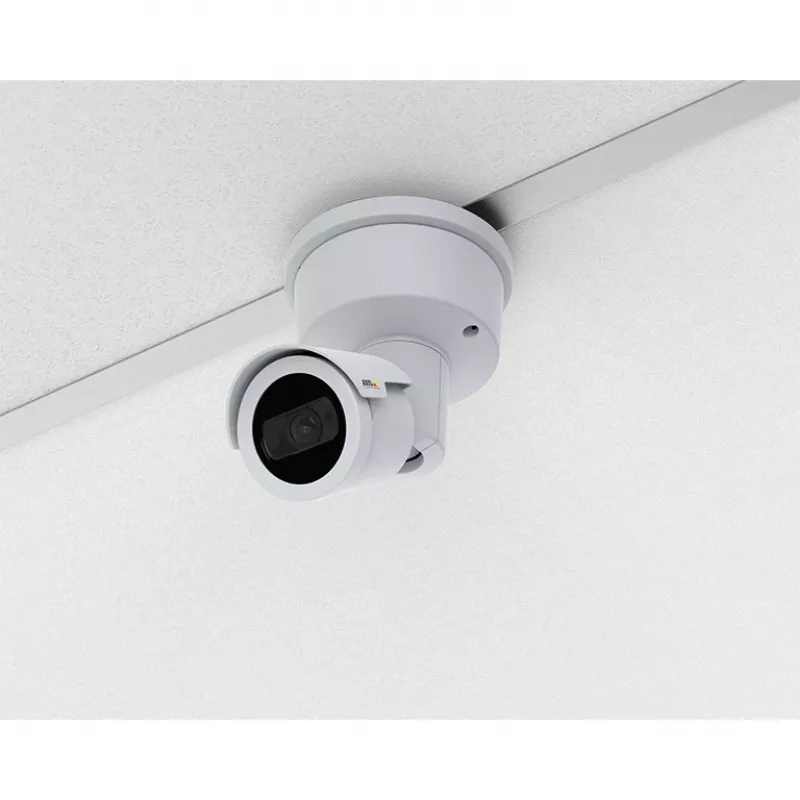

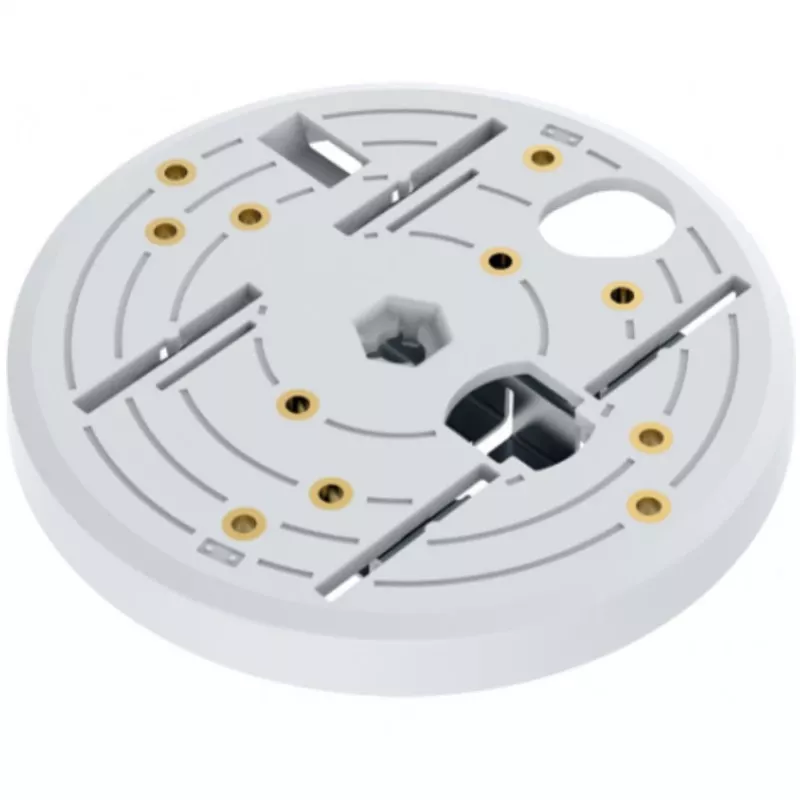

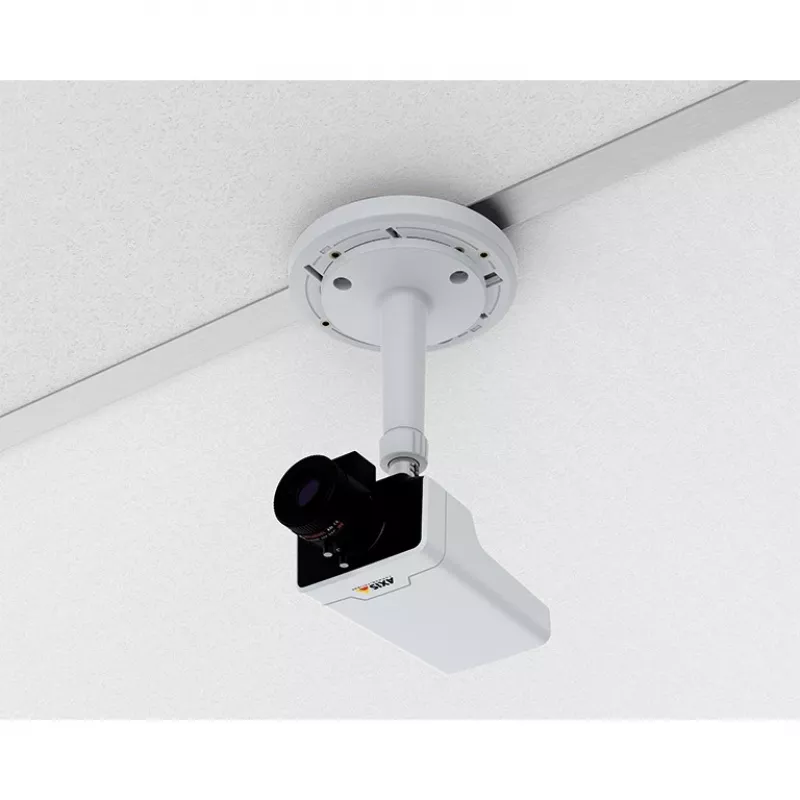

AXIS T91A23 Tile Grid Ceiling Mount (Model 01612-001) is a white ceiling mount made for installing Axis network cameras on standard drop-ceiling tile grid systems. The mount fits into the grid rails without drilling or major ceiling alteration, enabling quick installation and straightforward repositioning of the camera along the grid when coverage needs change. It is compatible with AXIS Safety Wire for an added layer of secure ceiling installation.

Advantages

The mount provides tool-free installation into tile grid rails, reducing installation time and avoiding permanent changes to the ceiling. Its design allows the camera to be repositioned along the grid easily, supporting flexible field-of-view adjustments. Compatibility with AXIS Safety Wire increases installation safety. The white finish integrates with typical ceiling tiles for a discreet appearance.

Suitable for (tasks / use cases)

• Retail stores for ceiling-mounted surveillance
• Banks and financial institutions
• Office and commercial buildings
• Educational facilities such as schools and universities

Key specifications

• Manufacturer: AXIS
• Model / MPN: 01612-001 (AXIS T91A23)
• EAN: 7331021065840
• Colour: White
• Mount type: Tile grid ceiling mount for drop ceilings
• Compatibility: Designed for Axis cameras; compatible with AXIS Safety Wire

How to use

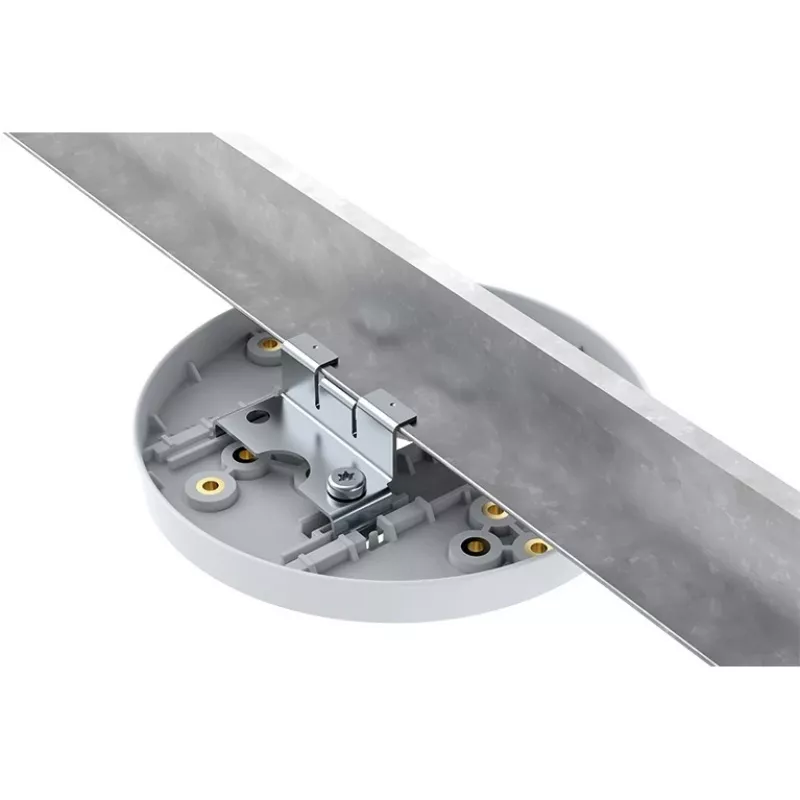

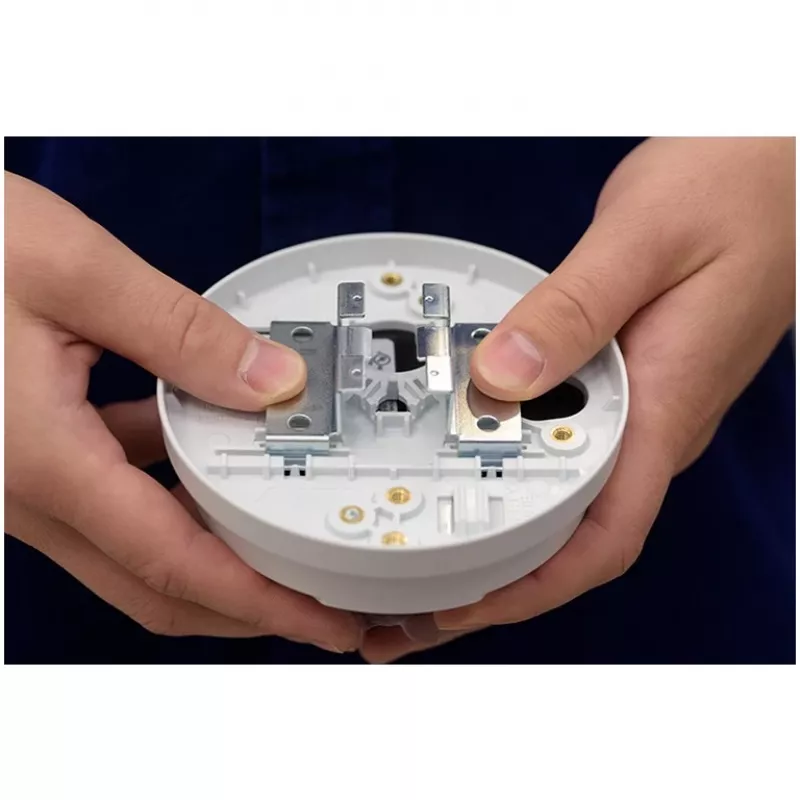

Insert the mount into the tile grid rails at the chosen location and secure the camera to the mount following the camera manufacturer’s mounting instructions. No drilling is required; minimal ceiling alteration is needed. If needed, slide the camera along the grid rails to change the field of view. Attach AXIS Safety Wire when required to provide additional fall protection and ensure compliance with site safety protocols.

Recommendations

Use the mount with compatible Axis cameras and AXIS Safety Wire for secure installations. Verify load and camera compatibility before installation and follow local building and safety regulations. For outdoor or exposed locations, confirm that the camera itself has appropriate weather protection; the mount is intended primarily for drop-ceiling tile grids.
