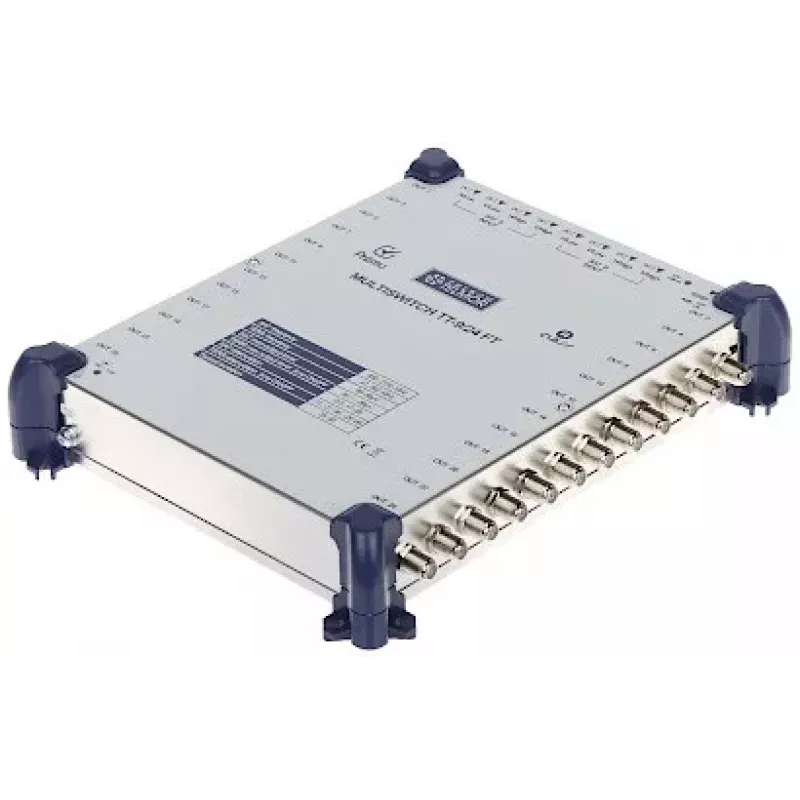

TELMOR TT-9/24-FT-PREMU multiswitch 9 tuloa / 24 lähtöä PREMU

The TELMOR TT-9/24-FT-PREMU is a high-performance multiswitch designed for distributing satellite and terrestrial TV signals in multi-dwelling units. With 9 inputs (8 satellite, 1 terrestrial) and 24 subscriber outputs, it supports up to 24 users with independent signal selection. Ideal for Quattro LNB systems, it ensures reliable signal distribution with excellent isolation and low noise.

Advantages

Supports up to 24 subscribers with independent satellite and terrestrial signal selection. Built-in power supply simplifies installation. High isolation between outputs prevents interference. Compatible with DiSEqC 2.0 control for advanced switching.

Suitable for

• Multi-dwelling buildings (apartments, hotels)
• Single-family homes with multiple TV points
• Commercial installations requiring multiple satellite feeds

Key specifications

• Number of Satellite Inputs: 8 (for 2 satellite positions or Quattro LNB)
• Number of Terrestrial Inputs: 1
• Number of Subscriber Outputs: 24
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Satellite Path Gain: 0...-5 dB
• Terrestrial Path Gain: -10...-5 dB
• Max Satellite Output Level: 100 dBµV (IMD3=35dB)
• Max Terrestrial Output Level: 90 dBµV (IMD3=60dB)
• Isolation: SAT-SAT >30 dB, SAT-TER >30 dB, Output-Output >30 dB
• LNB Power Supply: 18V DC, max 500mA
• Power Supply: Built-in, 230V AC, 50/60Hz
• Power Consumption: Max 15W (excluding LNBs)
• Switching Control: 13/18V, 0/22kHz, DiSEqC 2.0
• Terrestrial Path Type: Passive
• Connectors: F-type (all inputs/outputs)
• Operating Temperature: -20°C to +50°C

Recommendations

For optimal performance, use with a Quattro LNB and ensure proper grounding. The multiswitch is designed for indoor installation in a well-ventilated area.
