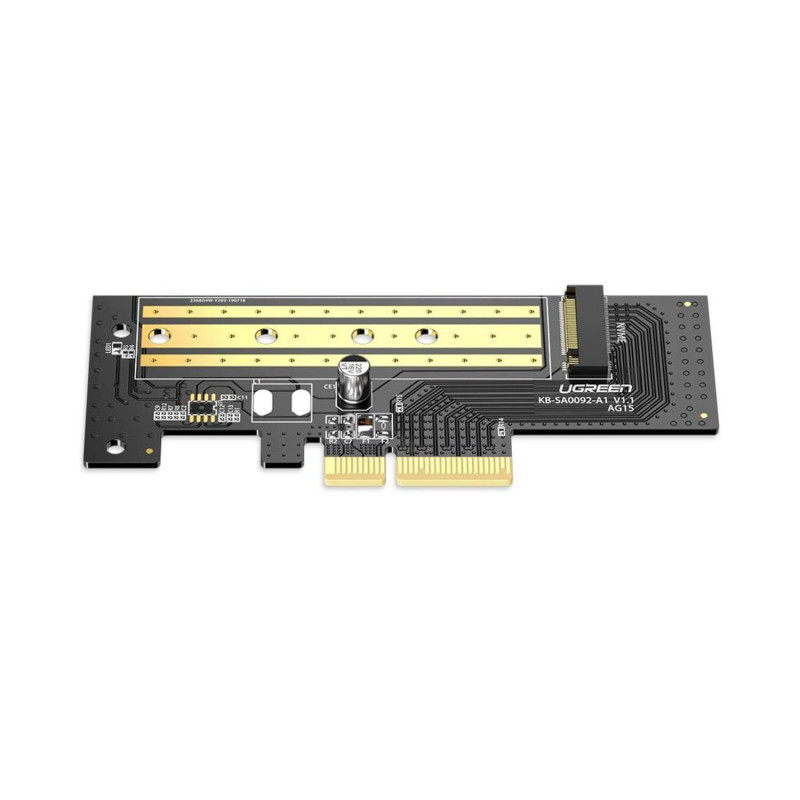

UGREEN CM302 M.2 NVMe SSD PCIe 3.0 x4 -adapterikortti (CM302-70503)

The UGREEN CM302 M.2 NVMe to PCI-E3.0X4 Express Card lets you connect an M.2 NVMe SSD to a desktop system through a PCI Express 3.0 x4 interface. It supports M.2 form factors 2230, 2242, 2260, and 2280, and is compatible with PCIe 3.0 motherboards while also working with PCIe 2.0 and PCIe 1.0. LED indicators provide real-time status updates of the SSD's operation.

Key features

• High-speed NVMe performance via PCIe 3.0 x4
• Supports M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors
• Compatible with PCIe 3.0, and backwards compatible with PCIe 2.0 and PCIe 1.0
• LED status indicator for real-time SSD activity updates
• Compact dimensions for easy installation

Specifications

• Brand: Ugreen
• MPN: CM302-70503
• Interface: NVMe Gen 3
• Input: M.2 M-Key
• Output: PCI-E 3.0X4
• Compatible Slots: PCI-E X4/X8/X16
• Supported Form Factors: 2230/2242/2260/2280 M.2 NVME SSD
• PCIe Compatibility: Backward compatible with PCIe 2.0 and PCIe 1.0
• Maximum Data Transfer Speed: up to 32Gbps
• Systems: Windows/Linux
• Product Dimensions: 13.8 x 12.3 x 2.5 cm
• PCI-E Bracket Length: 11.9cm

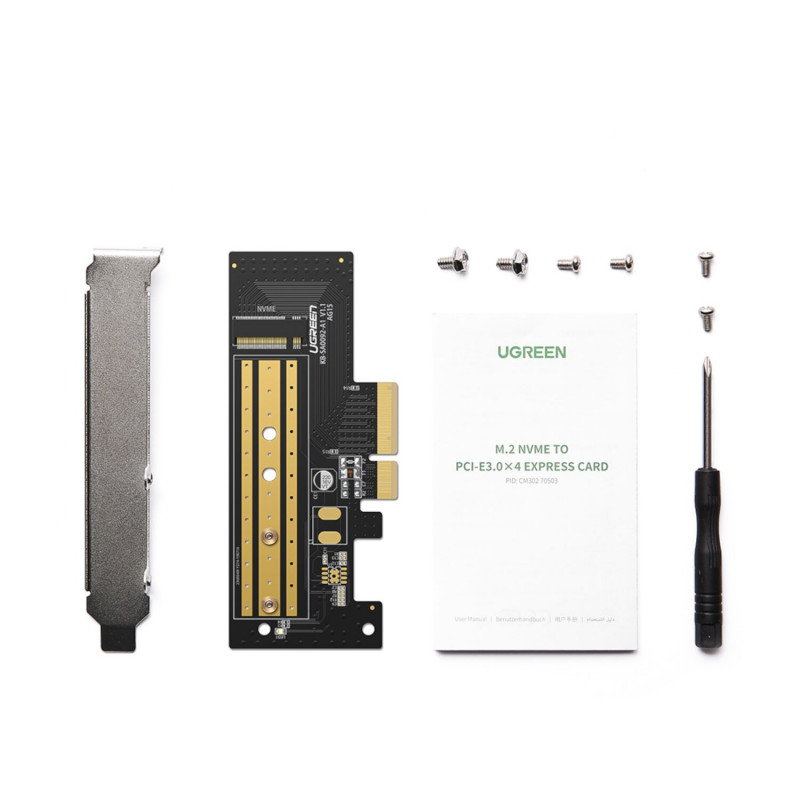

• In the box: UGREEN M.2 NVME to PCI-E3.0X4 Express Card x1
