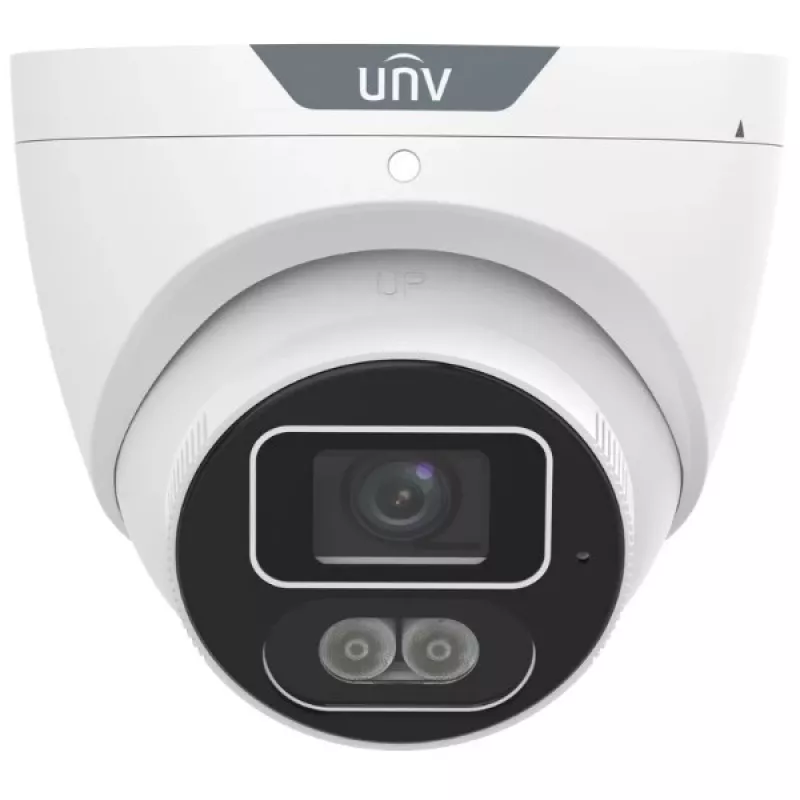

UNIVIEW IPC3614SB-ADF28KMC-I1 4MP Tri-Guard Wise-ISP IP-kamera, 2,8mm, IR 30m, Active Deterrence, IP67, IK10

The UNIVIEW IPC3614SB-ADF28KMC-I1 is a high-performance 4 Megapixel IP camera from the Tri-Guard series, featuring Wise-ISP technology for superior image quality. Designed for outdoor surveillance, it combines active deterrence with a built-in light and siren, two-way audio, and advanced analytics including human body detection. With a 2.8mm fixed lens providing a 101.1° horizontal field of view, 120dB True WDR, and IR night vision up to 30m, this camera delivers clear footage in challenging lighting conditions. Its rugged IP67 and IK10 ratings ensure reliability in harsh environments.

Advantages

Active deterrence with integrated light and siren helps prevent incidents before they escalate. Two-way audio enables real-time communication. Wise-ISP technology optimizes image processing for vibrant, detailed video. 120dB True WDR balances extreme contrasts. H.265 compression reduces bandwidth and storage costs. MicroSD card slot (up to 256 GB) provides local storage flexibility.

Suitable for

• Perimeter security for commercial and industrial sites
• Outdoor surveillance in parking lots, warehouses, and building entrances
• Retail stores requiring proactive security with audio intervention
• Residential properties needing robust weatherproof cameras

Key specifications

• Sensor: 1/3" Progressive Scan CMOS
• Resolution: 4 MP (2592 x 1520)
• Lens: 2.8mm fixed, F1.6
• Field of View: Horizontal 101.1°
• IR Distance: Up to 30m
• WDR: 120dB True WDR
• Video Compression: H.265, H.264, MJPEG
• Audio: Built-in mic and speaker, two-way
• Alarm: Light and siren (active deterrence)
• Storage: MicroSD slot (max 256 GB)
• Network: 1x RJ45 10/100 Base-TX
• Power: 12V DC, PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30°C to 60°C
• Smart Analytics: Intrusion, cross line, motion detection, audio detection, human body detection

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera at a height of 2.5-3m for best coverage of the detection zone.
