USB-keskitin EXSYS EX-1137

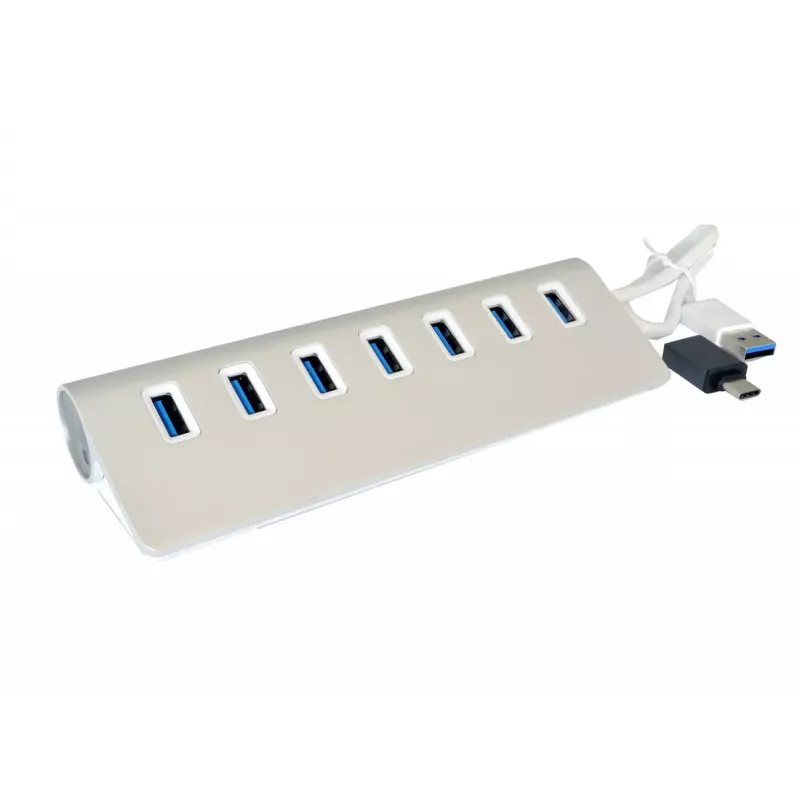

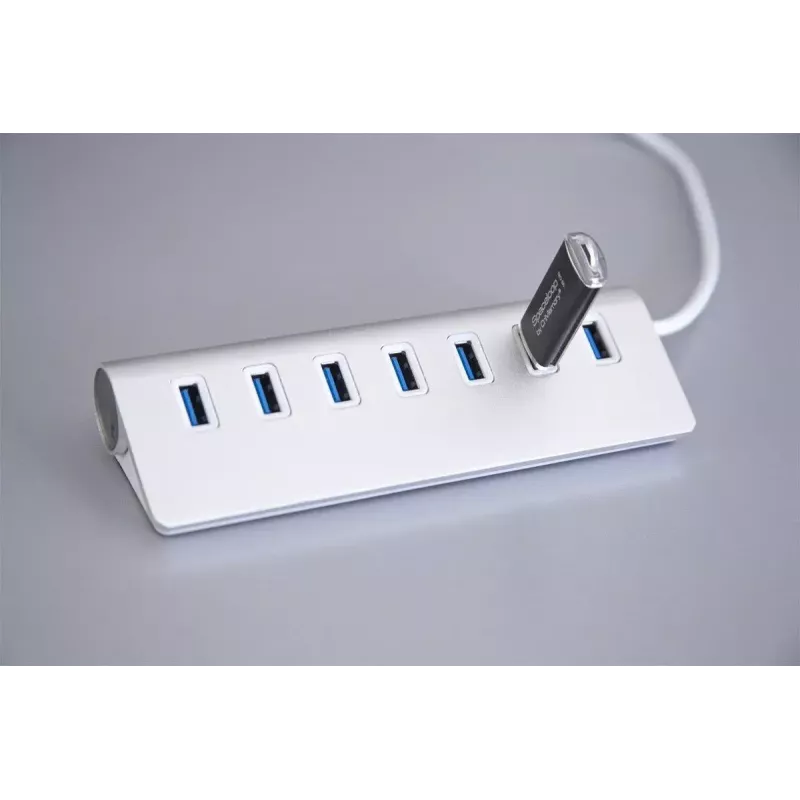

The EXSYS EX-1137 is a compact USB 3.2 Gen 1 (USB 3.0) metal hub that expands a single USB Type-A port into seven accessible Type-A ports. It supports connection of up to seven USB 2.0 or USB 3.2 Gen 1 devices and includes a 30 cm USB cable plus a C-male to A-female adapter for use with systems that have a USB-C port. The hub is bus-powered and can also be used with an optional 5V/1A power supply when additional power is required.

Advantages

The EX-1137 provides seven USB Type-A ports in a compact white metal housing, maintaining compatibility with both USB 2.0 and USB 3.2 Gen 1 devices. It supports automatic detection of connected device transfer rates and delivers data transfer speeds up to 5 Gbit/s when connected to a USB 3.2 Gen 1 host. The included USB cable and C-to-A adapter increase compatibility with laptops and desktops that have either Type-A or Type-C ports.

Suitable for

• Connecting multiple external peripherals (keyboards, mice, printers)
• Expanding USB ports for laptops and desktop computers
• Attaching USB storage devices and card readers
• Temporary setups where several USB devices are required simultaneously

Key specifications

• Model: EXSYS EX-1137
• Host interface: USB 3.2 Gen 1 (USB 3.0) Type-A
• Ports: 7 × USB Type-A (USB 2.0 / USB 3.2 Gen 1 compatible)
• Data rate: up to 5 Gbit/s (USB 3.2 Gen 1)
• Power: bus-powered or optional 5V/1A external supply
• Cable length: 30 cm (included)
• Colour: White
• Dimensions (W×D×H): 55 × 160 × 30 mm
• Weight: 0.3 kg

How to use

Connect the EX-1137 to a computer's USB Type-A port using the supplied 30 cm cable. If the host has a USB-C port, attach the supplied C-male to A-female adapter before connecting. Plug your USB peripherals into the hub's Type-A ports; the hub will automatically negotiate the appropriate data transfer rate for each device. If connected devices require more current than the host provides, connect an optional 5V/1A external power supply to ensure stable operation.

Recommendations

For optimal performance with high-speed storage devices, connect the hub to a USB 3.2 Gen 1 (5 Gbit/s) host port and avoid powering multiple high-draw devices simultaneously without the optional 5V/1A adapter.
