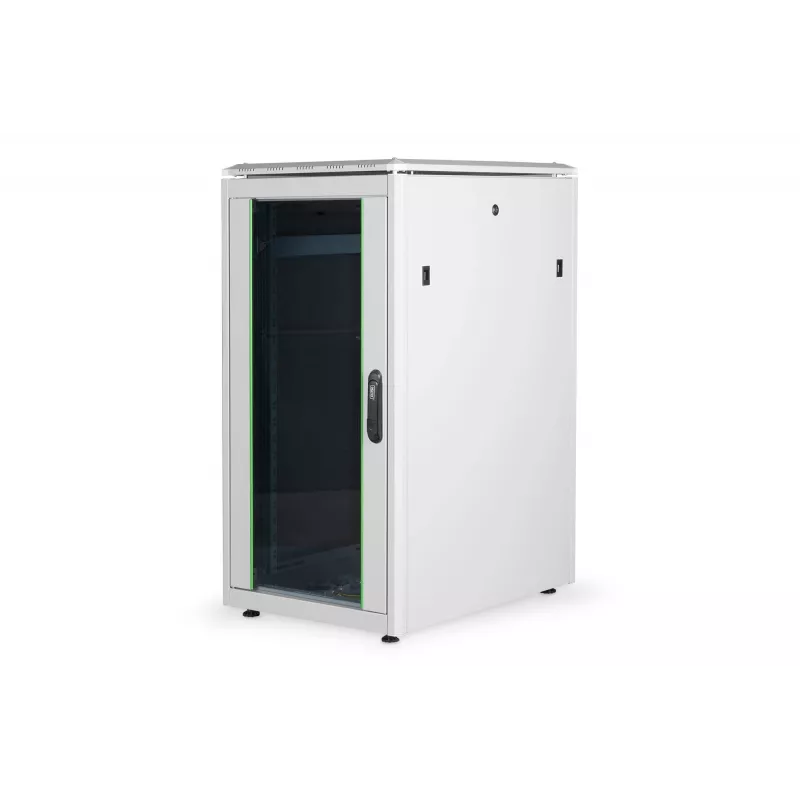

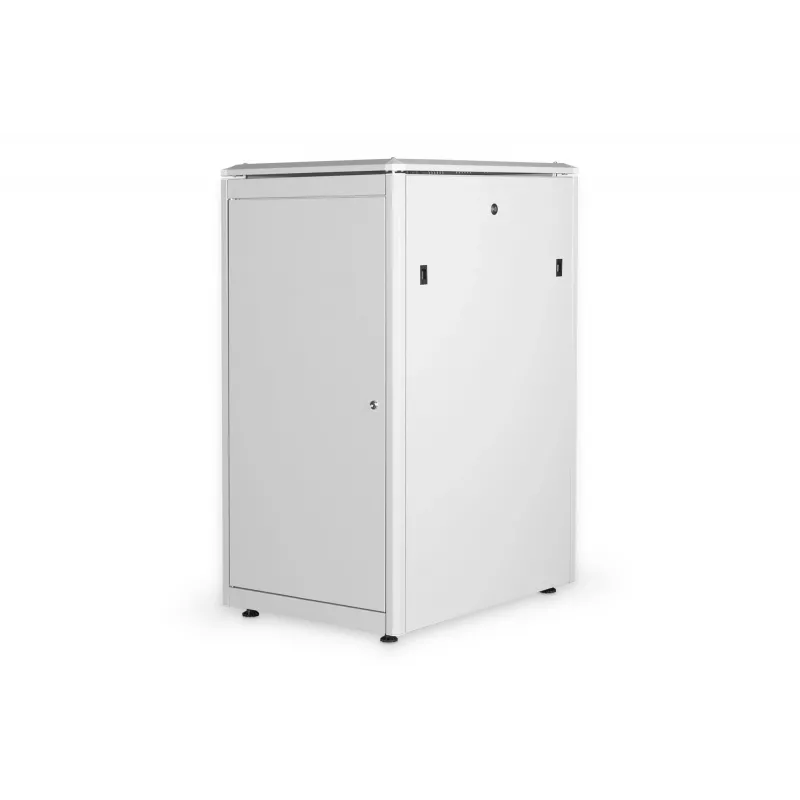

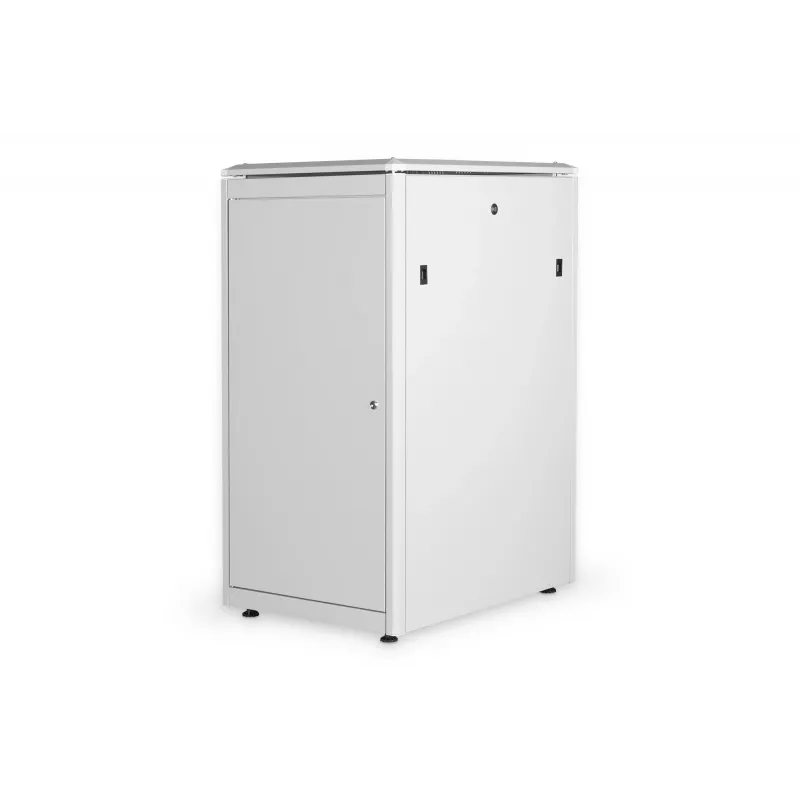

Vapaasti seisova räkki Digitus DN-19 22U-6/8-1

The DIGITUS® Unique freestanding network cabinet (DN-19 22U-6/8-1) is a 19" rack with dimensions 600 x 800 mm (W x D), 22U height and IP20 protection for indoor server rooms and offices. The cabinet is made of robust sheet steel (up to 1.5 mm) with an electrostatic powder coating in grey (RAL 7035). It is supplied assembled and can be fully dismantled if required.

Advantages

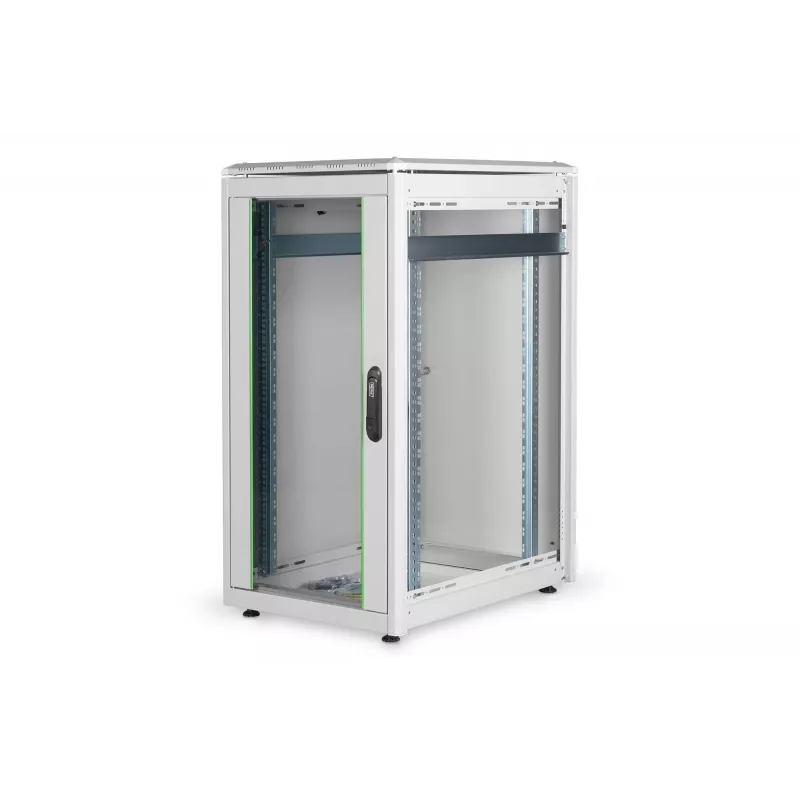

The design combines high load capacity and flexible cable management: 19" profile rails support heavy loads and are infinitely adjustable, the modular, openable base chassis with removable blind panels and generous cable inlets with brushes allow neat cable routing. The cabinet includes a swivel handle with a profile half-cylinder lock (key type 333) on the front door, removable and lockable side panels and doors, and a roof prepared for fan units with a removable cover. Two pairs of cranked, galvanized 19" profile rails are labelled with U markings readable from opposite directions.

Suitable for

• Server and network equipment in small to medium server rooms
• Office racks for switches, patch panels and UPS units
• Environments requiring structured cable management and secure access

Key specifications

• Brand: DIGITUS
• Model: DN-19 22U-6/8-1
• Rack size: 19"
• Capacity: 22U
• Dimensions (W x D): 600 x 800 mm
• Height: 1164 mm
• Load capacity (profile rails rated): up to 1200 kg (profile rails); cabinet max. supported equipment weight: 800 kg
• Material: Steel sheet up to 1.5 mm
• Colour: Grey (RAL 7035)
• Protection class: IP20 (indoor use)
• Front door lock: swivel handle with profile half-cylinder lock, key type 333

How to use

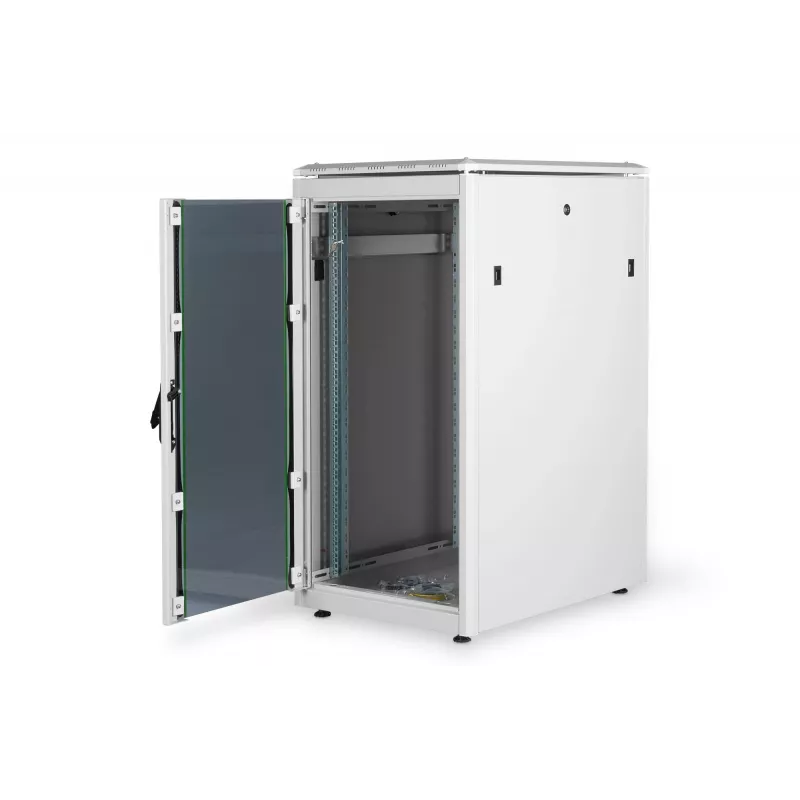

Place the freestanding DIGITUS network cabinet on a level floor in an indoor environment. Install equipment into the adjustable 19" profile rails and secure with appropriate rack screws. Route cables through the base cable inlets with brushes or the vertical cable ducts where provided. If additional ventilation is required, mount a fan unit in the prepared roof area and reattach the removable cover. Use the removable and lockable side panels and front door to access equipment for maintenance; the door lock uses key type 333.

Recommendations

For safe and reliable operation, distribute loads evenly across the profile rails, ensure adequate airflow and cooling for installed equipment, and secure all doors and panels when the cabinet is unattended. Use the cable management features to keep power and data cables separated and organized.
