Verkkokaapeli LANBERG Cat5e U/UTP LCU5-21CU-0305-BK, 305 m, 24 AWG, PVC-vaippa, musta

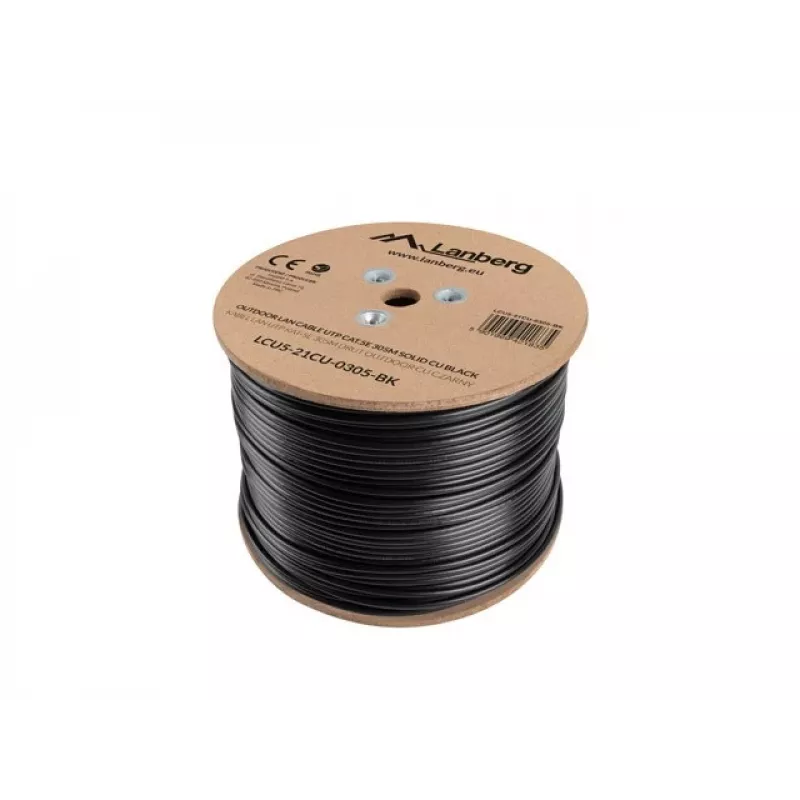

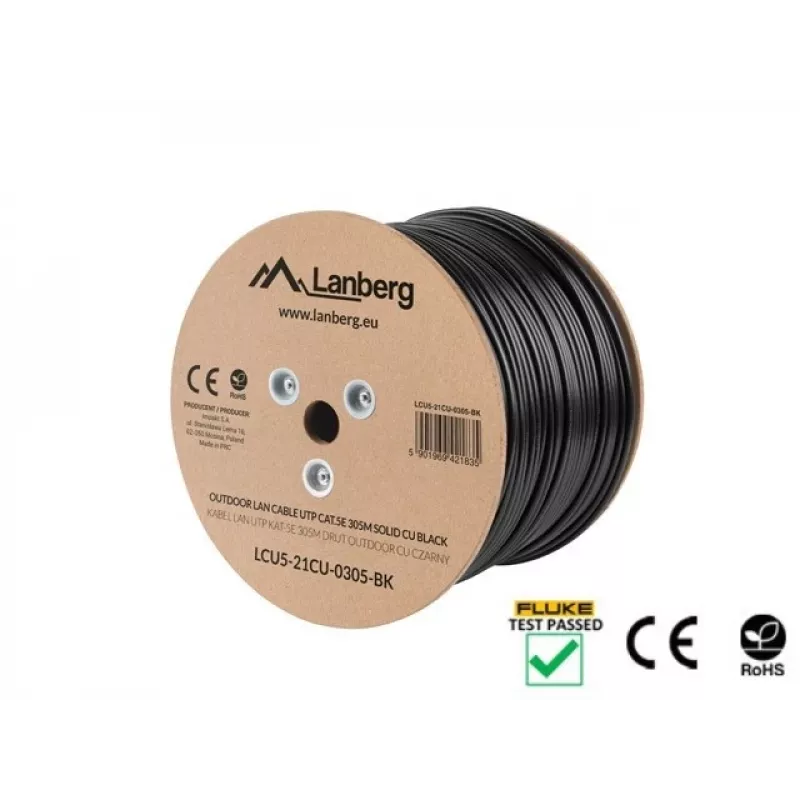

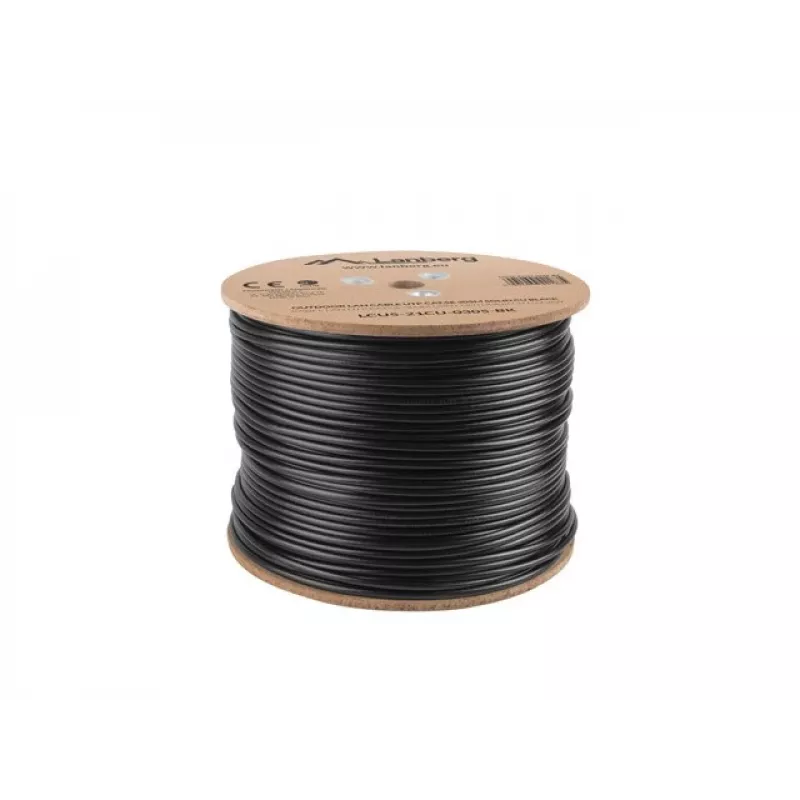

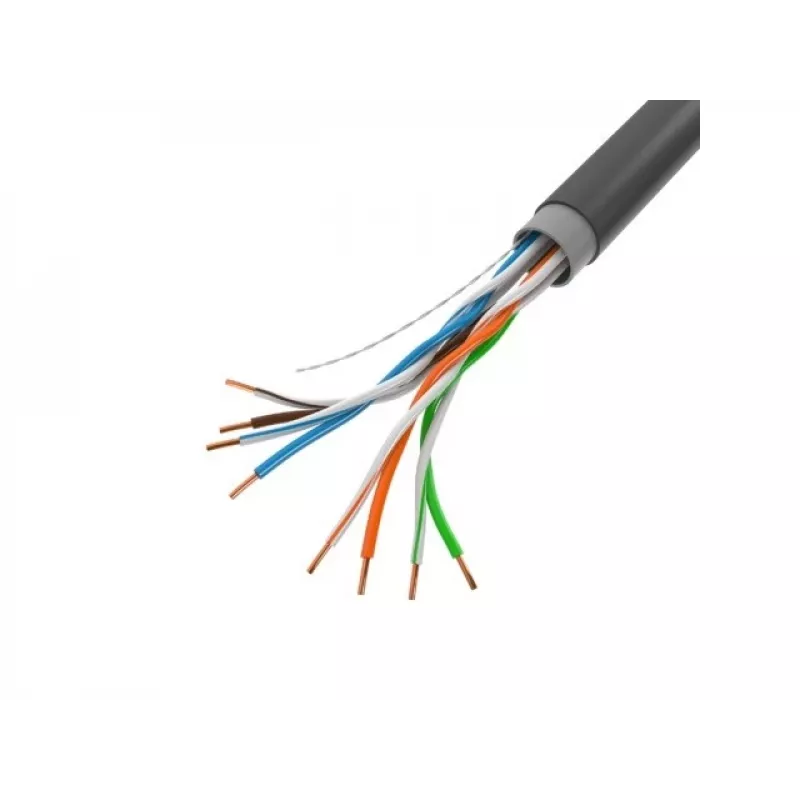

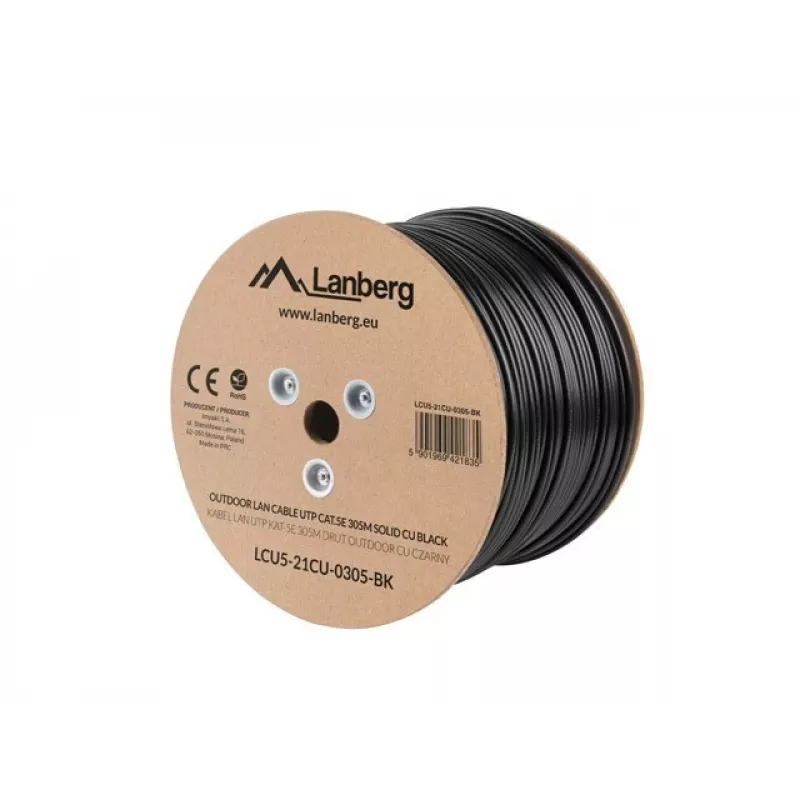

LAN cable category 5e UTP, unshielded, 305 m length on a wooden drum. The cable uses 100% pure copper conductors (AWG 24) with single-wire stranding and HDPE conductor insulation. Outer PE sheath is 5.0 mm thick and the cable is printed with a length counter every meter. Designed for data transmission up to 100 MHz and a working distance of 100 m; color: black.

Advantages

The Category 5e UTP design provides reliable unshielded Ethernet connectivity for typical LAN installations. Pure copper conductors ensure consistent electrical performance while the printed length marking simplifies installation and measurement. Sturdy PE outer sheath and wooden drum packaging facilitate storage and handling.

Key specifications

• Category: 5e UTP (Unshielded)
• Length: 305 m (wooden drum)
• Conductor material: CU 100% copper
• Conductor size and structure: AWG 24 (4*2*0.50 mm), single wire
• HDPE conductor insulation thickness: 0.88 mm
• External PE insulation diameter: 5.0 mm
• Printed length counter: every meter
• Operating frequency: up to 100 MHz
• Recommended connector/guide diameter for braided cables: 1.0 mm
• Packaging dimensions (W x D x H): 35 x 35 x 25 cm
• Direct-current resistance (20°C): ≤9.1 Ω / 100 m
• Pair-to-ground capacitance (20°C): ≤160 pF / 100 m
• Characteristic impedance: 100 Ω ±15 Ω
• Operating temperature: -20 °C to 75 °C
• Transport and storage temperature: 0 °C to 60 °C
• Working distance: 100 m

How to use

Install the cable according to standard Ethernet installation practices for UTP Category 5e: route the cable from the wooden drum, cut to required length using the printed meter markings, strip the outer PE sheath and the HDPE conductor insulation as needed, and terminate with compatible RJ45 connectors using crimping or punch-down tools. Maintain separation from strong electrical sources and avoid sharp bends to preserve signal integrity.

Recommendations

For optimal performance keep individual cable runs within the 100 m working distance, avoid exposure to temperatures outside the specified operating range, and use connectors and patch panels rated for Cat5e.
