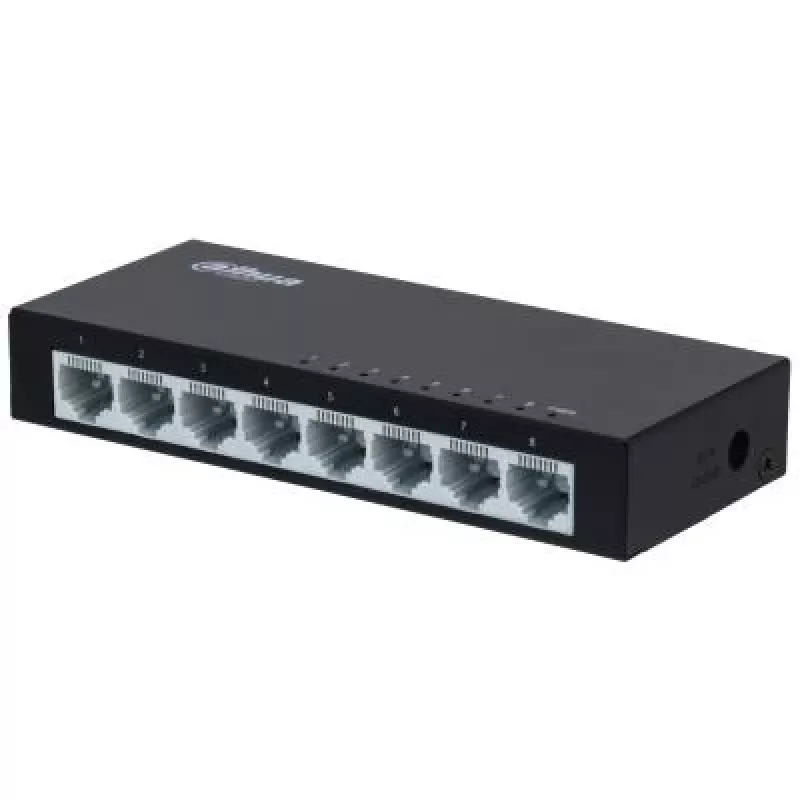

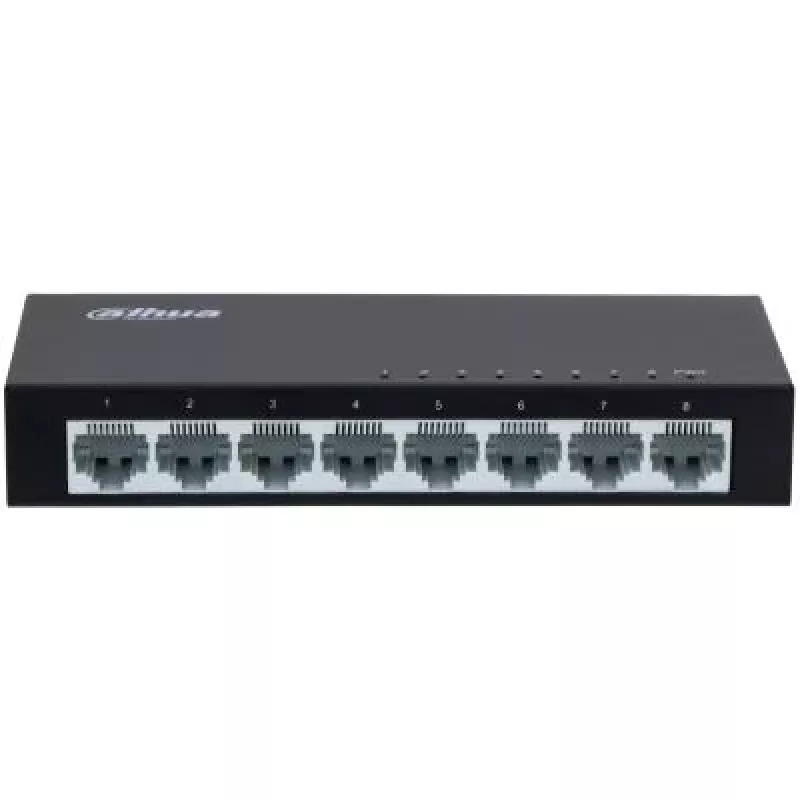

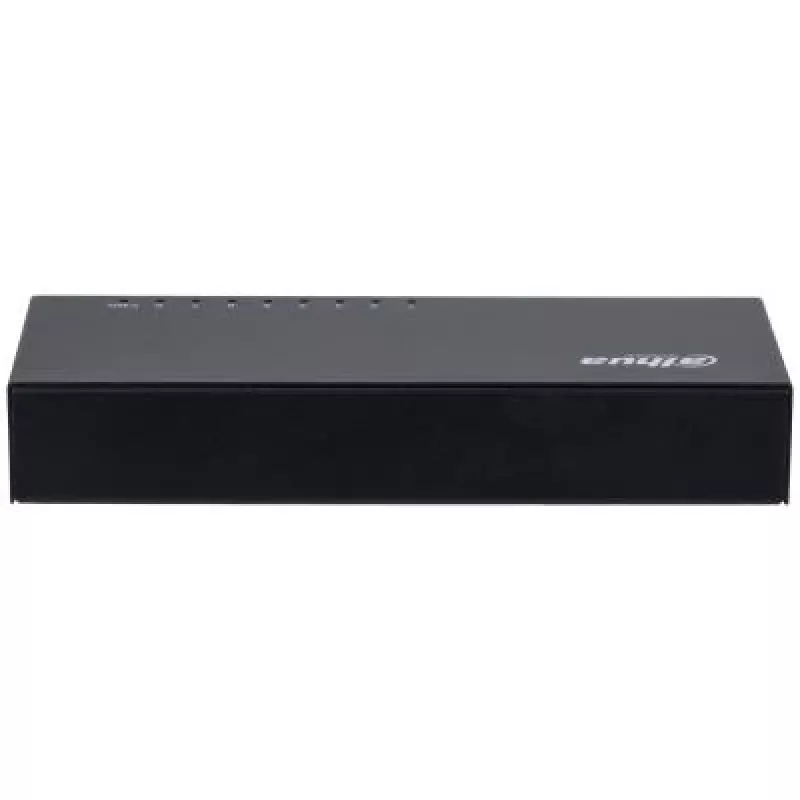

Verkkokytkin DAHUA SF1008-EUR 8-porttinen 10/100 Mbit/s hallitsematon

DAHUA SF1008-EUR is an unmanaged 8-port 10/100 Mbps network switch designed for straightforward LAN expansion. The compact device supplies eight Fast Ethernet ports for connecting IP cameras, computers, printers and other network equipment without requiring configuration, providing plug-and-play connectivity for small offices, retail outlets and home networks.

Advantages

The switch offers a switching capacity of 1.6 Gbps and a forwarding rate of 1.1904 Mpps, enabling basic traffic handling for small local networks. With an operating temperature range from 0 °C to +45 °C and compact dimensions (133.5 mm × 56.0 mm × 22.0 mm), it is suitable for cramped installations. As an unmanaged device it requires no setup and weighs 0.23 kg, simplifying deployment.

Suitable for (tasks / use cases)

• Expanding LAN ports for small offices
• Connecting IP surveillance cameras and NVRs
• Home networks and multimedia devices
• Retail or POS network extensions

Key specifications

• Brand: DAHUA
• Model: SF1008-EUR
• Ports: 8 × 10/100 Mbps Fast Ethernet
• Switching capacity: 1.6 Gbps
• Forwarding rate: 1.1904 Mpps
• Operating temperature: 0 °C to +45 °C
• Dimensions: 133.5 mm × 56.0 mm × 22.0 mm
• Net weight: 0.23 kg
• Unmanaged, plug-and-play operation
• MPN: SF1008-EUR, EAN: 6923172590466

How to use

Place the DAHUA SF1008-EUR on a stable surface or mount it where space allows, connect the power adapter and link devices using standard Ethernet cables to the 10/100 Mbps ports. Devices will automatically negotiate link speed and start communicating; no configuration is necessary. Monitor connected devices from your existing network equipment (routers, NVRs or workstations) as required.

Recommendations

Install the switch in a ventilated area within the specified operating temperature range (0 °C to +45 °C). Use CAT5e or better cables for reliable 100 Mbps connections and place the unit away from heat sources or moisture. For networks requiring managed features, VLANs or PoE, consider a managed or PoE-capable switch instead of this unmanaged model.
