Verkkolähetin ja -vastaanotin PLANET LRE-101 1-portti 10/100TX musta 1200m

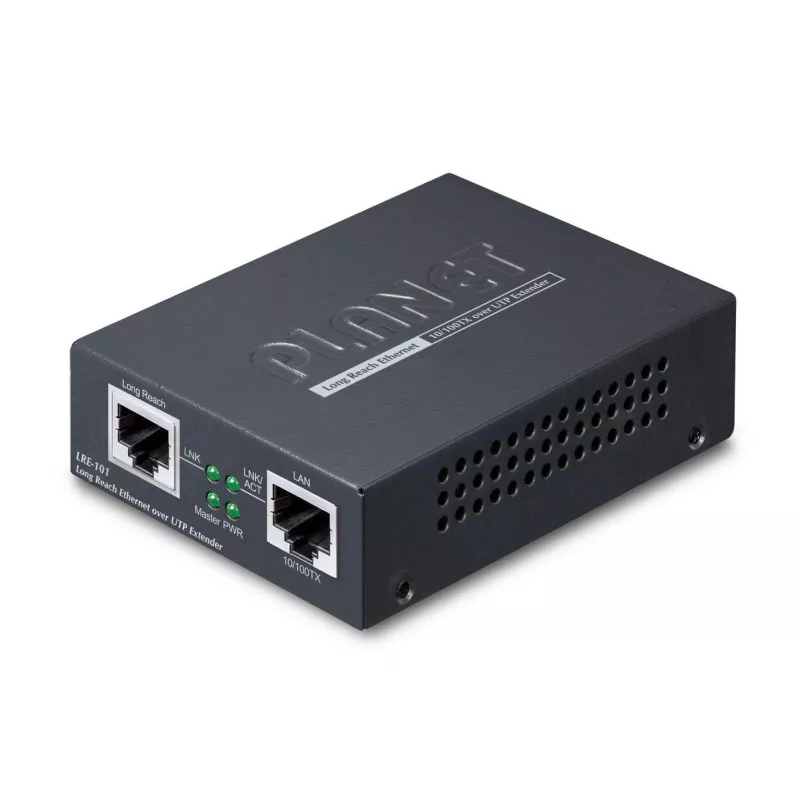

The PLANET LRE-101 is a compact Ethernet over UTP extender in a metal housing that converts and extends 10/100BASE-TX Ethernet signals over existing UTP or phone wires. It provides one 10/100TX RJ45 port and one UTP RJ45 connector and supports full-duplex throughput up to 100 Mbps, enabling extension of Ethernet links up to 700 m over Cat.5e UTP and up to 1200 m over phone wire. Its small size and low power consumption make it suitable for retrofitting IP devices on existing cabling without installing new network cabling.

Advantages

The LRE-101 supports long-distance Ethernet transmission over existing UTP or telephone wiring, reducing the need for new cable installation. It offers simple point-to-point operation with selectable Master/Slave modes via a DIP switch, low power consumption (approximately 1.55 W in full operation) and a durable metal chassis that can be used standalone or installed in compatible PLANET media converter chassis. The device is compact and suitable for wall or DIN-rail mounting and is compatible with common IP devices such as IP cameras, wireless access points, NVRs and digital signage.

Suitable for

• Extending Ethernet to long-distance IP cameras
• Connecting wireless access points over existing wiring
• Linking NVRs and digital signage using existing UTP or phone wires
• Migrating from analog systems to IP networks without re-cabling

Key specifications

• Model: PLANET LRE-101
• Ports: 1 x 10/100 BASE-TX RJ45, 1 x UTP RJ45 connector
• Maximum transfer distance: up to 700 m (Cat.5e UTP), up to 1200 m (phone wire)
• Throughput: full-duplex up to 100 Mbps
• Power consumption: ≈1.55 W (full operation)
• Dimensions (W x D x H): 97 mm x 70.3 mm x 26 mm
• Weight: 0.189 kg
• Colour: Black
• Mounting: standalone, DIN-rail or wall mount; compatible with PLANET MC-700 / MC-1500 chassis

How to use

Install a pair of LRE-101 units for a point-to-point link: set one unit to Master mode and the other to Slave mode using the built-in DIP switch. Connect the Ethernet device (for example an IP camera or access point) to the 10/100TX RJ45 port on one unit and connect the existing UTP or phone wire to the UTP RJ45 connector to carry the signal to the remote unit. At the receiving end, connect the remote unit’s 10/100TX port to the destination device. Optionally install the units into a PLANET media converter chassis to provide centralized DC power and chassis-based mounting.

Recommendations

For reliable performance, test the existing cable quality and select Cat.5e UTP or phone wire according to the required distance. Use Master/Slave pairing for point-to-point links and avoid mixing modes in multi-drop scenarios. Consider using the PLANET media converter chassis if centralized power or rack/DIN-rail installation is needed.
